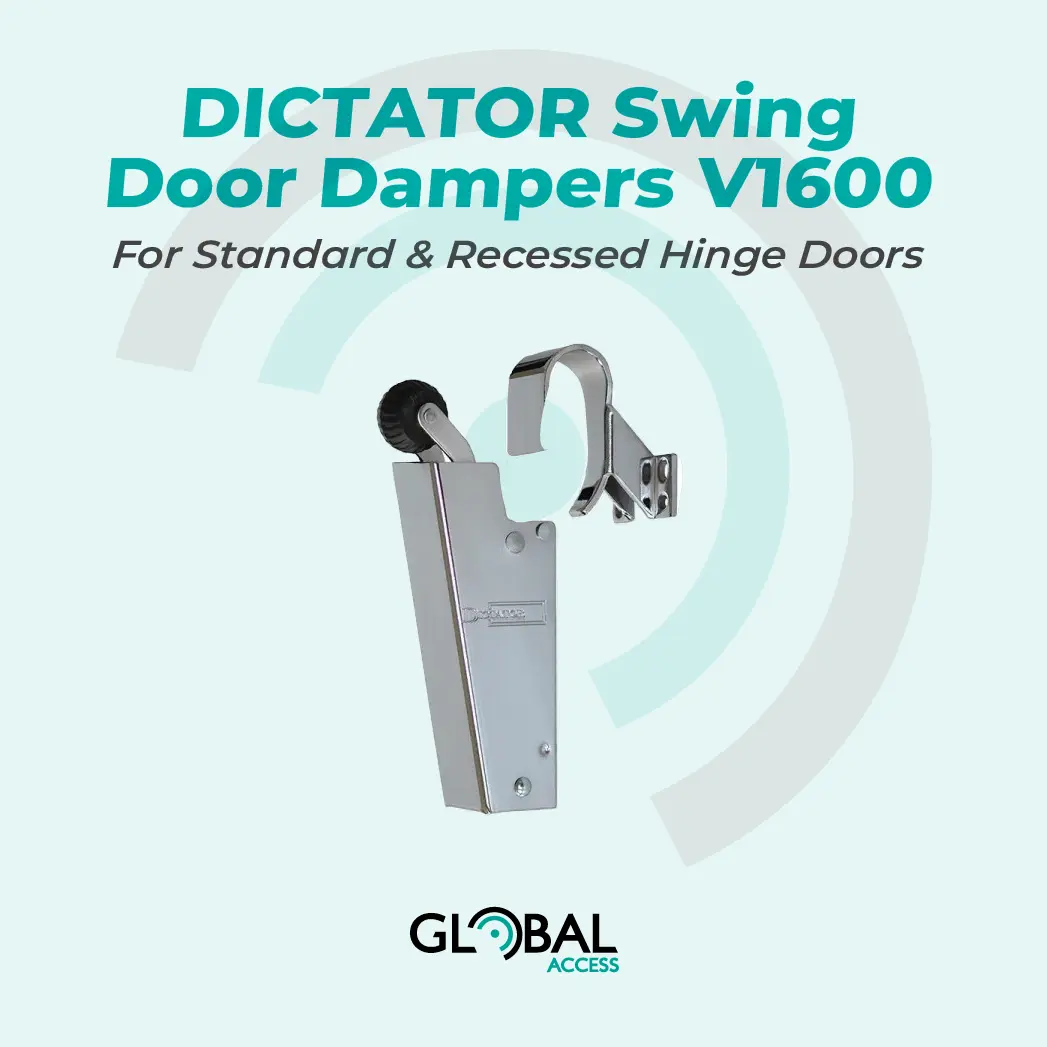

DICTATOR Swing Door Dampers for Standard & Recessed Hinge Doors (V1600)

DICTATOR Swing Door Dampers for Standard & Recessed Hinge Doors, with 1011 (for Recessed Doors) OR 1009 Hook (for Flush Doors).

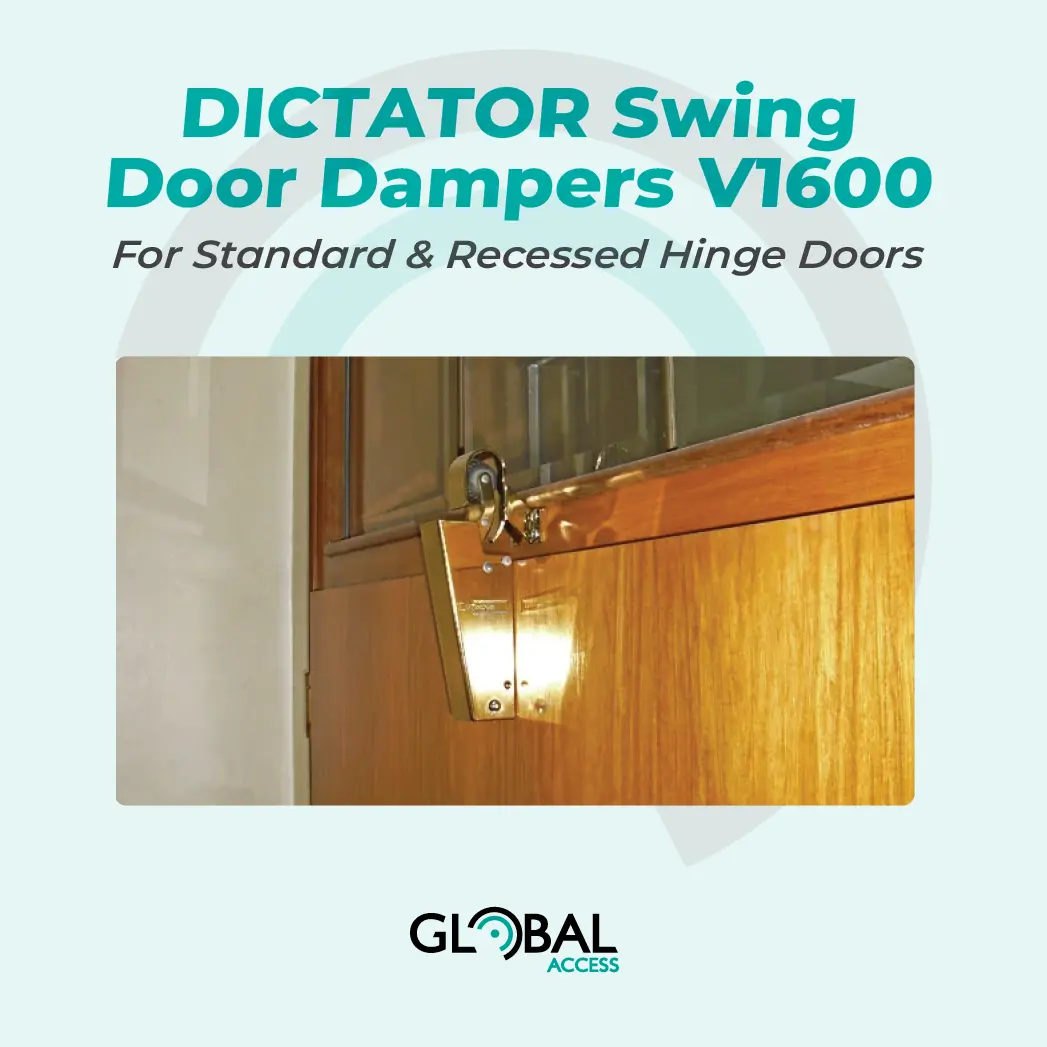

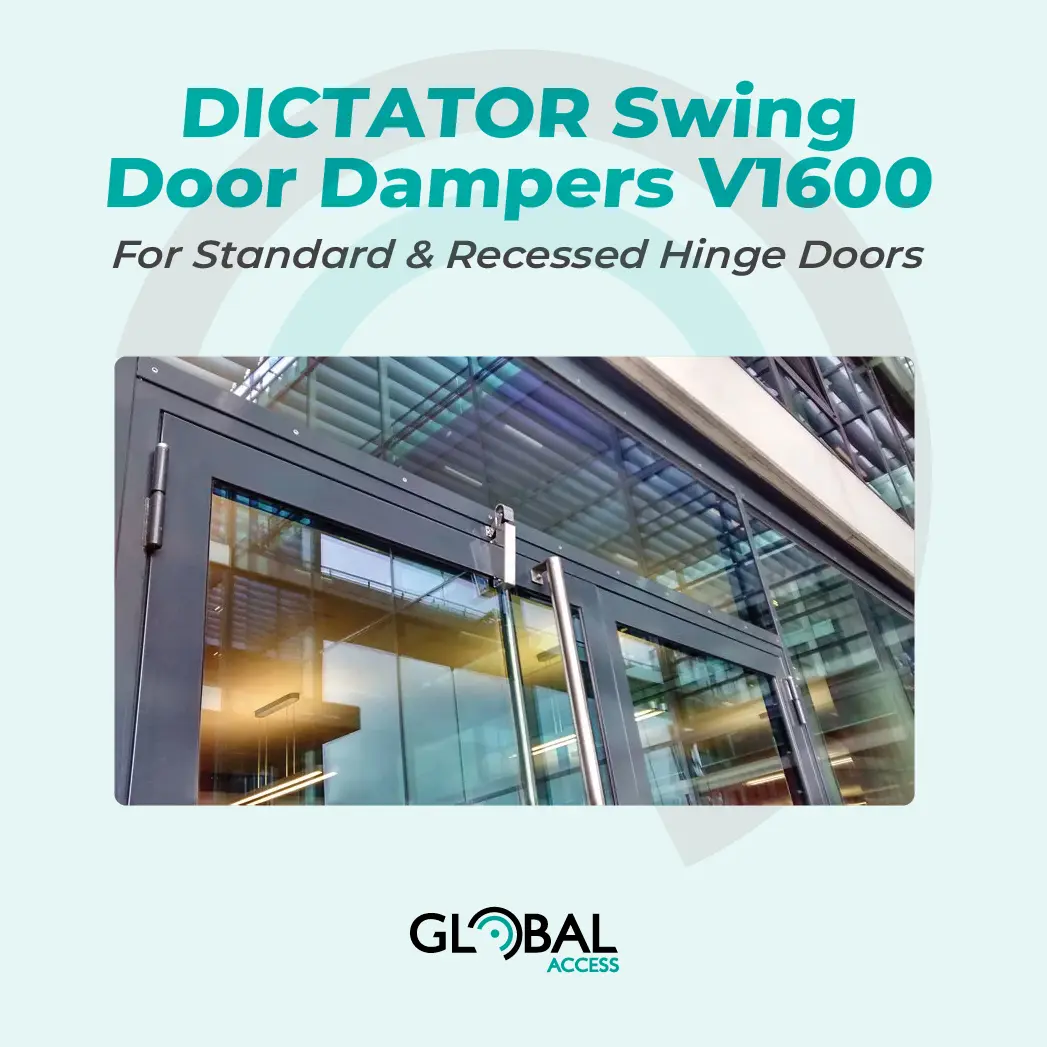

For use on interior and exterior doors, including fire-protection doors.

• Slows down the speed of a shutting door
• Gently and Smoothly pulls the door into the closed position
• Tested for use on fire-protection doors
• Chrome plated body

Available in the following variations:

• 1018-0141 – Standard Hinge – V1600, Satin Chrome, Closing Force: 50N – 1009 Hook
• 1018-0145 – Standard Hinge – V1600, Stainless Steel with Zinc Plated Cylinder, Closing Force: 80N – 1009 Hook
• 1018-0144 – Standard Hinge – V1600 Horiz. Mount, Stainless Steel with Zinc Plated Cylinder, Closing Force: 80N – 1009 Hook
• 1018-0142 – Standard Hinge – V1600, Stainless Steel with Stainless Steel Cylinder, Closing Force: 50N – 1009 Hook
• 1018-0143 – Standard Hinge – V1600 Horiz. Mount, Stainless Steel with Stainless Steel Cylinder, Closing Force: 50N – 1009 Hook
• 1018-0166 – Standard Hinge – V1600 Horiz. Mount, Stainless Steel with Stainless Steel Cylinder, Closing Force: 20N – 1009 Hook
• 1018-0167 – Recessed Hinge – V1600 Horiz. Mount, Satin Chrome, Closing Force: 20N – 1011 Hook
• 1018-0168 – Recessed Hinge – V1600 Horiz. Mount, Satin Chrome, Closing Force: 50N – 1011 Hook

NOTES:

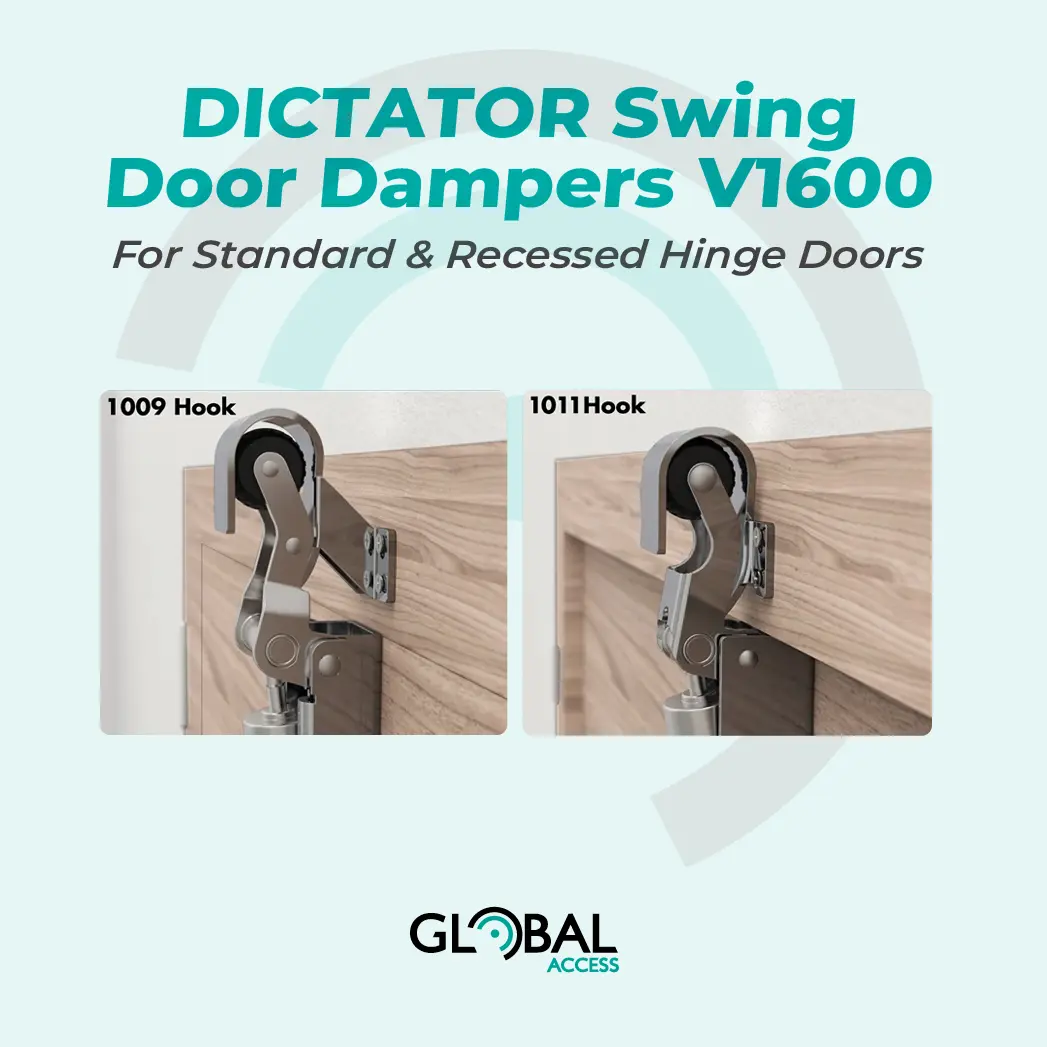

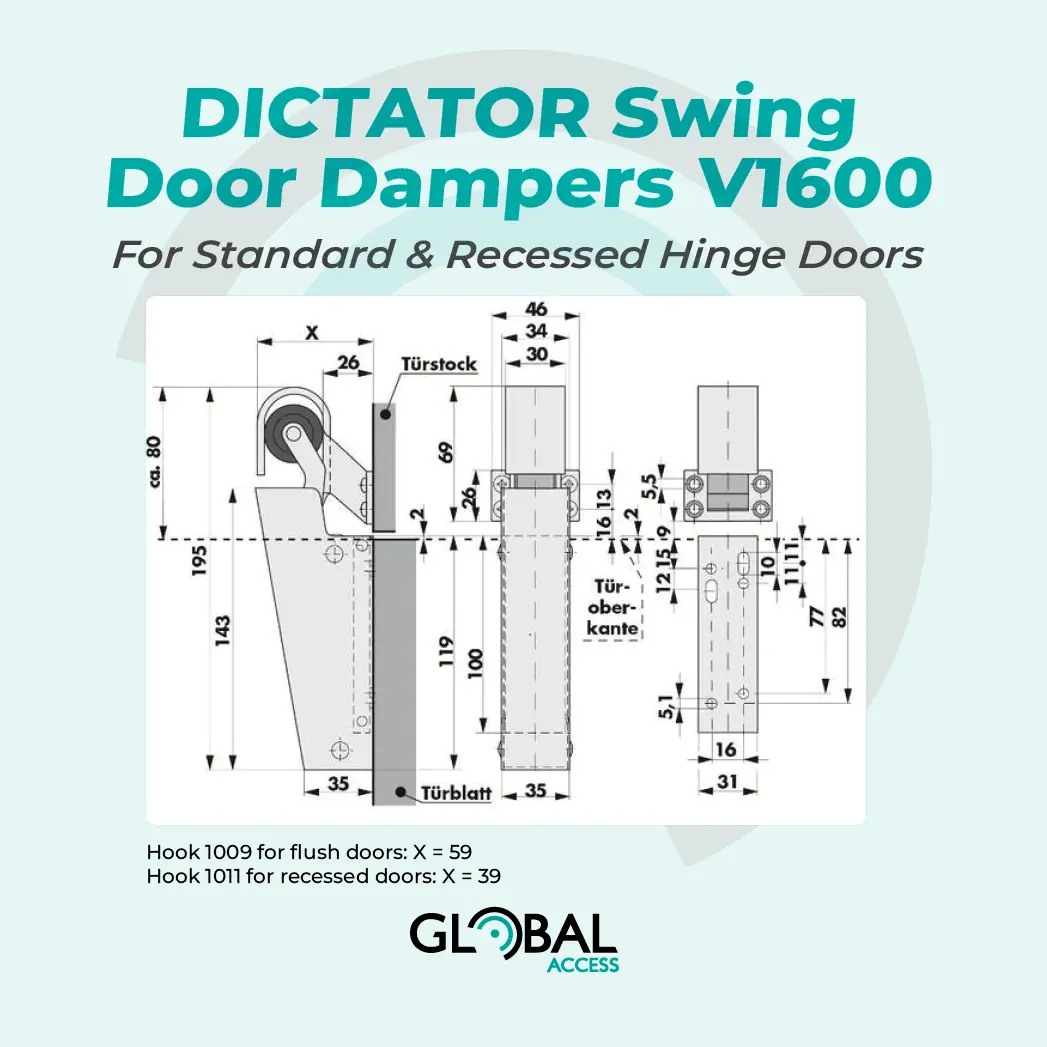

• Hook 1009 is for Flush Doors (-4 to +14mm)
• Hook 1011 is for Recessed Doors (-4 to -20mm)
