DICTATOR VS 2000 Door Dampers for Flush + Overlapping Doors

DICTATOR VS2000 swing door damper suitable for OVERLAPPING & FLUSH doors.

Creates a soft close effect preventing the door from slamming shut.
For use on interior and exterior doors, including fire-protection doors for left opening and right opening hinged doors, flush and overlapping doors

• Compact form: When the door is closed, the door damper and the hook look like a single unit
• Suitable for overlapping and flush doors
• Robust construction: Thanks to its casing, the hook is extremely resistant
• Suitable for a wide range of door types and installation situations thanks to to its closing force from 20 to 115 N
• Slows down the speed of a shutting door
• Gently and Smoothly pulls the door into the closed position
• Tested for use on fire-protection doors

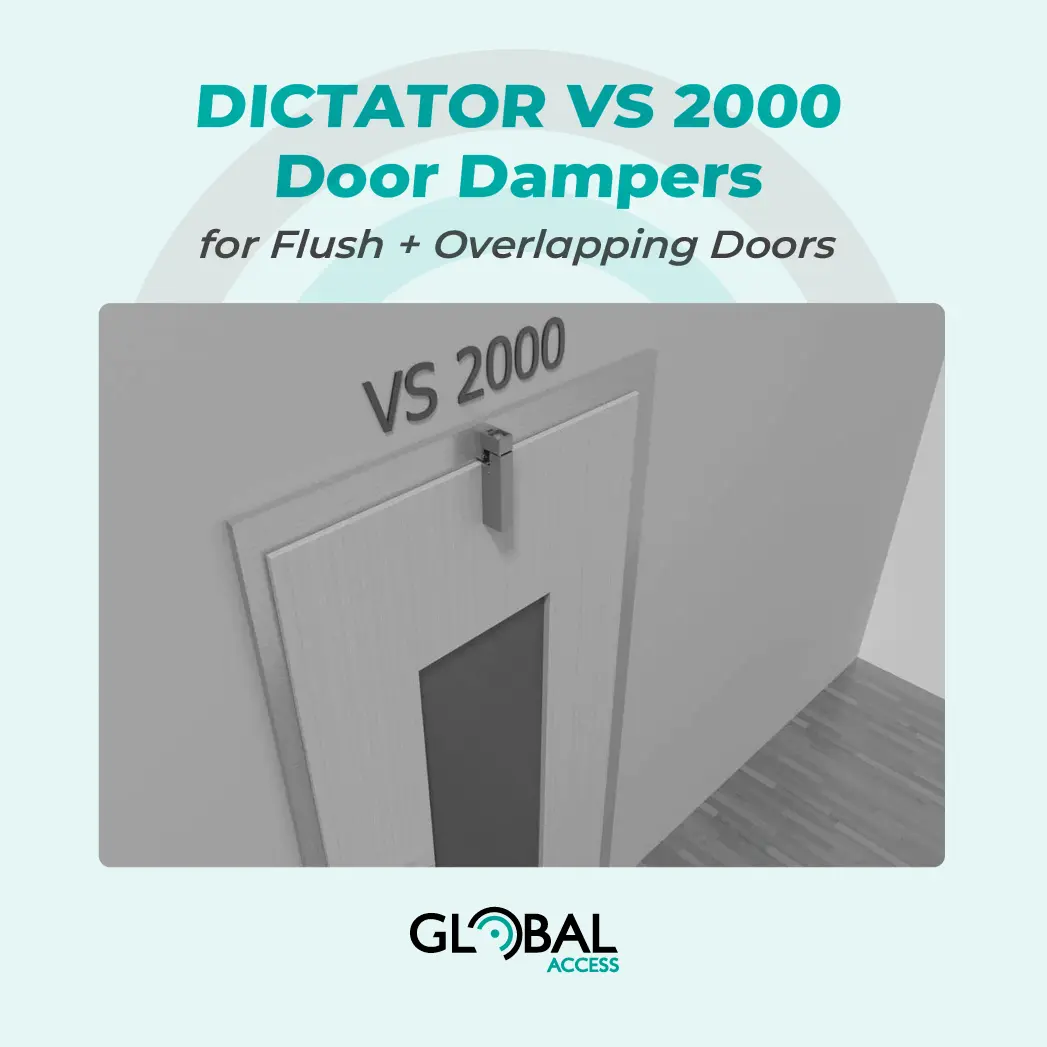

• Usually mounted vertically in the centre of the door face. 20N, 35N and 50N versions can also be mounted horizontally

• Pull-Side of the door installation only
• Optional Mounting plates for horizontal installation on aluminum OR flush doors is available

Available in the following variations:

• 1018-0057 – Chrome Plated, Closing Force: 20N
• 1018-0058 – Satin Chrome, Closing Force: 35N
• 1018-0059 – Black, Closing Force 50N

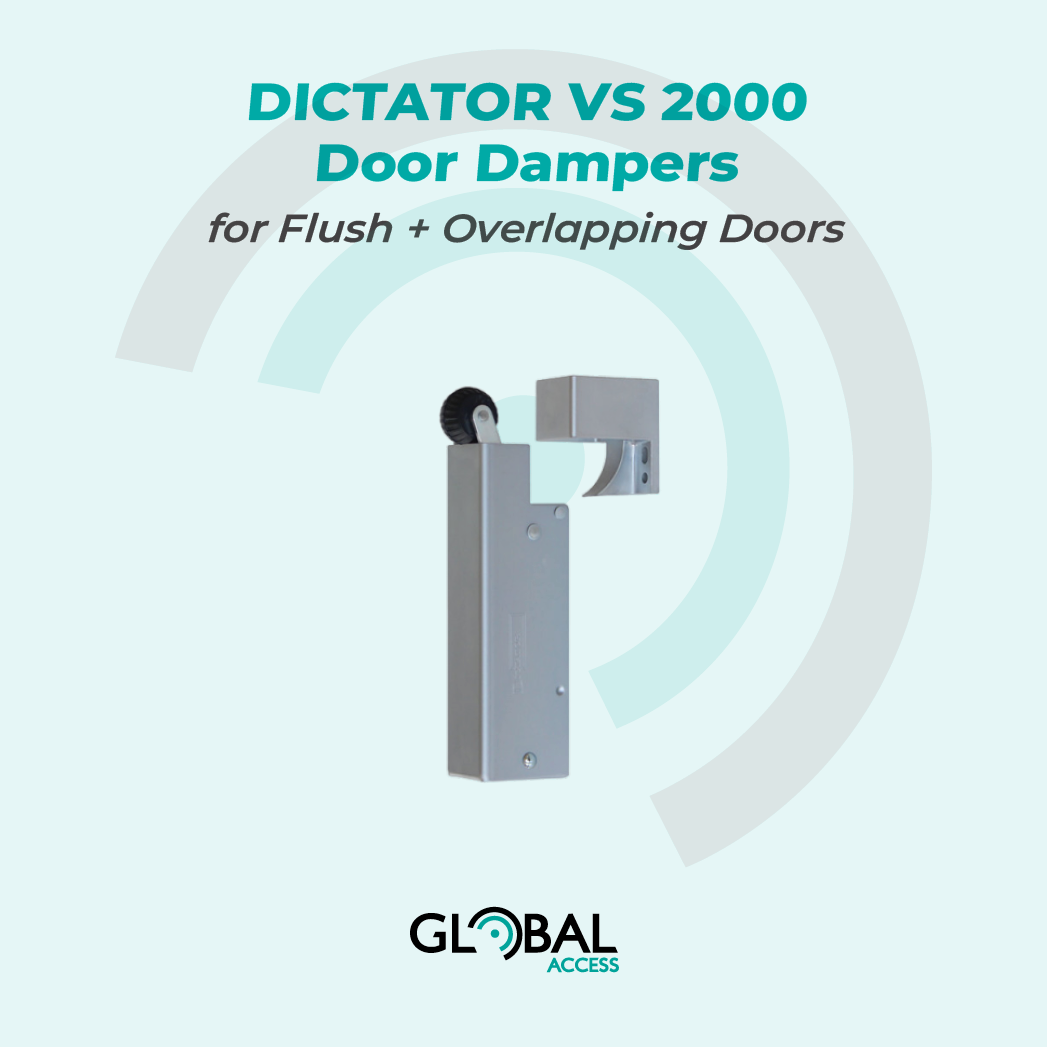

• 1018-0162 – Satin Chrome, Closing Force: 50N

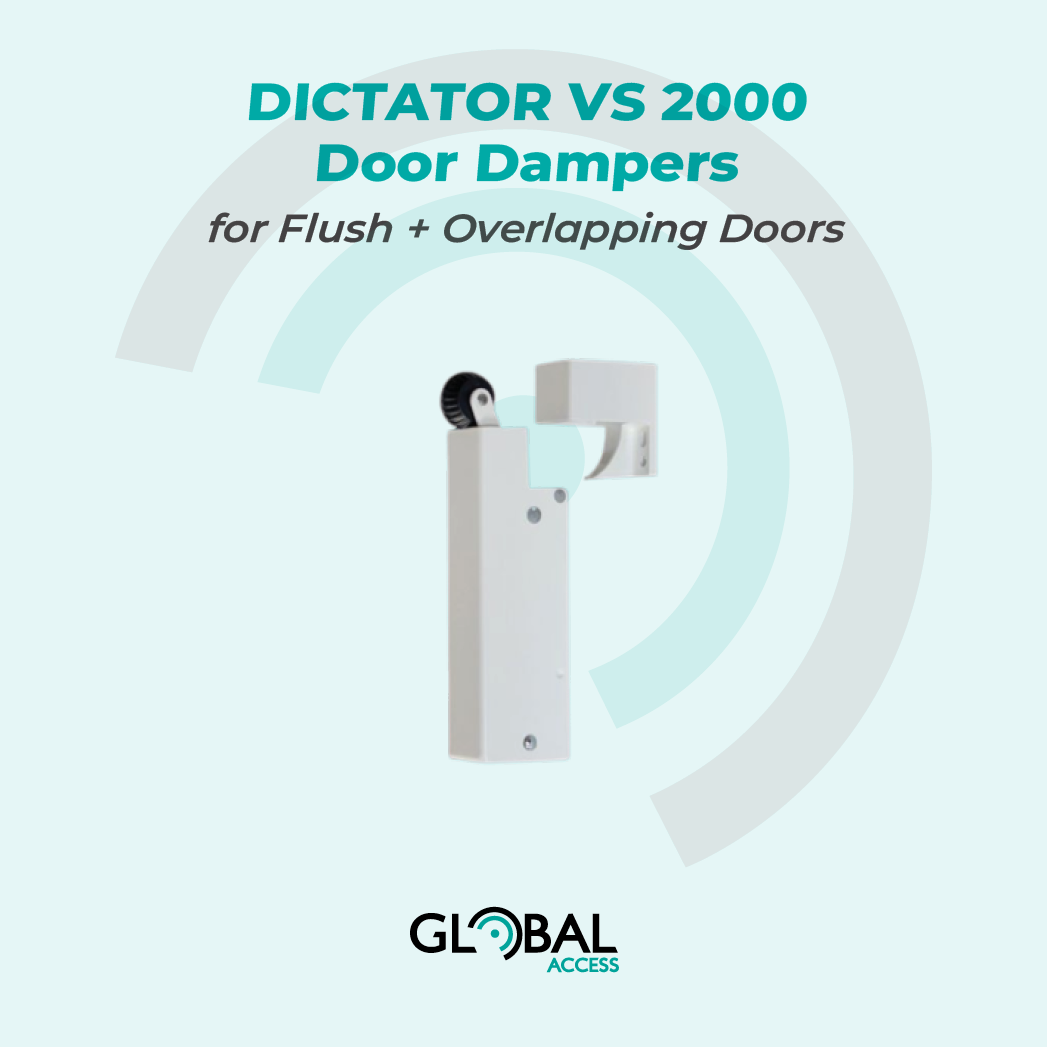

• 1018-0060 – White, Closing Force: 80N
• 1018-0061 – Satin Chrome, Closing Force: 115N

Optional Mounting Plates/ Brackets:

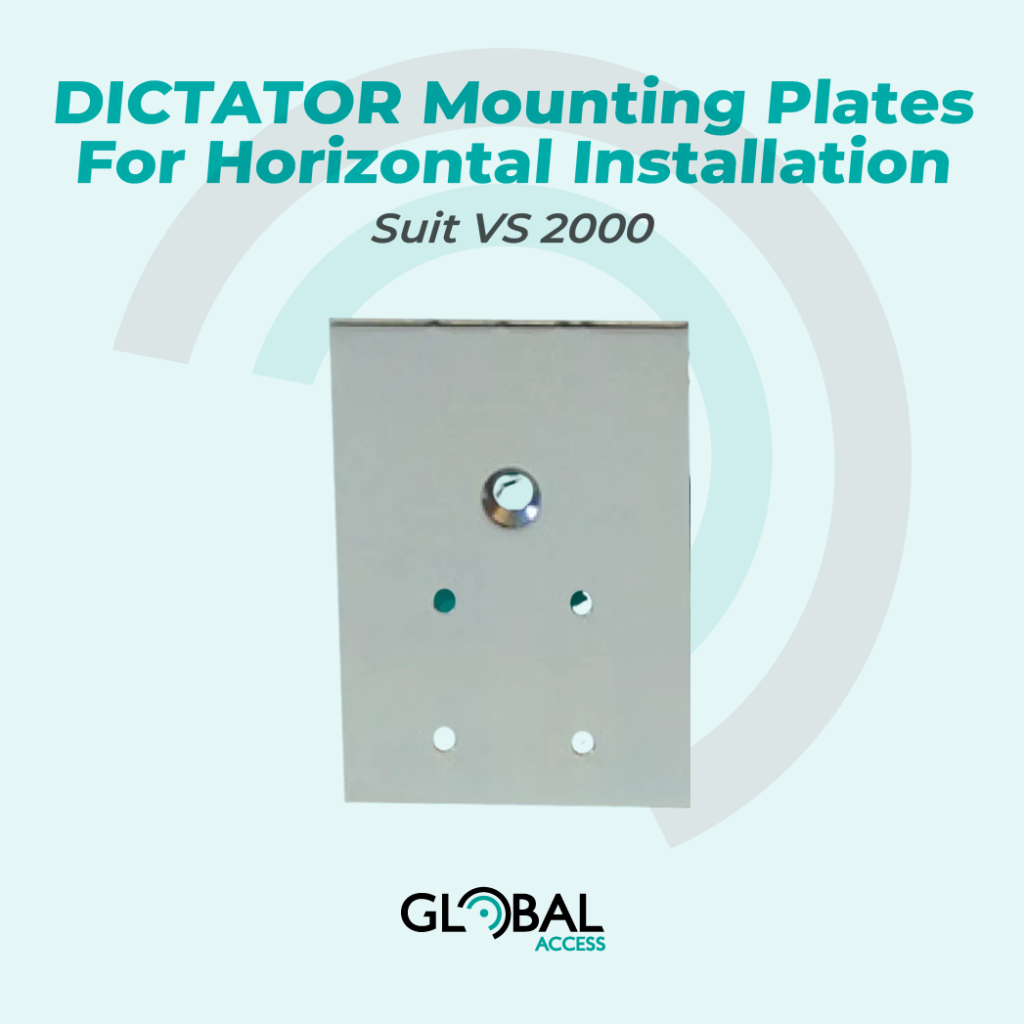

• 1018-0163 – Mounting Plate for Horizontal installation of VS 2000 Door Dampers
• 1018-0164 – Mounting Bracket for Horizontal installation of VS 2000 Door Dampers on Flush Doors
