Build Your SOMMER
Garage Door Package
Premium Security
Smart Technology
Seamless Integration
Choose Your operator
Residential
German Reliability
Direct Drive Technology
Easy to Install
Sommer’s Base+ Operator
- Roof Mounted GPO
- Residential Application
- Roof-Mounted Control Unit
- Single Door, Double Door & Oversized
- Intelligent, responsive control technology
- Low wear and robust build
- Powerful traveling motor
- Extremely low power consumption
- Partial opening options
- Light control with LED lighting in traveling operator
- Forced entry detection, generating counter-pressure with high self-locking force during vandal attempts
The base+ is SOMMER’s advanced garage door control unit with various optimised speed profiles and the option of precision setting of the operating forces. The system continuously learns automatically and adjusts the door operation accordingly.
Technical Data
Max Door Weight 120KG
Max Speed 240mm per sec
Max Pull/Push Force 600N
Sectional Door – Max Door Width 4500mm
Sectional Door – Max Door Height 2500mm
Max Door Weight 160KG
Max Speed 210mm per sec
Max Pull/Push Force 800N
Sectional Door – Max Door Width 6000mm
Sectional Door – Max Door Height 2500mm
Max Door Weight 200KG
Max Speed 180mm per sec
Max Pull/Push Force 1100N
Sectional Door – Max Door Width 8000mm
Sectional Door – Max Door Height 2500mm
- Environmental Friendly: In power saving mode, consumption is less than 1 watt, resulting in inexpensive operation.
- The integrated emergency release allows the motor carriage to be engaged or disengaged in any position, and for emergency egress in event of power failure.
- Intelligent control technology - self learning, adapting required force to external conditions for reliable operation
- Integrated LED lighting is equipped with 6 individual LED’s, ensuring optimum lighting during gage door travel
- In the event of power failure, the operator can be run in emergency mode with an optional backup battery (ACCU)
- Universal with various door types, suited for sectional doors, overhead doors, up-and-over doors, side-opening sectional doors etc.
SOMMER Base+ Garage Door Openers
Sommer’s Pro+ Operator
- Wall Mounted GPO
- Residential Application
- Intelligent, responsive control technology
- Low wear and robust build
- Powerful traveling motor
- Extremely low power consumption
- Partial opening options
- Light control with LED lighting in traveling operator
- Forced entry detection, generating counter-pressure with high self-locking force during vandal attempts
- Separate control unit that can be installed on the ceiling or wall
- Integrated open/close buttons on the control unit for convenience
- Enables easy transition when replacing a roller door with a sectional door
The SOMMER pro+ combines our advanced garage door control unit with the flexibility of a separate control unit housing, which can be installed on the wall or ceiling (meaning existing sockets can be used). The control unit also includes an integrated button for additional convenience when triggering the garage door.
Technical Data
Max Door Weight 160KG
Max Speed 210mm per sec
Max Pull/Push Force 800N
Sectional Door – Max Door Width 6000mm
Sectional Door – Max Door Height 2500mm
Max Door Weight 200KG
Max Speed 180mm per sec
Max Pull/Push Force 1100N
Sectional Door – Max Door Width 8000mm
Sectional Door – Max Door Height 2500mm
- Environmental Friendly: In power saving mode, consumption is less than 1 watt, resulting in inexpensive operation.
- The integrated emergency release allows the motor carriage to be engaged or disengaged in any position, and for emergency egress in event of power failure.
- Intelligent control technology - self learning, adapting required force to external conditions for reliable operation
- Integrated LED lighting is equipped with 6 individual LED’s, ensuring optimum lighting during gage door travel
- In the event of power failure, the operator can be run in emergency mode with an optional backup battery (ACCU)
- Universal with various door types, suited for sectional doors, overhead doors, up-and-over doors, side-opening sectional doors etc.
SOMMER Pro+ Garage Door Openers
Choose Your operator
Condominium / Apartment
German Reliability
Direct Drive Technology
Easy to Install

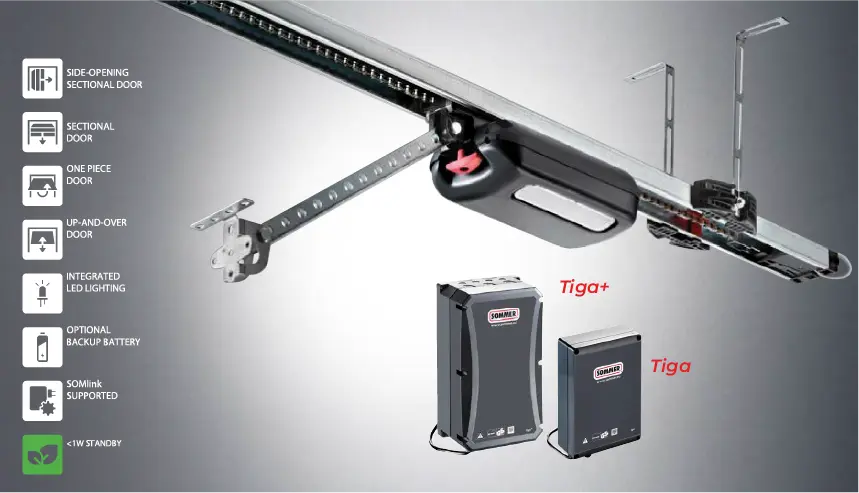

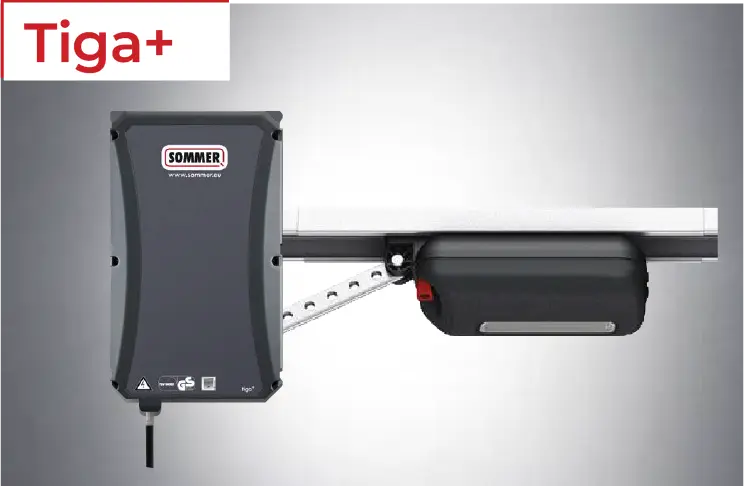

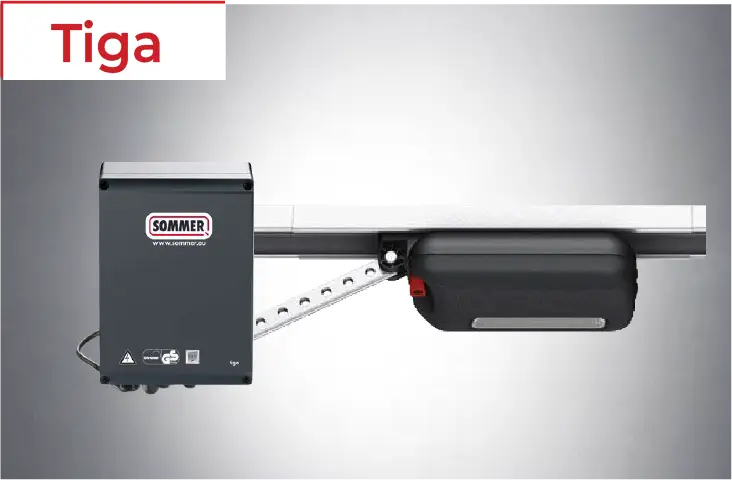

Tiga & Tiga+ Operator
- Wall Mounted GPO
- Condominium & Underground Applications
- Intelligent, responsive control technology
- Low wear and robust build
- Powerful traveling motor
- Extremely low power consumption
- Partial opening options
LED lighting in traveling operator - Break in detection, generating counter-pressure with high self-locking during attempts
The Tiga/Tiga+ is SOMMER’s advanced garage door control unit for group and underground garages. These operators are optimised for frequent usage, extremely durable and long lasting, while still offering easy installation and adjustment, satisfying both users and installers.
Technical Data
Max Door Weight 160KG
Max Speed 210mm per sec
Max Pull/Push Force 800N
Sectional Door – Max Door Width 6000mm
Sectional Door – Max Door Height 2500mm
Max Door Weight 200KG
Max Speed 180mm per sec
Max Pull/Push Force 1100N
Sectional Door – Max Door Width 8000mm
Sectional Door – Max Door Height 2500mm
- Environmental Friendly: In power saving mode, consumption is less than 1 watt, resulting in inexpensive operation.
- The integrated emergency release allows the motor carriage to be engaged or disengaged in any position, and for emergency egress in event of power failure.
- Intelligent control technology - self learning, adapting required force to external conditions for reliable operation
- Integrated LED lighting is equipped with 6 individual LED’s, ensuring optimum lighting during gage door travel
- In the event of power failure, the operator can be run in emergency mode with an optional backup battery (ACCU)
- Universal with various door types, suited for sectional doors, overhead doors, up-and-over doors, side-opening sectional doors etc.
