BEA CONDOR & CONDOR XL Motion & Presence Sensors

BEA CONDOR Motion Sensor & presence sensor for industrial doors.

The CONDOR offers activation and area monitoring in one single product, and is part of the latest generation of sensor offering optimal opening and the highest protection level. Utilising a combined sensor system, it is the most complete sensor solution on the market.

The CONDOR has a microwave (doppler radar) motion detector and an active infrared presence sensor built into the same housing. The planar antenna allows accurate pedestrian and vehicle filtering. With an IP rating of 65, CONDOR sensors are suitable for outdoor operation thanks to their rugged housing and are protected against vibrations and interference from the environment.

VARIATIONS:
• CONDOR – Mounting height 3.5m up to 6m
• CONDOR XL- Mounting height 2m up to 3.5m

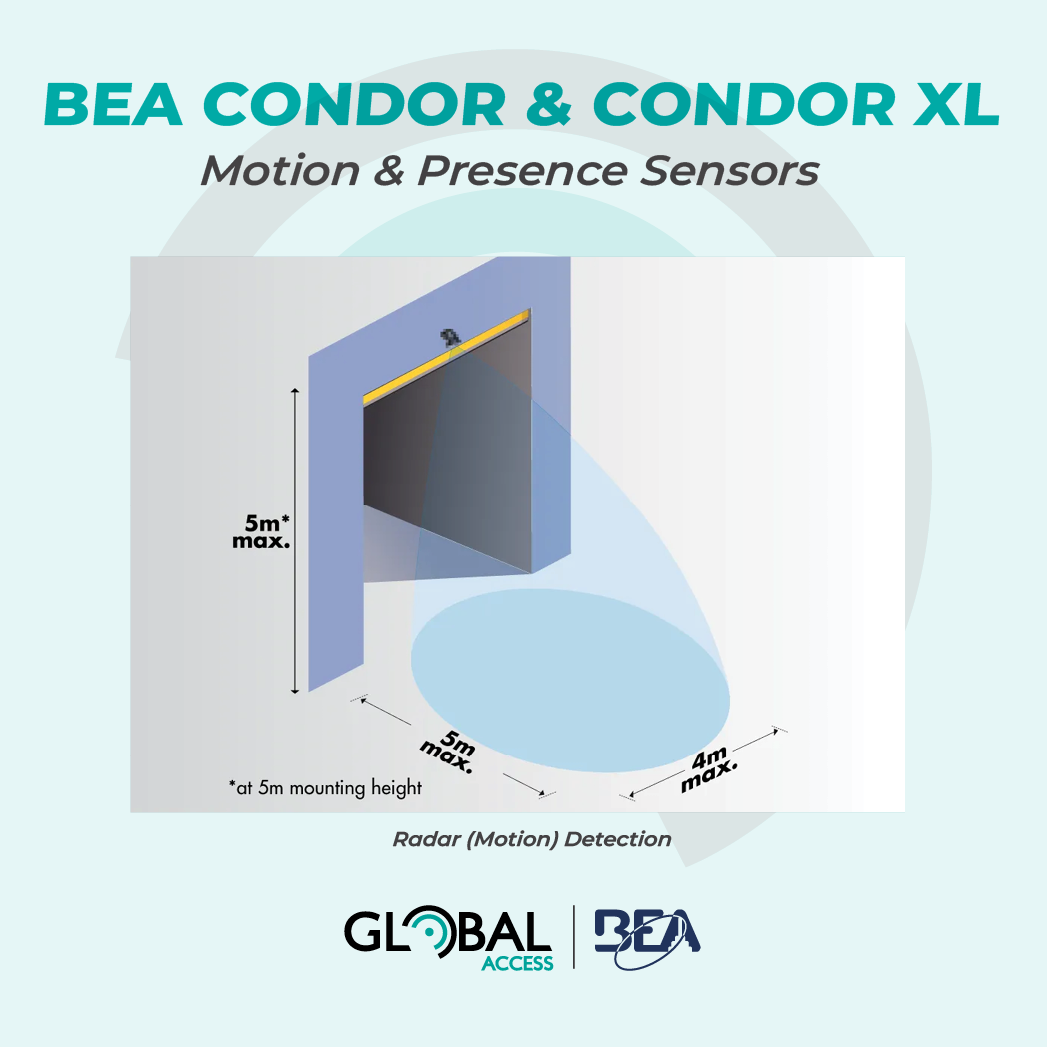

The radar motion detector capable of scanning an area of;
– CONDOR = 4m x 5m – 4m x 4m (emitting spots)
– CONDOR XL = 4m x 2m- 4m x 4m (emitting spots)

NOTE:
The CONDOR requires a BEA Remote for programming (1059-0022).

SIMILAR PRODUCT: BIRCHER Helios 2T
