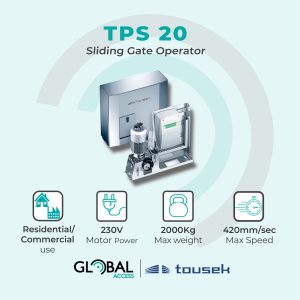

TOUSEK TPS 20 230V Electric Sliding Gate Chain Drive – Configuration

The premium quality TOUSEK TPS 20 range of sliding gate motor are suitable for gates weighing up to 2000Kg. These European (Austrian) designed and manufactured oil-bath gearbox operator are like no other when it comes to design and quality of build!

• Large illuminated LC-Display
• Clear text menu programmable via four buttons
• Distance measurement with speed sensor
• Adjustable soft stop
• Automatic reversal system
• Mechanical brake for safe gate stop
• Permanent self-regulating force with boost function
• Electronic monitoring of emergency release
• Input for gate back area surveillance
• Suitable for traffic control operation
• Status display for safety and buttons/switches inputs
• Mechanical brake for safe gate stop
• 1.5 amp accessory power supply
• Ask us about TPS 20 Master/Slave combination for bi-parting gates
• Included DIN Rail 30W 24V 1.5Amp Power Supply

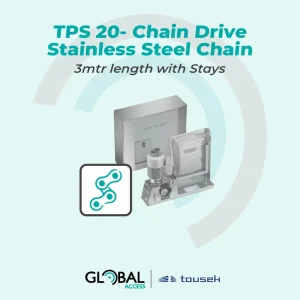

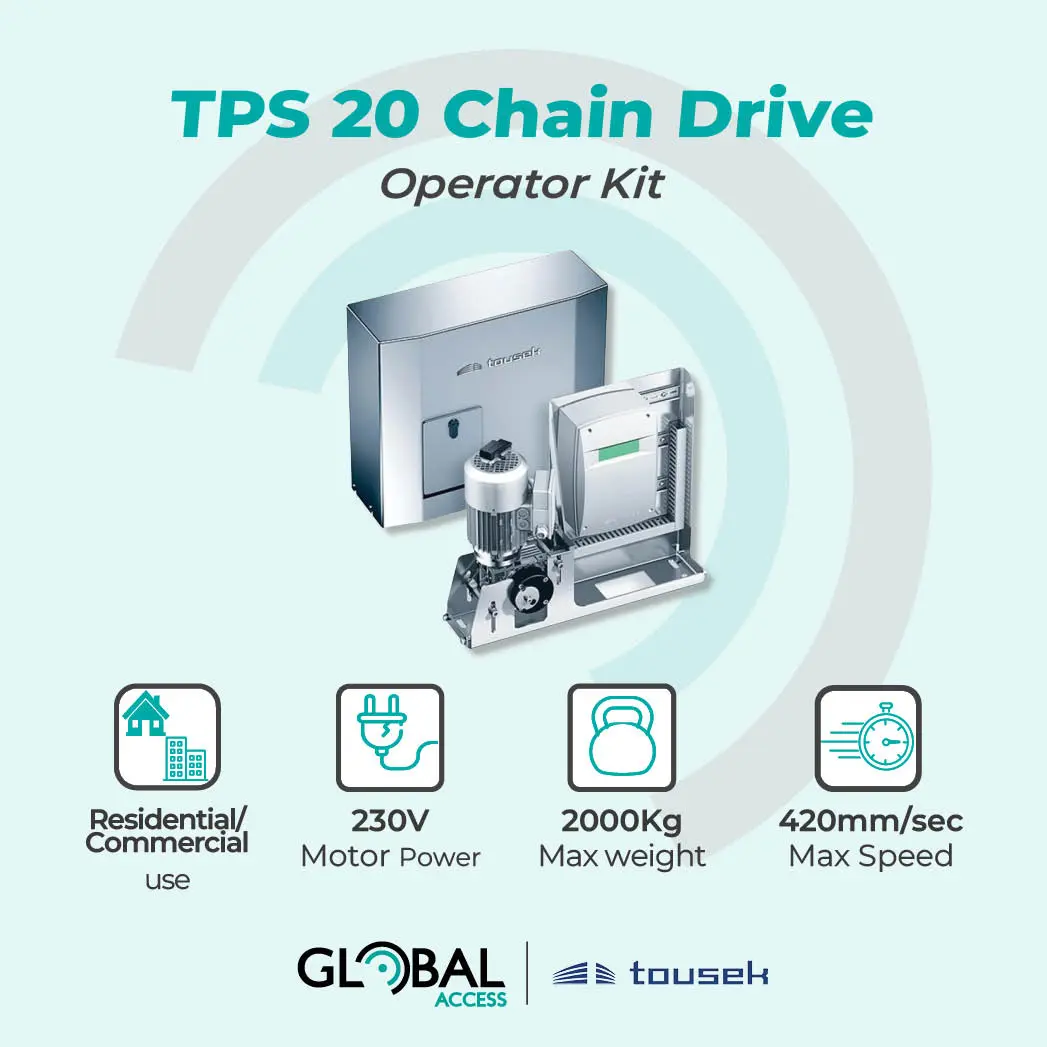

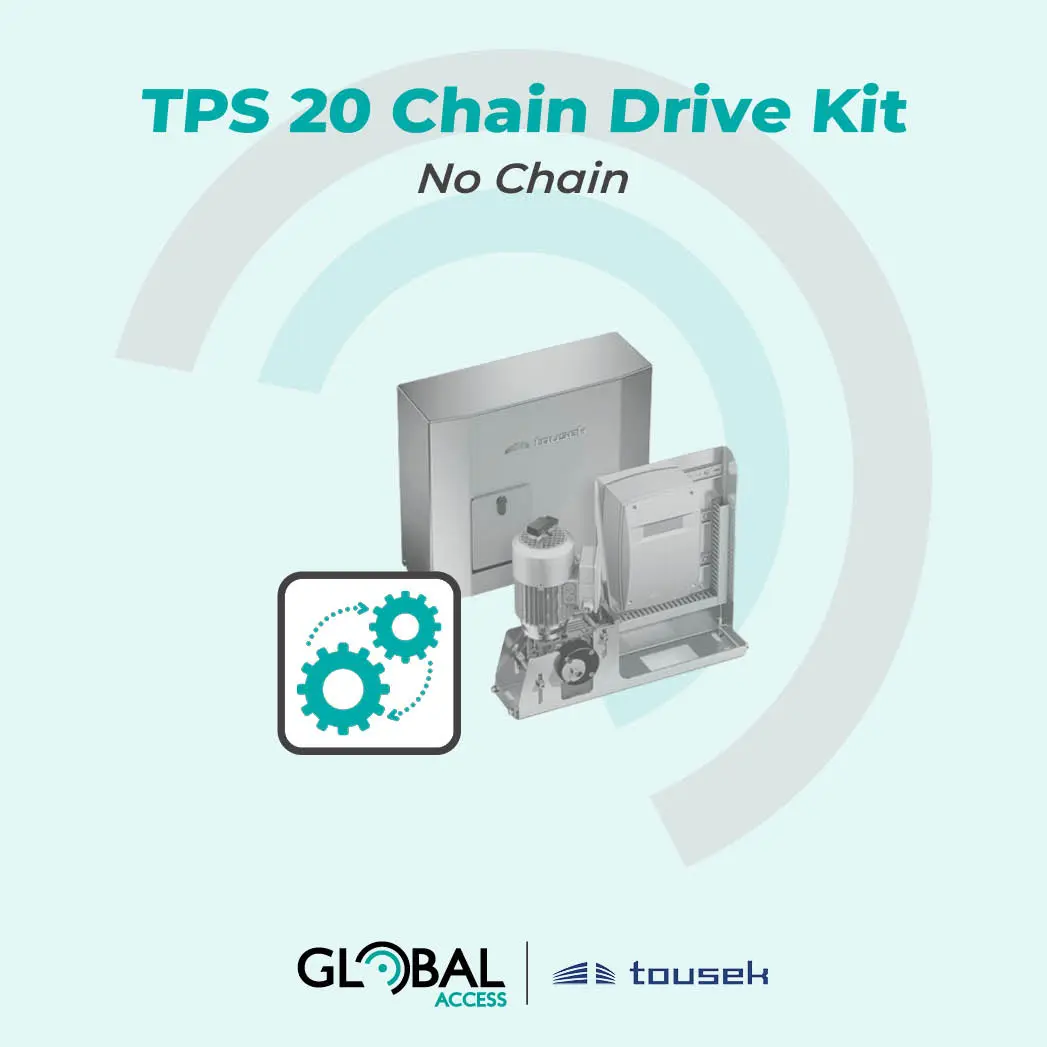

TPS 20 Chain Drive Kit

The TPS 20 Chain Drive Kit has been developed for applications where ground movement or rack alignment issues may affect the long-term performance of a traditional rack-and-pinion system. By converting the TPS 20 to a chain-driven configuration, installers can achieve smoother operation, improved reliability and more consistent performance in demanding sliding gate applications.

Key benefits

• Ideal for installations affected by ground movement
• Improved tolerance to misalignment
• Reliable operation in demanding environments
• Durable chain-driven transmission system
• Smooth and consistent gate movement
• Designed specifically for the TOUSEK TPS 20 range

IMPORTANT NOTE:
• Kits do not contain radio gear or remotes
• Only One (1) optional genuine Tousek module can be fitted to the control board
