FAAC E034 Control Board Only

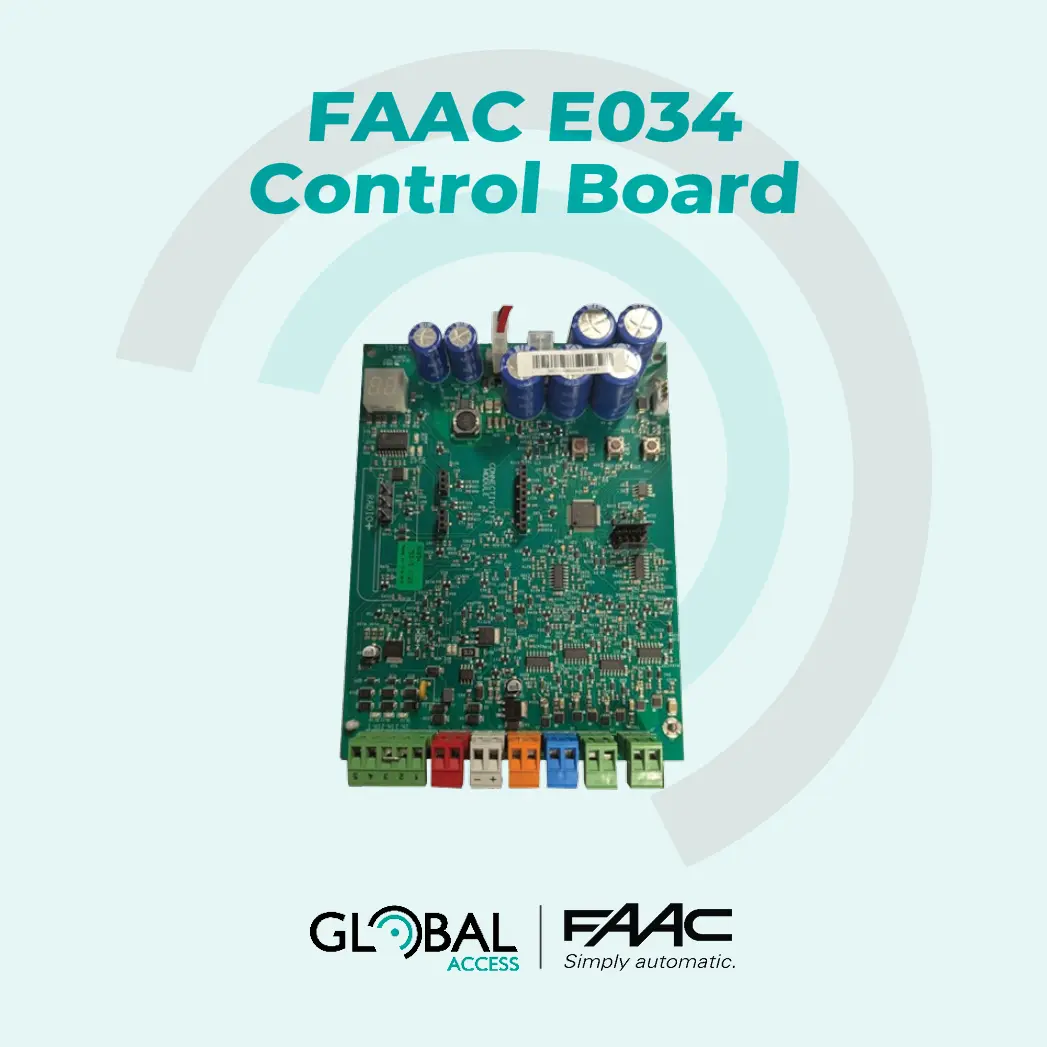

FAAC E034 Control Board

The FAAC E034 is a 24V control board featuring advanced motor control for precise adjustment of speed, force and encoder sensitivity. Designed for flexible installation and simplified commissioning, it supports BUS 2Easy accessories, FAAC radio modules and Simply Connect connectivity.

Compatible with the optional XLC low-consumption module, standby power can be reduced to just 0.5W, or 2W with Simply Connect.

Key Features

• 24V DC motor control
• Maximum motor power: 340W total / 170W per motor
• Advanced speed, force and encoder sensitivity adjustment
• BUS 2Easy connectivity
• Programmable output for external devices
• Connectors for Simply Connect / XUSB
• Supports XF FDS or XF 3-pin radio modules
• Optional XLC module for reduced standby consumption
• Maximum accessory load: 24V DC 250mA
• BUS 2Easy load: 400mA

Important – FAAC XP20 Wireless Photobeams
When using FAAC XP20 Wireless Photobeams with the E034 Control Board, a BUS Interface Board (Part No. 1059-0010) is required.
