SKU: 1655-0024#
Login to view pricing

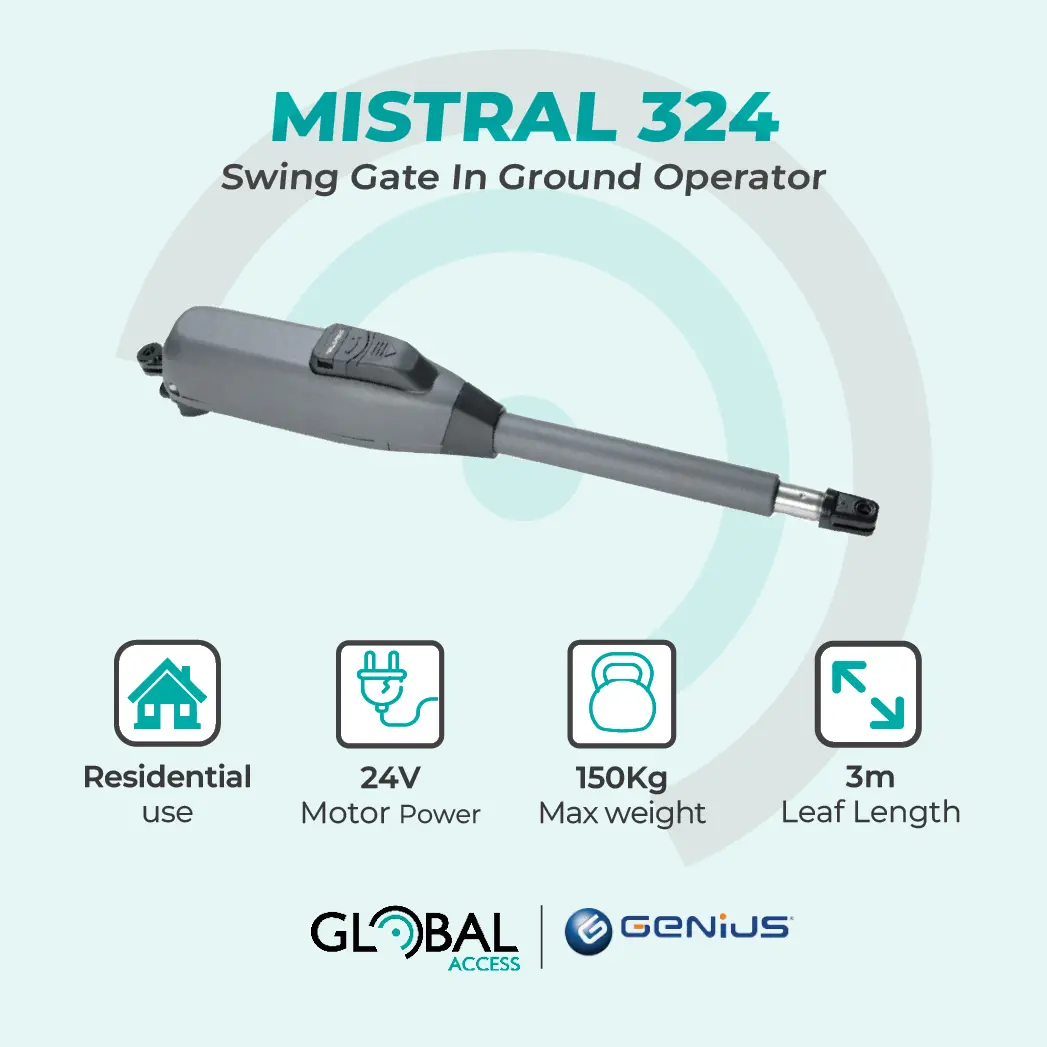

The MISTRAL 324 swing gate operator is suitable for open design gates with leaves up to 3m in length.
• Irreversible Electro-Mechanical Motor
• Quiet & Fast
• Stainless Steel Tube
• Aluminium Body
• Offers 300mm of stroke
• Use BUS interface on the Brain 15 Control board when connecting Wireless Photo Beams
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
DOUBLE KIT:
1655-0023 – 2 x 24v Mistral 324 actuators, Brain 15 Control Board for 24v operators, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug
1655-0048 – 2 x 24v Mistral 324 actuators, Brain 15 Control Board for 24v operators with External Transformer, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug
SINGLE KIT:
1655-0024 – 1 x 24v Mistral 324 actuator, Brain 15 Control Board for 24v operators, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug
1655-0047 – 1 x 24v Mistral 324 actuator, Brain 15 Control Board for 24v operators with External Transformer, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug
• Front & Rear Brackets require welding!
• Physical ground stops are required in both open and closed positions!
Voltage:
Application:
Wind Loading:
Solar Suitability:
Backup Battery Option:
Recommended Gate Weight:
Max Gate Weight:
Recommended Leaf Length:
Max Leaf Length:
Max Speed:
Stroke:
Incline:
Minimum Side Room:
Max Opening Angle:
Rising Hinges:
Frequency (Duty Cycle):
Protection Class (IP):
Welding Required:
Country:
Product Notes:
