FAAC XP20 Photo Beams – Wireless, Wired OR BUS

FAAC XP20 Photo Beams; Wireless, Hard Wired OR BUS

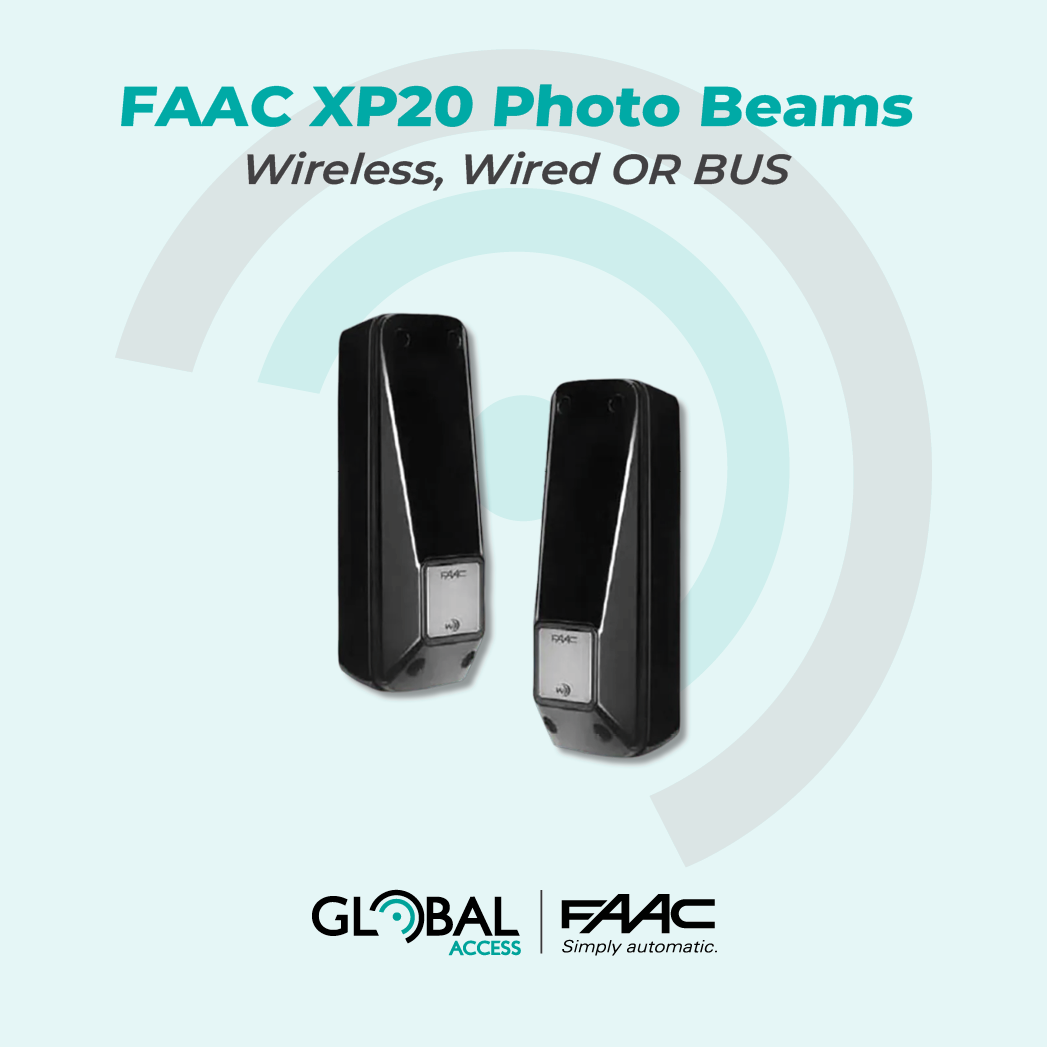

FAAC Mounted Photo Beams (Photo Electric / Photocells) Models:
• Wireless – 1059-0011
• Hard Wired – 1059-0024
• BUS – 1059-0005

Specifications:
• Sold as a pair (sender and receiver)

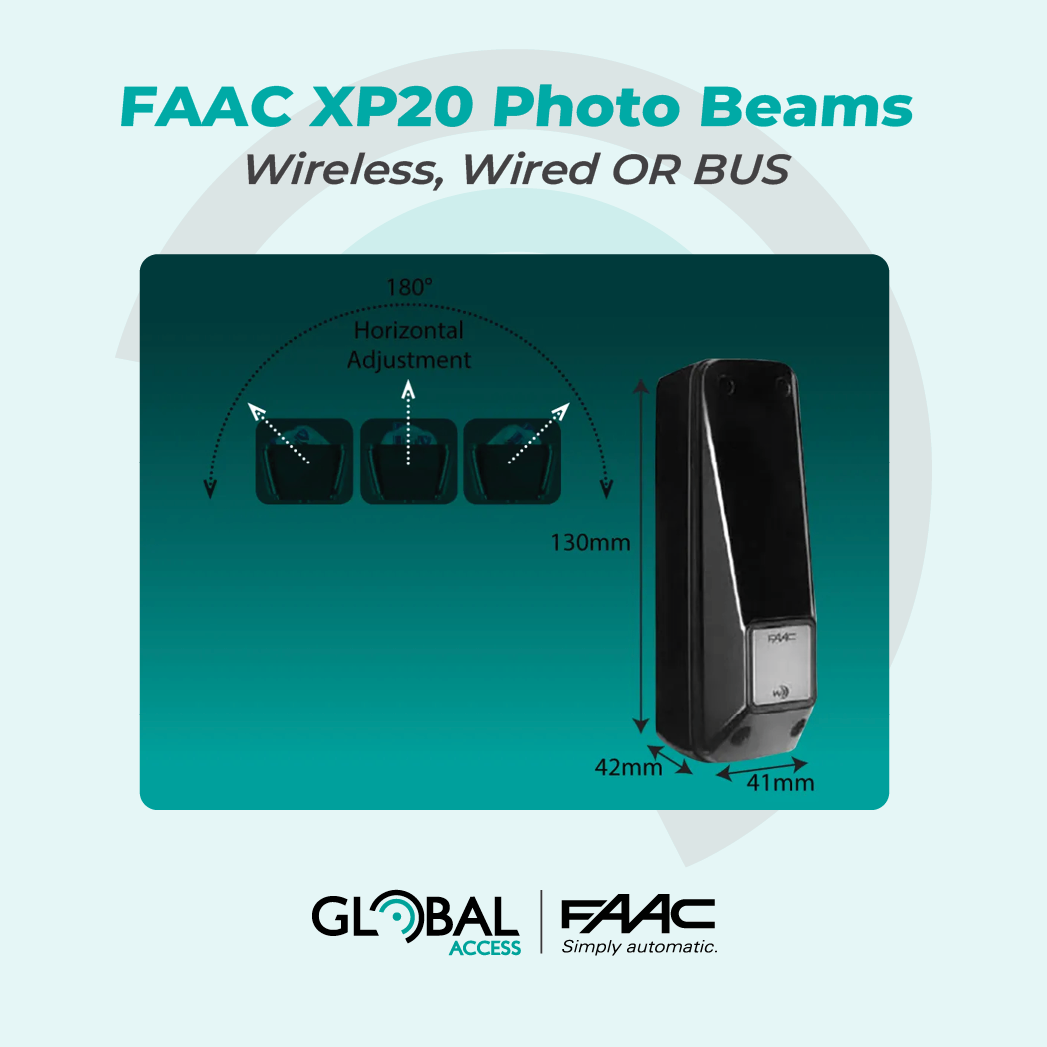

• 180°Horizontal Beam Adjustment
• 12/24v (AC/DC)

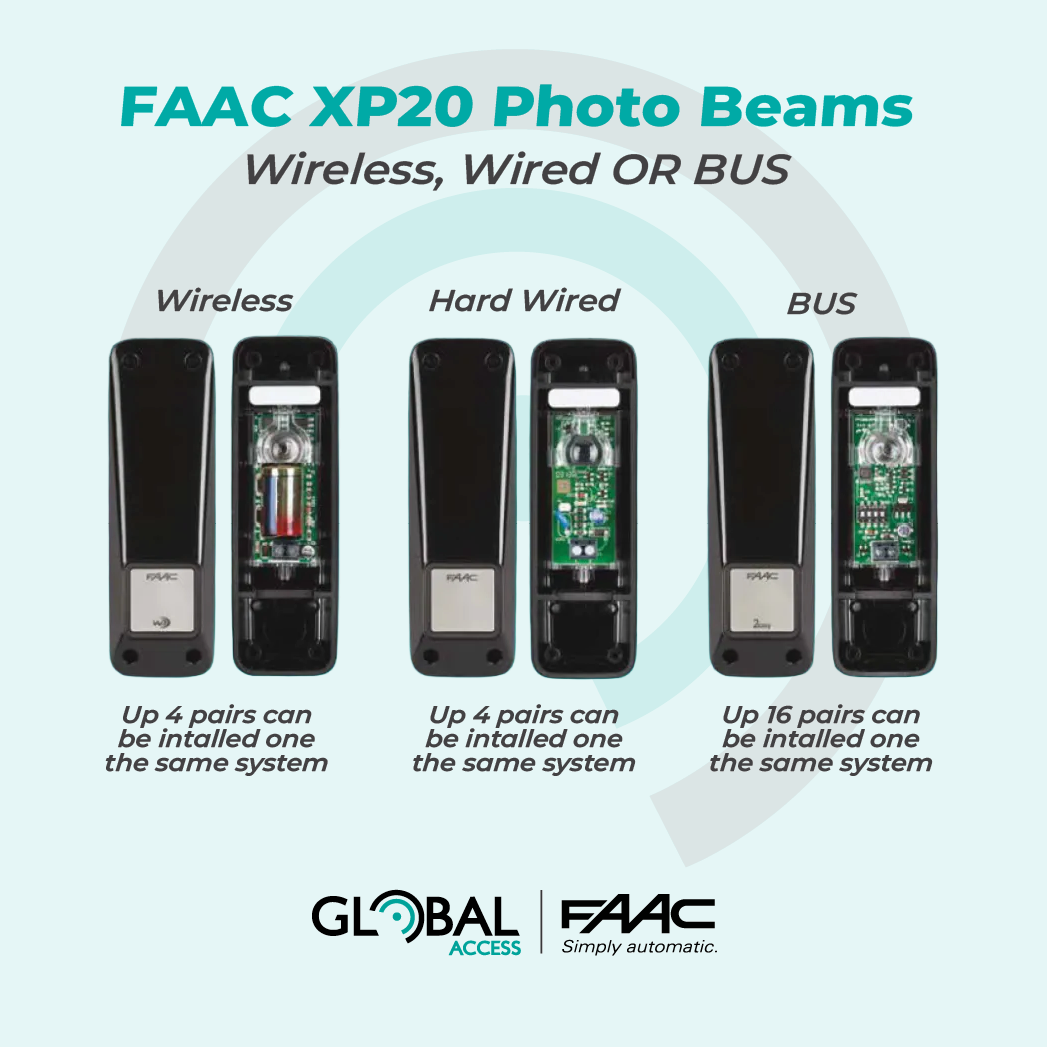

• Wireless + Hard Wired; 4 pairs of beams on the same system

• BUS; 16 pairs of beams on the same system
• Use 0.5mm² Cable to wire in
• Possibility for cable inlet from the back and the underside
• Obstacle Detection Time; Hard Wired: 13ms | Wireless: 40ms | BUS: 20ms

Range:
• Wireless = Max. 8m
• Hard Wired + BUS = Max. 20m

IMPORTANT NOTE:
WIRELESS BEAMS;
• You are still required to run a wire from one photo beam to the control box
• The other photo beam is wireless and is powered by 1 x CR2 3V battery (supplied)
• If connecting the wireless beams to an FAAC ‘Standard’ E024S Swing Gate Control Board, you will need to install an FAAC BUS Interface #1059-0010
