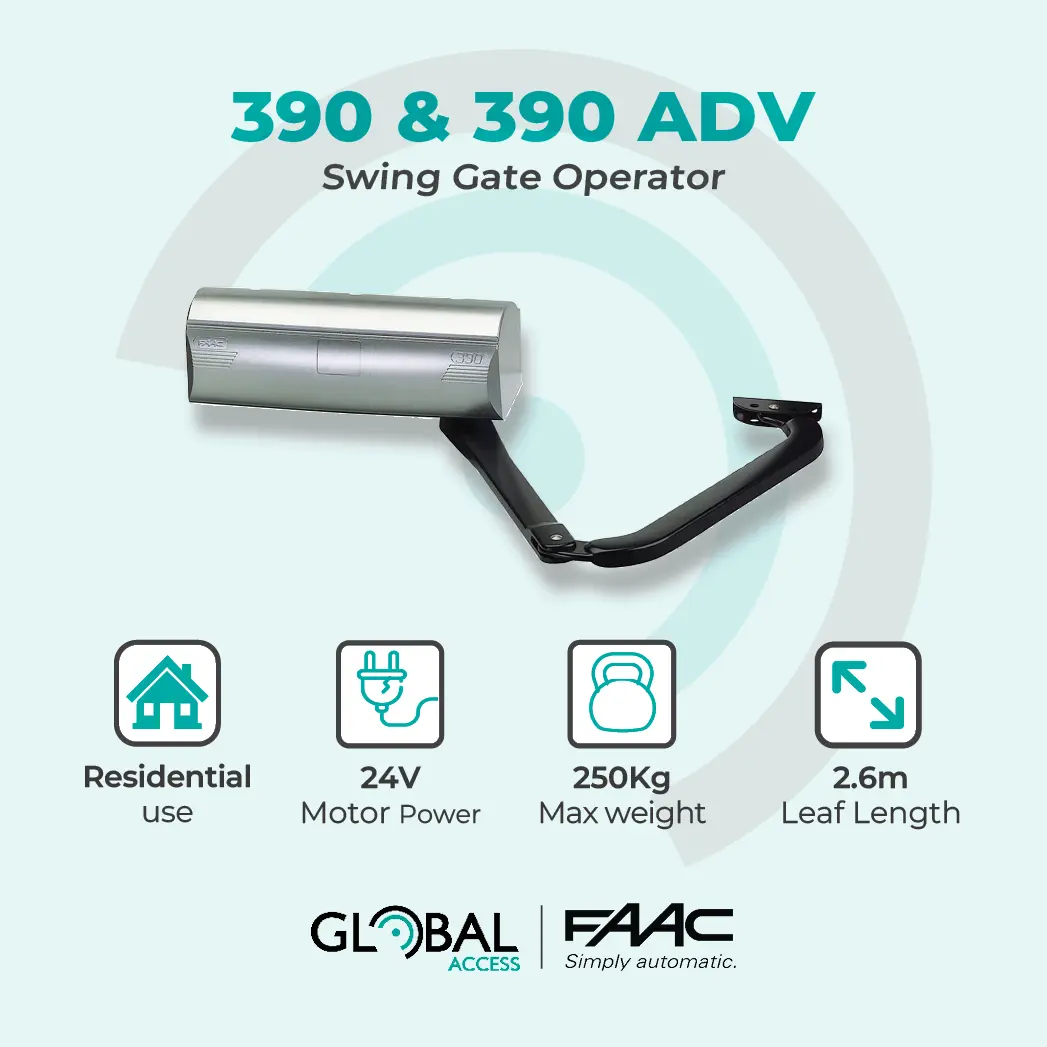

FAAC 390 24v Electric Swing Gate Motor – STANDARD & ADVANCED

The FAAC 390 Swing Gate Operator is perfect for large pillar mounted swing gates with a maximum recommended gate width of 2.6m!

• Irreversible motor with ABS cover
• For large pillar applications
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

STANDARD VARIANTS

DOUBLE KIT:
2 x 24v 390 actuators with aluminium arms, 1 x Receiver, 2 x Long Range Transmitters, E034 Control Box, 1 x High Powered Aerial & 230v plug
NOTE:
• Use BUS Photo Cells or BUS Interface with Wireless Photo Beams.
• Optional Transformer in Separate Enclosure Kits are available.

SINGLE KIT:

1 x 24v 390 actuator with aluminium arm, 1 x Receiver, 2 x Long Range Transmitters, E034 Control Box, 1 x High Powered Aerial & 230v plug
NOTE:
• Use BUS Photo Cells or BUS Interface with Wireless Photo Beams.
• Optional Transformer in Separate Enclosure Kits are available.

ADVANCED VARIANTS

DOUBLE KIT:
2 x 24v 390 actuators with aluminium arms, 1 x Receiver, 2 x Transmitters, E124 Control Box, 1 x High Powered Aerial & 230v plug, Limit Switches Included.
NOTE:
• Optional Transformer in Separate Enclosure Kits are available

SINGLE KIT:
1 x 24v 390 actuator with aluminium arm, 1 x Receiver, 2 x Long Range Transmitters, E124 Control Box, 1 x High Powered Aerial & 230v plug, Limit Switches Included.
NOTE:
• Optional Transformer in Separate Enclosure Kits are available

IMPORTANT NOTES

• Standard kits require physical ground stops in both open and closed positions!
• Advanced kits require Limit Switches (already included in Advanced Kits)
