FAAC 844C 230v Electric Sliding Gate Motor

FAAC 844C Gearmotor for sliding gates with max. weight of 1800Kg, with Z16 pinion.

• Adjustable speeds for open and close
• Encoder for precise moment and safety
• Key protected manual release
• Magnetic travel limit device, simplified installation of travel limit magnets
• Oil lubricated for efficient heat dissipation and increased use frequency.
• Optimized power throughout the opening and closing cycles
• E781 integrated control board

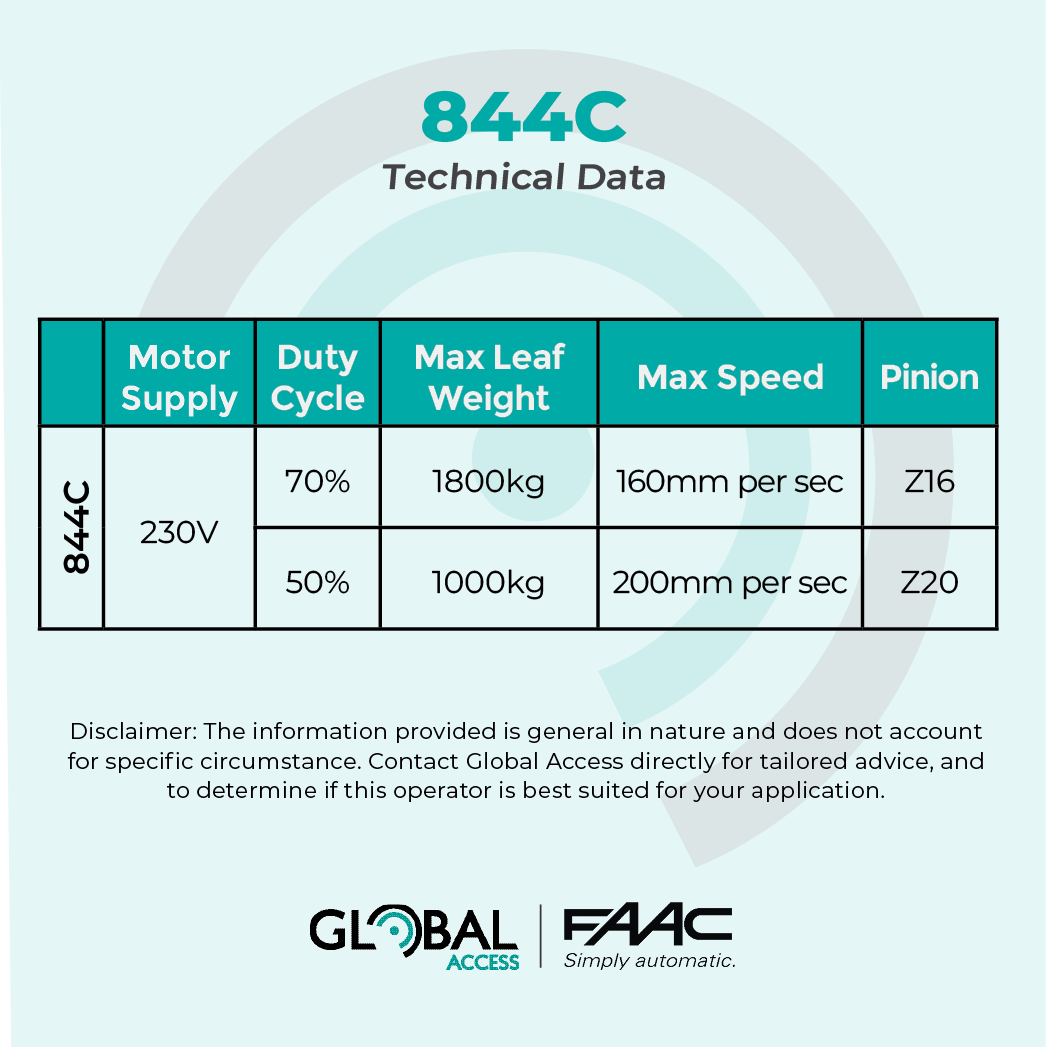

Model Variants Available:

• 1516-0003 – 844C Slider – Z16 Pinion
– 1800kg Max. Weight – 230v – 70 Cycles per hour – 160mm/sec E781 Control Board

• 1516-0006 – 844C Slider – Z20 Pinion
– 1000kg Max. Weight – 230v – 70 Cycles per hour – 200mm/sec E781 Control Board

• 1516-0005 – 844C Chain Driven Slider – with Z20 Chain Pinion [SPECIAL ORDER]
– 1000kg Max. Weight – 230v – 70 Cycles per hour – 200mm/sec

• 1516-0004 – 844C Chain Driven Slider – with Z16 Chain Pinion [SPECIAL ORDER]
– 1800kg Max. Weight – 230v – 70 Cycles per hour – 200mm/sec

IMPORTANT NOTES

• Kits do not contain radio gear or remotes
• Optional Foundation/Base Plate available: 6049-0164
• *Chain Drive 844 uses; 8B gauge chain (NOT INCLUDED IN THIS KIT)
