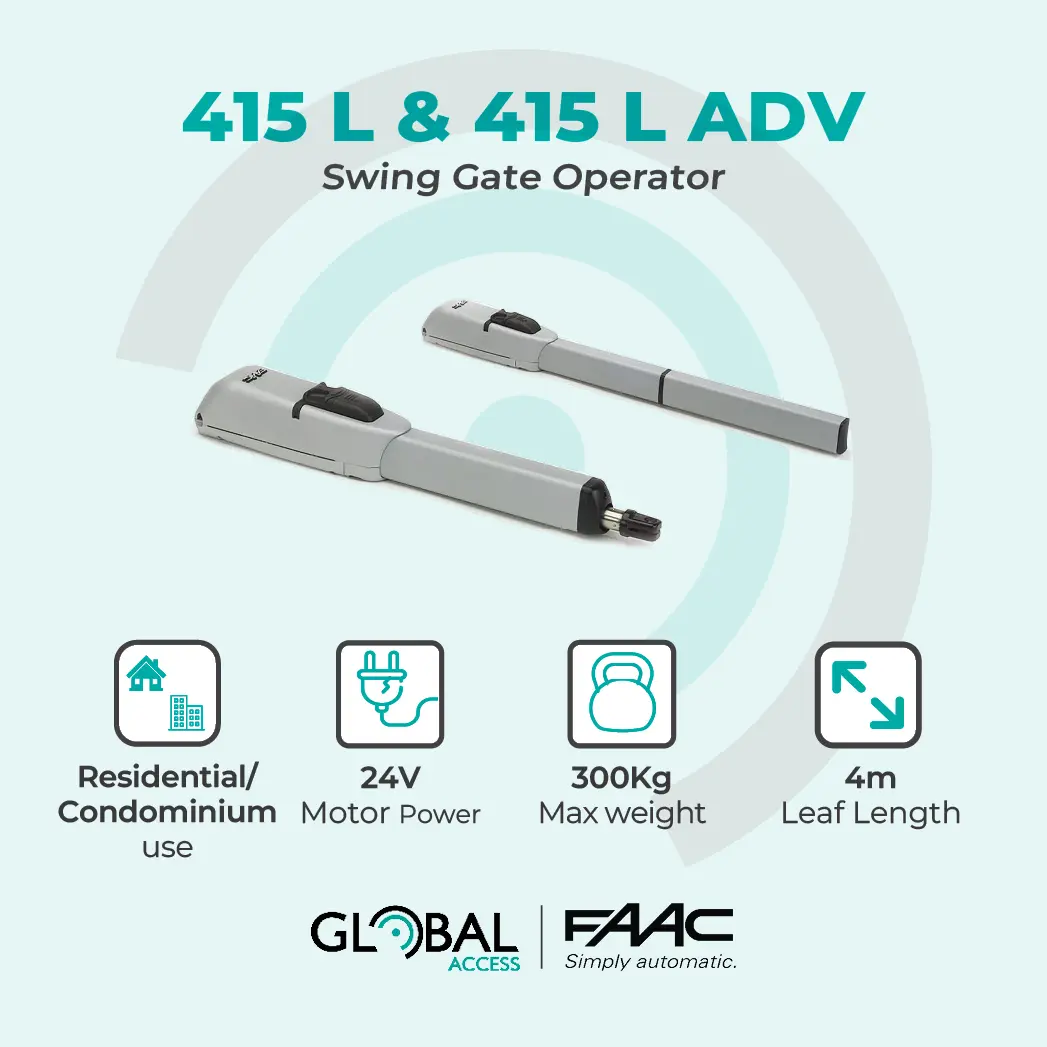

FAAC 415 Long 24v Electric Swing Gate Motor – STANDARD & ADVANCED

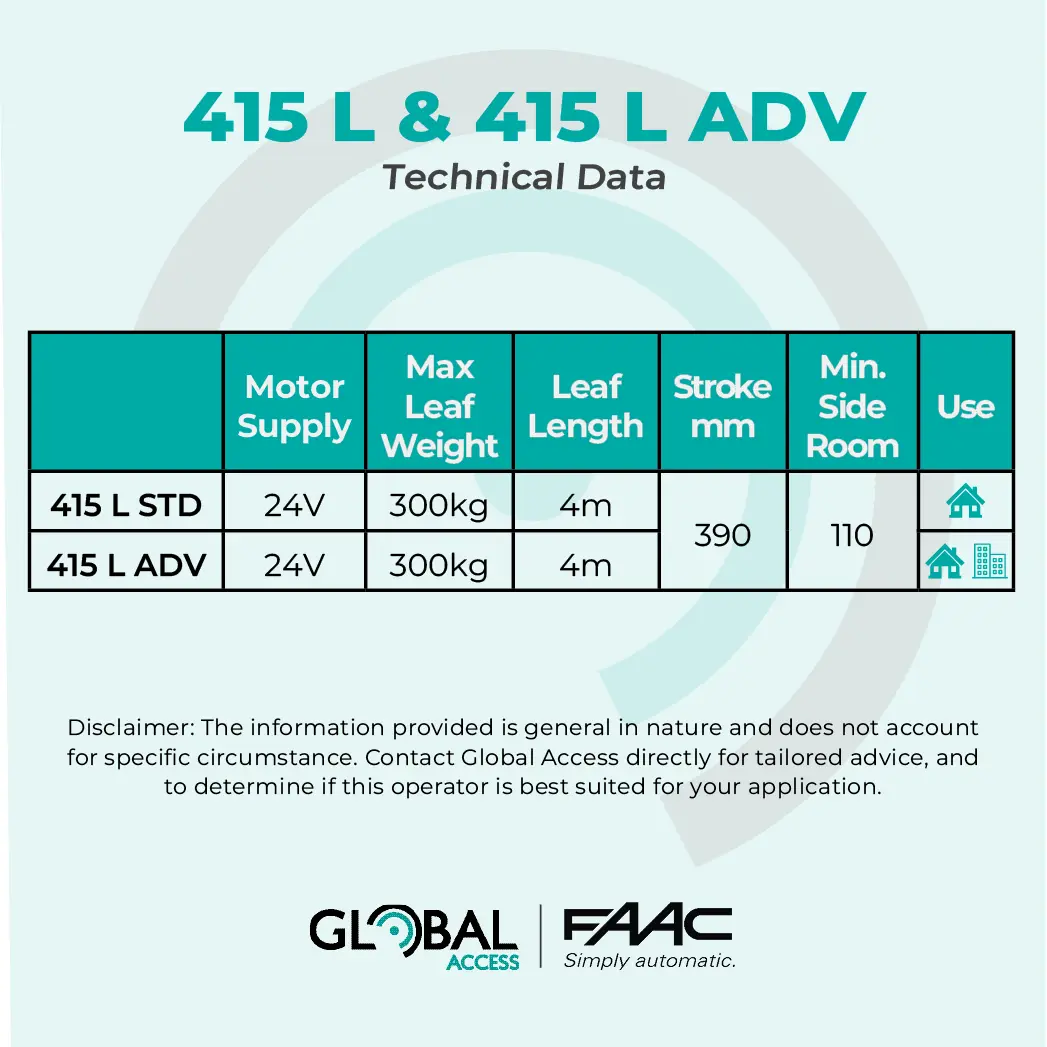

The FAAC 415 Long Swing Gate Operator are ideal for use on larger swing gates with leaves up to 4m in length.

• Suitable for swing gates up to 4.0m per leaf
• Powerful 24V DC electromechanical operator
• 390mm stroke for large gates and greater post setbacks
• Ideal for wide and wind-loaded gates
• Solar compatible (E034 control board version)
• Quiet, smooth operation with obstacle detection
• Reliable European engineering from FAAC
• Compatible with optional limit switch versions for applications where ground stops are impractical
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

STANDARD VARIANTS

DOUBLE KIT:

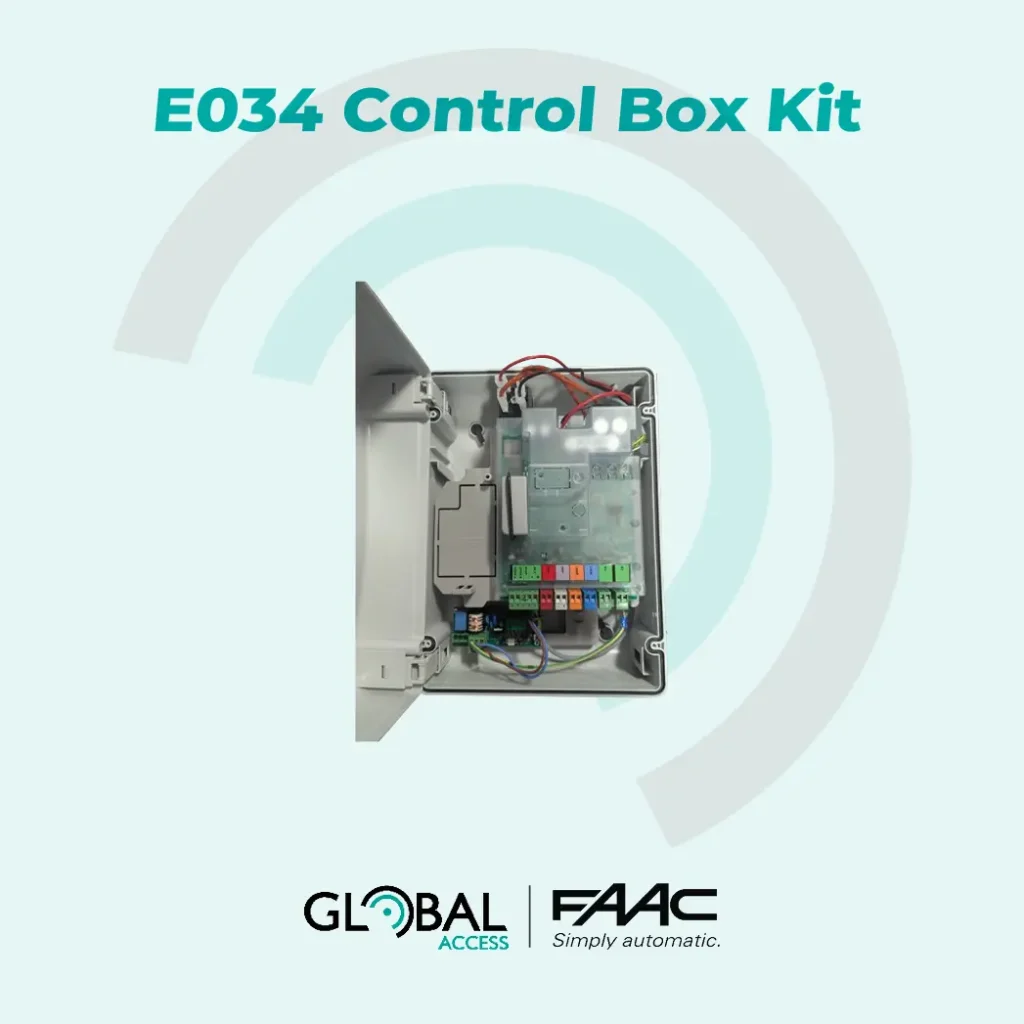

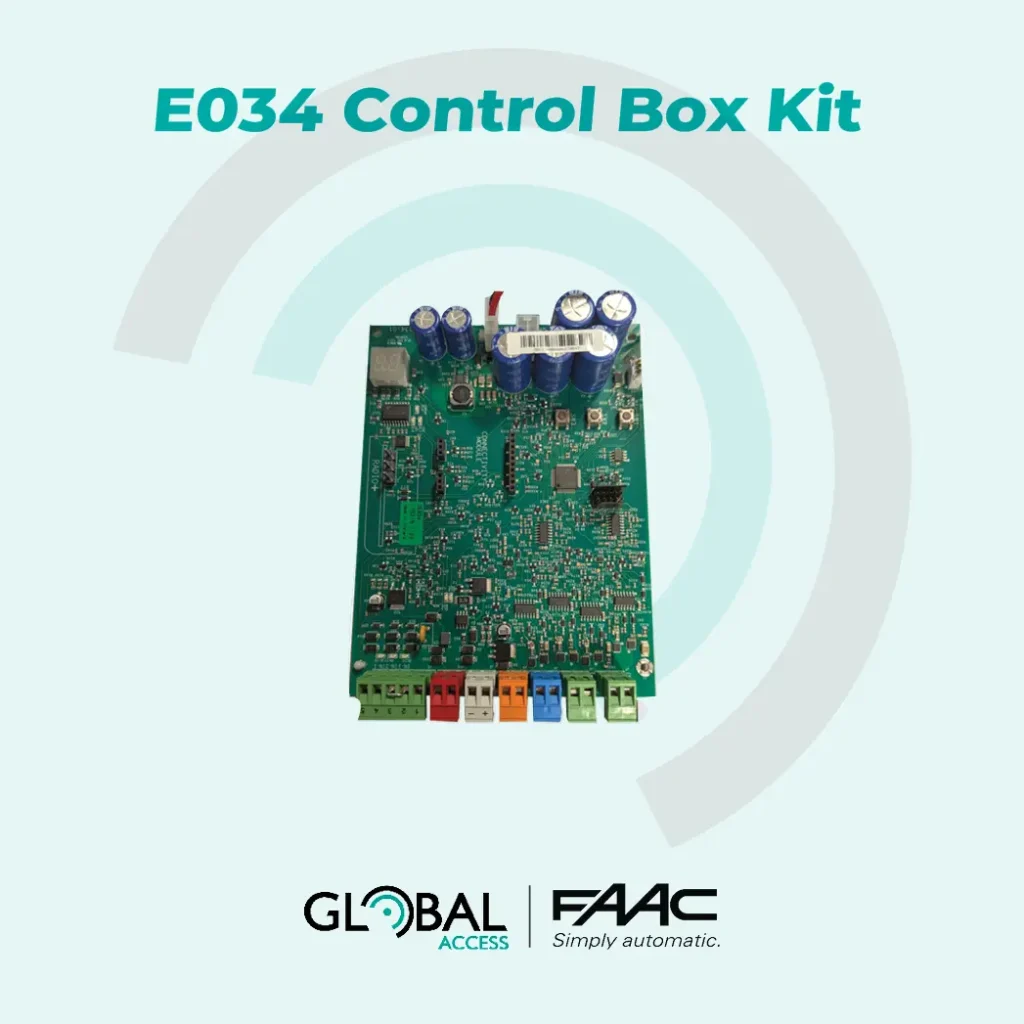

2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E034 Control Board in ABS Box, 1 x High Powered Aerial & 230v plug

• Optional transformer in a separate enclosure is available for installations requiring the transformer to be mounted remotely.

SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E034 Control Board in ABS Box, 1 x High Powered Aerial & 230v plug

• Optional transformer in a separate enclosure is available for installations requiring the transformer to be mounted remotely.

ADVANCED VARIANTS

DOUBLE KIT:
2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug

• Optional transformer in a separate enclosure is available for installations requiring the transformer to be mounted remotely.

SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
• Optional transformer in a separate enclosure is available for installations requiring the transformer to be mounted remotely.

ADVANCED VARIANTS – WITH LIMIT SWITCHES

DOUBLE KIT:
2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug

• Optional transformer in a separate enclosure is available for installations requiring the transformer to be mounted remotely.

SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug

• Optional transformer in a separate enclosure is available for installations requiring the transformer to be mounted remotely.

IMPORTANT NOTES
• Standard versions require mechanical ground stops in both the fully open and fully closed positions.
