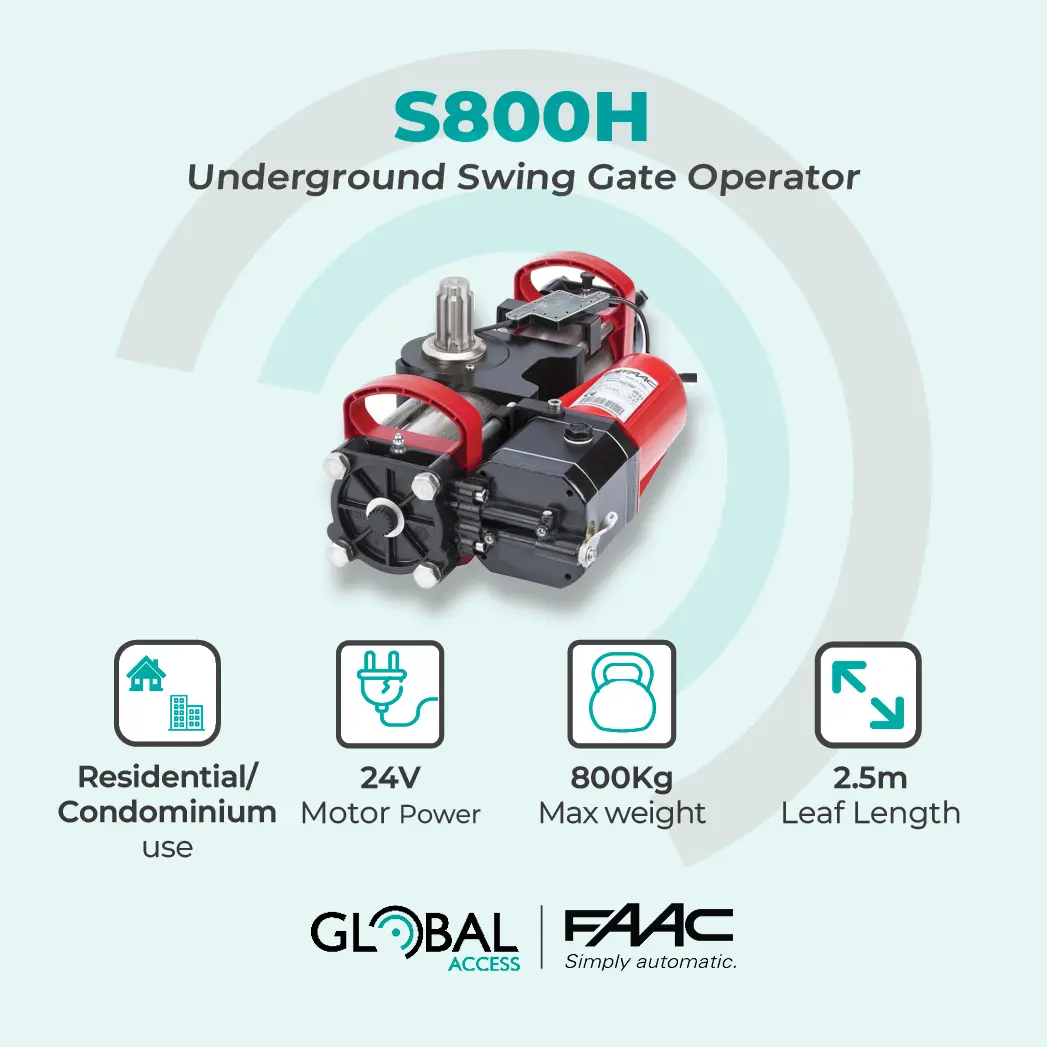

FAAC S800H 24v Hydraulic Underground Swing Gate Motor – ADVANCED

The FAAC S800 Underground Swing Gate Operator is fantastic for use on swing gates with leaves up to 2.5m in length

• Integrated ‘2EASY’ BUS magnetic encoder
• Integrated Positive Stops – Opening angle 100° OR 180°
• Lever operated release key – Optional Hydraulic release
• E124S Advanced Control Board
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

DOUBLE KIT:
2 x 24v S800H 100° Motors, 2 x Self Bearing Case, 2 x Manual Release, 1 x Two Channel Receiver, 2 x Transmitters, E124S Control box, 1 x High Powered Aerial & 230v plug

SINGLE KIT:
1 x 24v S800H 100° Motor, 1 x Self Bearing Case, 1 x Manual Release, 1 x Two Channel Receiver, 2 x Transmitters, E124S Control Board (with Advanced Features), 1 x High Powered Aerial & 230v plug

DOUBLE KIT:
2 x 24v S800H 180° Motors, 2 x Self Bearing Case, 2 x Manual Release, 1 x Two Channel Receiver, 2 x Transmitters, E124S Control Board (with Advanced Features), 1 x High Powered Aerial & 230v plug

SINGLE KIT:
1 x 24v S800H 180° Motor, 1 x Self Bearing Case, 1 x Manual Release, 1 x Two Channel Receiver, 2 x Transmitters, E124S Control Board (with Advanced Features), 1 x High Powered Aerial & 230v plug

IMPORTANT NOTES

• Optional physical ground stops in both open and closed positions!- Ground Stops in the closed position highly recommended

• Optional Battery Backup are available
• Not suitable for Solar Applications

Shielded cable #1013-0008 must be used for the encoders
