Login to view pricing
Voltage:
Application:
Solar Suitability:
Backup Battery Option:
Recommended Gate Weight:
Max Gate Weight:
Recommended Leaf Length:
Max Leaf Length:
Max Speed:
Incline:
Frequency (Duty Cycle):
Drive Technology:
Protection Class (IP):
Country:
Product Notes:

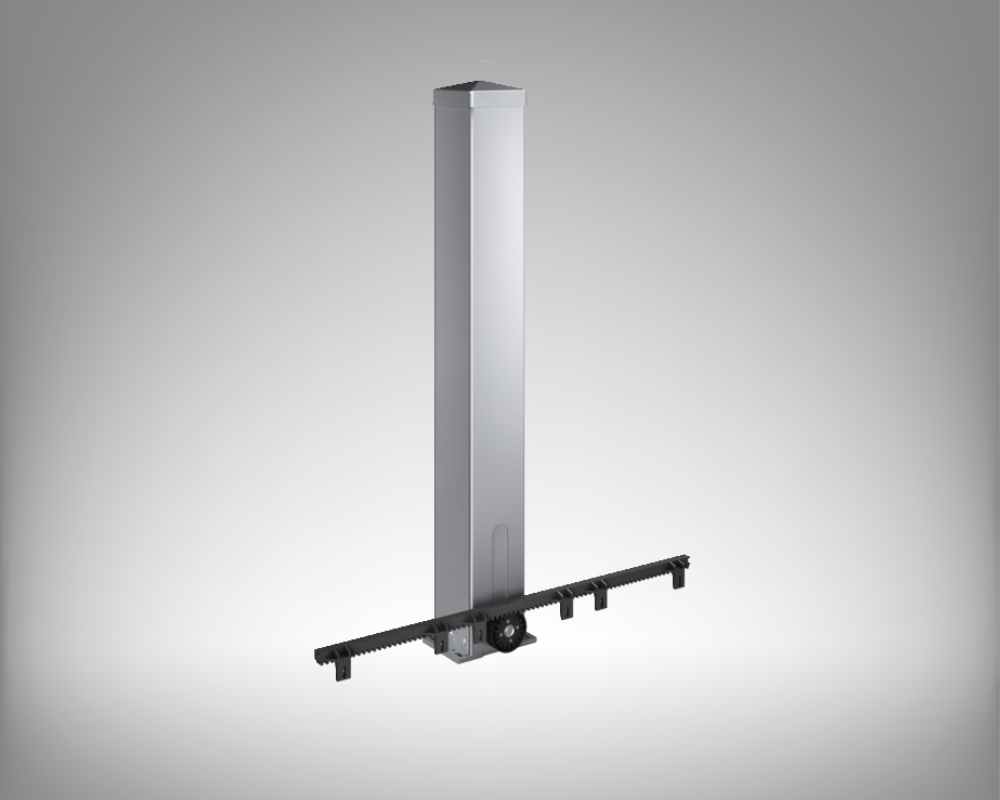

The SOMMER SP900 is a robust, invisible sliding gate operator that is hidden within a 2.1m Aluminum Post, and is suitable for a gate weighing up to 400Kg.
The entire motor itself is integrated into the post! This makes the operator invisible (hidden) and provides for an uncluttered, sleek appearance. The SP900 is flexible, rugged and suitable for industrial door systems.
For sliding gates with a travel length of up to 8m and a gate maximum gate weight of 400Kg.
Included in the kit is the 24v motor, 2.1m High Aluminum post, post cover (top cap), floor plate and clamping claws.
PRODUCT ADVANTAGES:
• Energy saving control board
• Modern and stylish design
• Optional battery backup
• Easy to use manual release
• Automatic obstacle reversal helps to prevent injury or property damage
• Integrated electric lock prevents forced manual sliding of the gate
• Adjustable dead-man function
• Dip-switch selection to choose Left or Right opening
• Suitable for incline gates up to 3m with a Max. weight of 200Kg
OPTIONAL ACCESSORIES:
• Battery backup to allow emergency egress
MOTOR KIT INCLUDES:

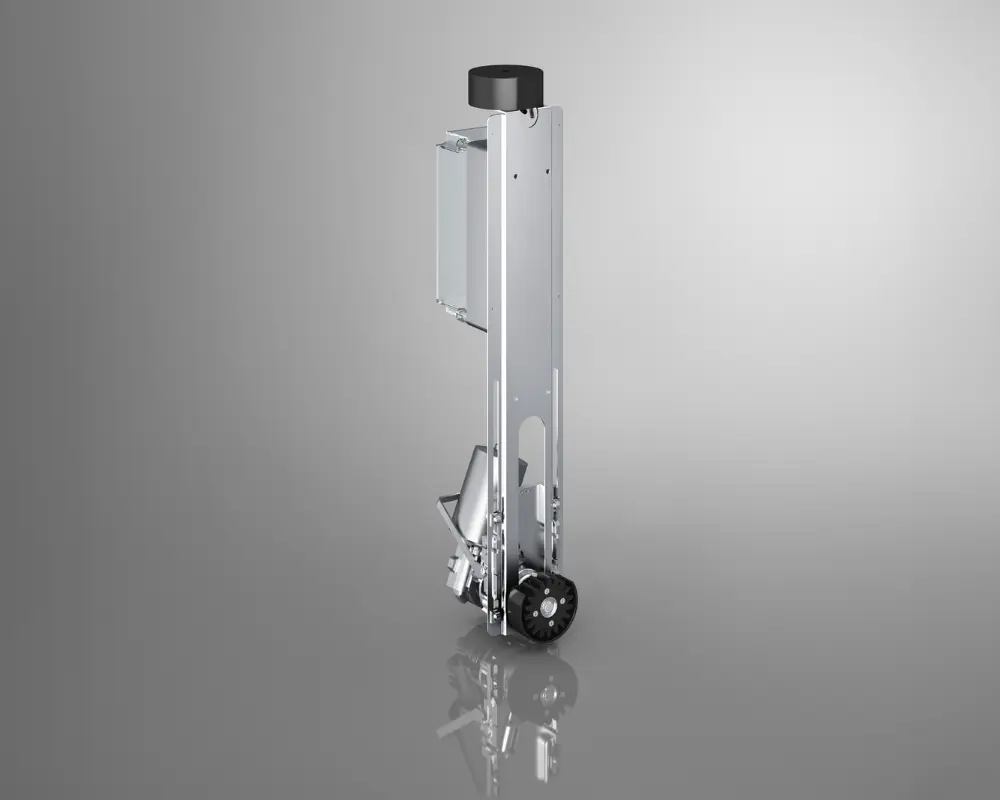

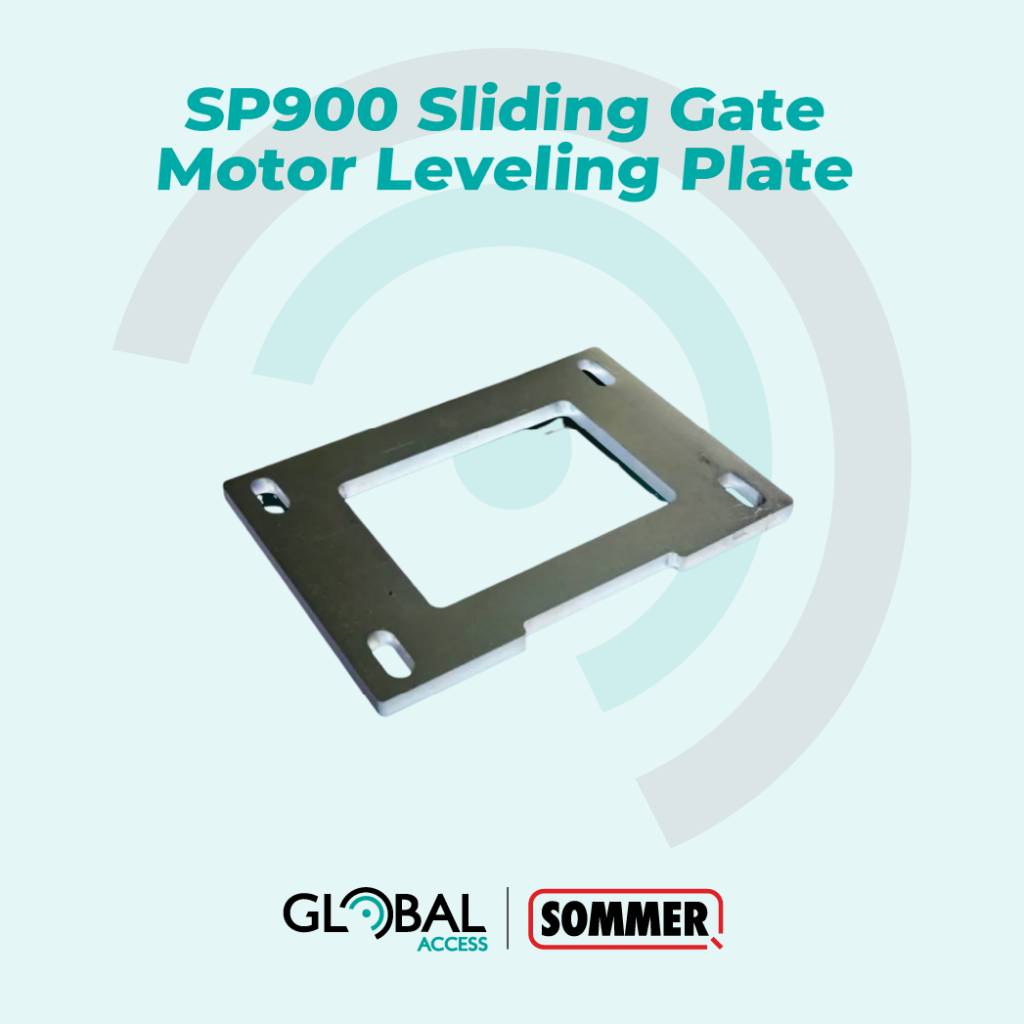

• 1 x SP900 motor unit, control unit, mounting and leveling plate set, 2 channel receiver and 2 x transmitters
AVAILABLE KITS:
• 1516-0034 Modular Kit, RAW
• 1516-0036 Modular Kit with Separate Transformer, RAW
Discreet In-Post Design
Fully integrated into the gate post for a clean, nearly invisible installation with no visible drive components.
Intelligent & Safe Operation
Automatically adapts operating parameters to the gate and detects connected safety edges and photocells.
