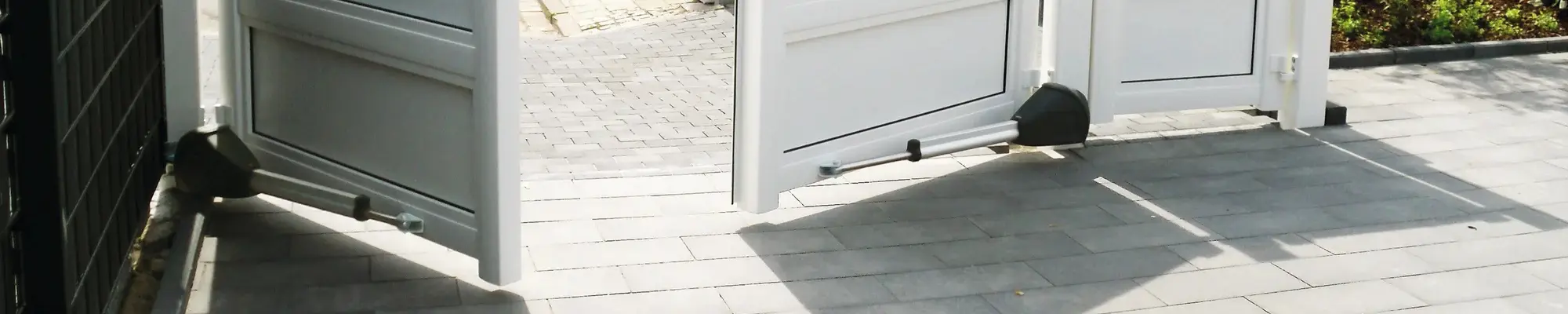

SOMMER TWIST XL 24v Electric Swing Gate Motor

SKU: 1656-0043#

product variations

Clear

Add to Quote

Related Files:

Share This Items :

The TWIST XL operator is suitable for use with leaves up to 7m in length.

Our most powerful linear swing gate operator, perfect for wind-loaded gates!

• Premium German Quality
• Easy to install and simple to setup
• Strong tubular operator with 450mm stroke
• Maximum of 110° Opening
• Patented brake system with over 1 tonne tolerance
• Suitable for heavy and/or wind loaded gates
• Suitable for rising gates (Max. 250Kg @ 2m on a 10% incline)
• 220W 25Ah or 220W 40Ah Solar Kit available for applications where mains power isn’t achievable
• Large (XXL) Control Box offers 1.5amp accessory power supply
• OPTIONAL Backup Battery Solutions are available via use of a dedicated 24V UPS
• OPTIONAL: Rising Gate Bracket/Hinge available (suits Twist XL ONLY)

IMPORTANT NOTES:

– A ground stop is strongly recommended in the OPEN + CLOSED position
– All kits come with 1 x Two Channel Receiver, 2 x Transmitters
– The XXL Control Box is considerable larger than the DT-A-1 Control Box

OPTIONAL EXTRAS:

1074-0010: UPS 24v with 25Amp Battery
1074-0011: UPS 24v with 40Amp Battery
1062-0033: 220W 25Ah Solar Kit
1062-0014: 220W 40Ah Solar Kit
1018-0206: Twist 350 & Twist XL UPS Converter required for all above Solar & UPS Options

5825-0030: 25mm Rear Bracket Spacer for Twist Range
5825-0019: 50mm Rear Bracket Spacer for Twist Range
5825-0020: 100mm Rear Bracket Spacer for Twist Range
5825-0034: 150mm Rear Bracket Spacer for Twist Range
1612-0001: Twist XL Rear Connector for Rising Gates
1045-0032: Sommer Electric Lock Kit (24V) with Cylinder + 3 Keys, Side & Floor Mount Incl.
5825-0039: 12M Connecting Cable Set for Double Kits (no junction box)
5825-0022: 12M Connecting Cable Set for Double Kits inc. junction box

Voltage:

24V

Application:

Residential, Condominium

Wind Loading:

Heavy Wind Load

Solar Suitability:

Suitable

Backup Battery Option:

Recommended Gate Weight:

1000kg @ 2m

Max Gate Weight:

1100kg

Recommended Leaf Length:

Max Leaf Length:

Max Speed:

Total Stoke Travel Time = 15-23sec (including slow-down)

Stroke:

300mm-450mm

Incline:

Yes

Minimum Side Room:

200mm

Max Opening Angle:

110°

Rising Hinges:

Suitable for Heavy

Frequency (Duty Cycle):

40%

Drive Technology:

Electromechanical

Protection Class (IP):

IP44

Welding Required:

Not Required

Country:

GERMANY

Product Notes:

Lock required for leaves over 3m

Product FAQs

Is the Twist XL suitable for rising gates?

Yes. The Twist XL can accommodate gate inclines of up to 10% when installed using the correct mounting arrangement. The application should be assessed carefully before installation

Can the gate be opened during a power failure?

Yes. The Twist XL includes a manual release mechanism, allowing the gate to be disengaged and moved by hand during a power outage or emergency.

Does the Twist XL have obstacle detection?

Yes. The control system monitors the force required to move the gate and can react when an obstruction is detected. Additional safety devices are still required where specified by the installation risk assessment and relevant standards.

Is the Twist XL suitable for high-wind locations?

The Twist XL is designed to handle demanding gate applications, including heavy and fully clad gates. However, wind loading can place considerable force on the gate and operator, so the gate size, filling, hinge position and local wind conditions must be assessed.
