SKU: 1045-0030#
Login to view pricing

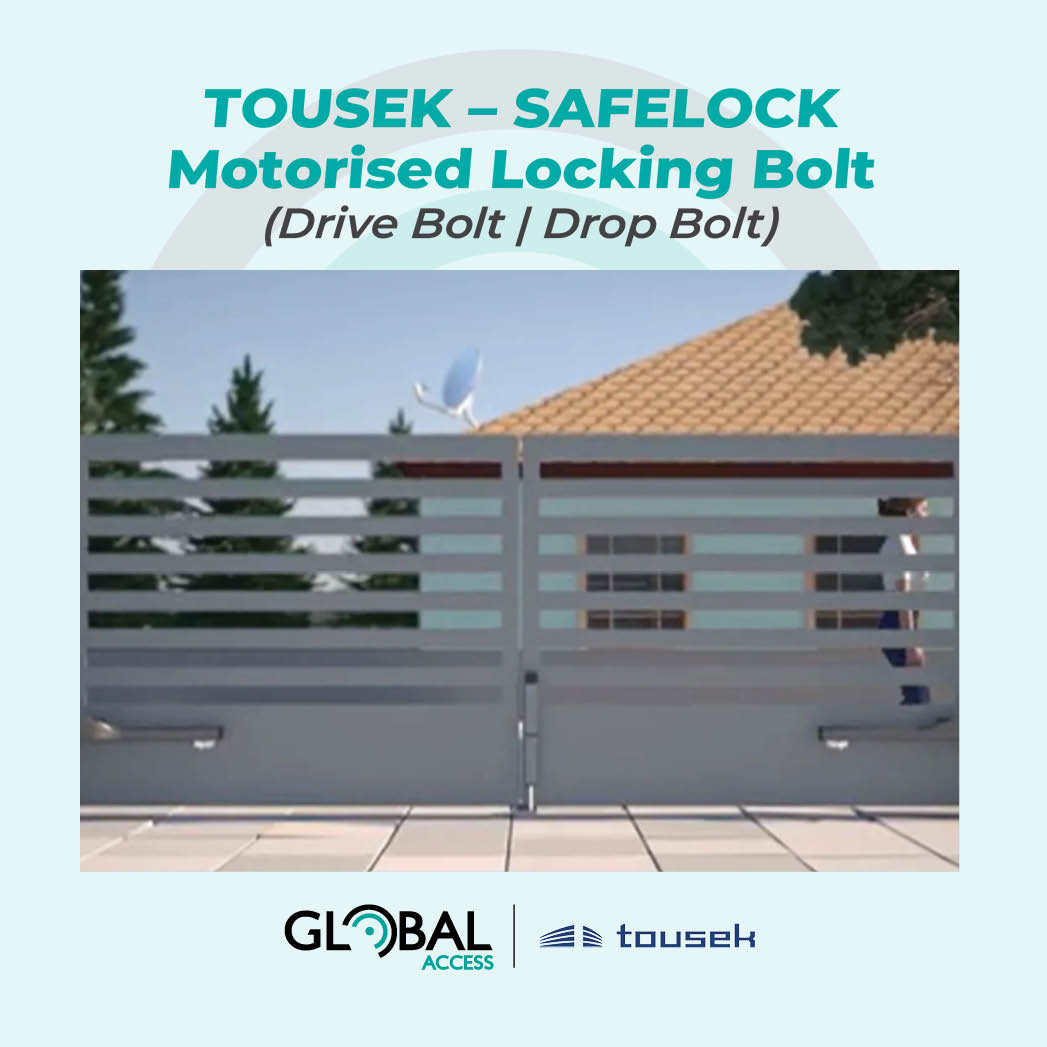

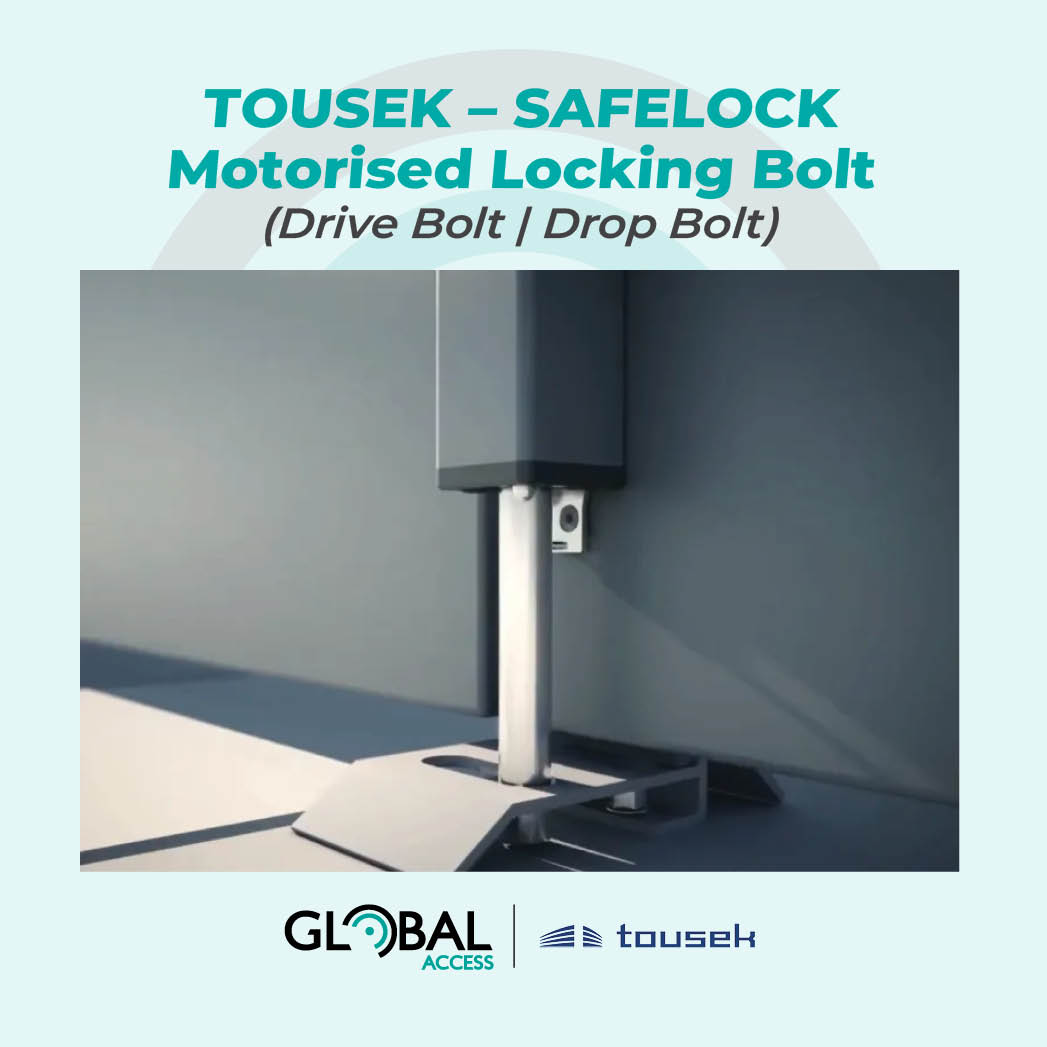

The TOUSEK SAFELOCK motorised locking drop-bolt is motorised in both directions, offering the ultimate in gate locking security!
Heavy Duty electric, worm-driven lock, with 125 mm stroke and Ø23mm shaft.
• Powder-coated aluminum housing
• Control unit includes inbuilt power supply

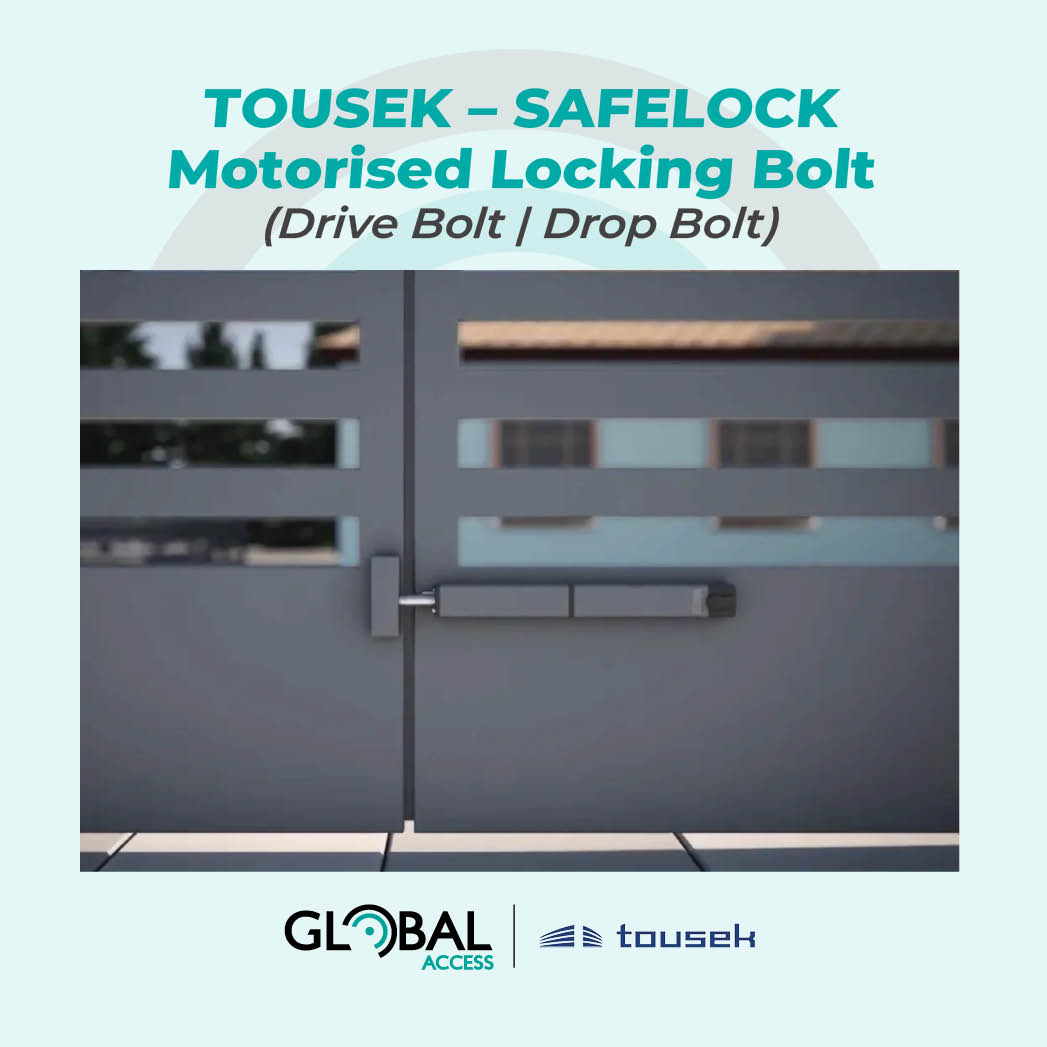

• Can be used Vertically OR Horizontally

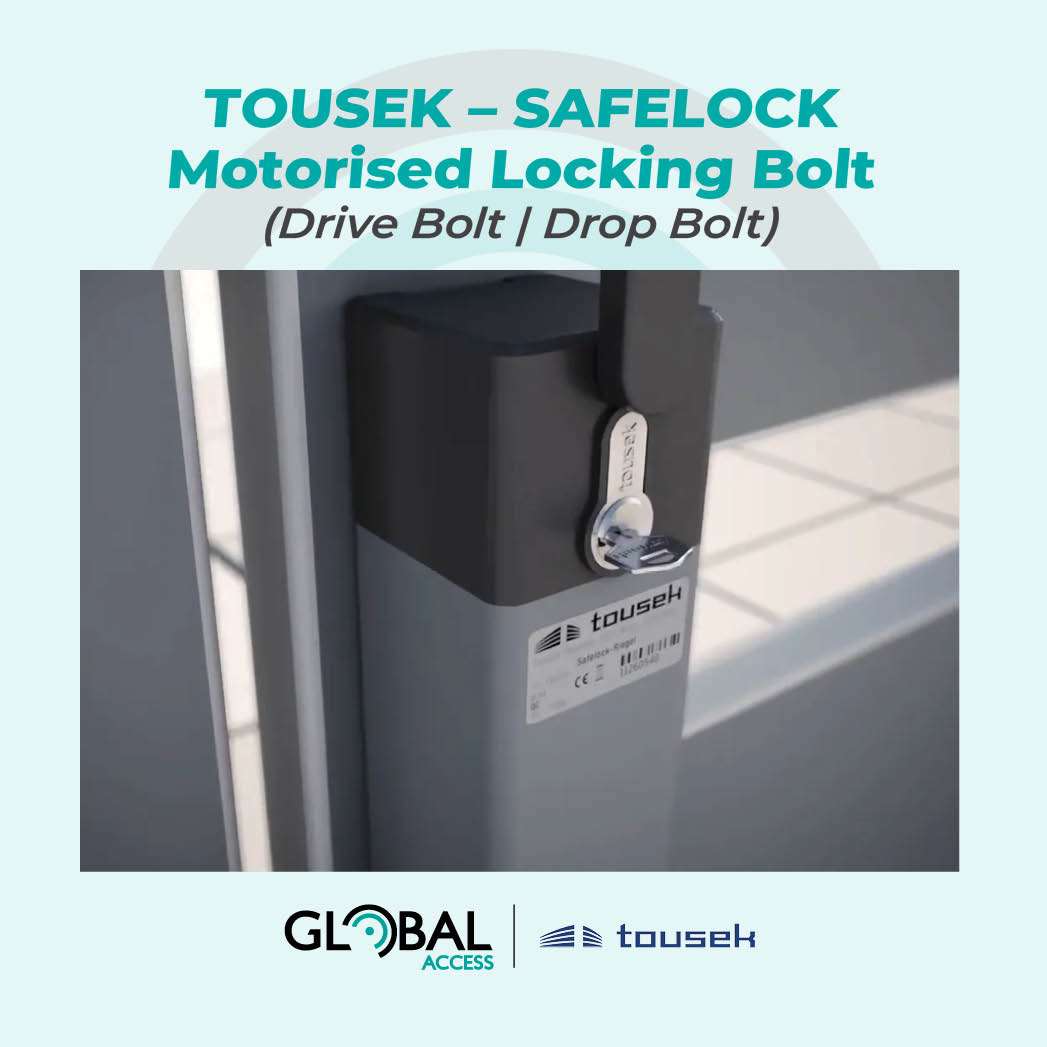

• Emergency release (including 3 keys)
• Limit switch for “bolt retracted”
• Automatic obstacle reversing
• Includes 1m 4-pin cable
• Bolt lifting Force; 200N
• Speeds; 2.5 second drop, 2 second retraction
BODY/HOUSING DIMENSIONS:
– 561mm L x 60mm W x 68mm D (not including the drive shaft)
AVAILABLE IN SINGLE AND DOUBLE KITS AS FOLLOWS:
– 1045-0030 – [Single Kit] Suit Most Motors – Locking Bolt 23mm Safelock with Control Unit
– 1045-0031 – [Double Kit] Suit Most Motors – Locking Bolt 23mm Safelock with Control Unit
IMPORTANT NOTE:
• If you’re unsure of which unit to order, please contact us to discuss
• Latch control function required
