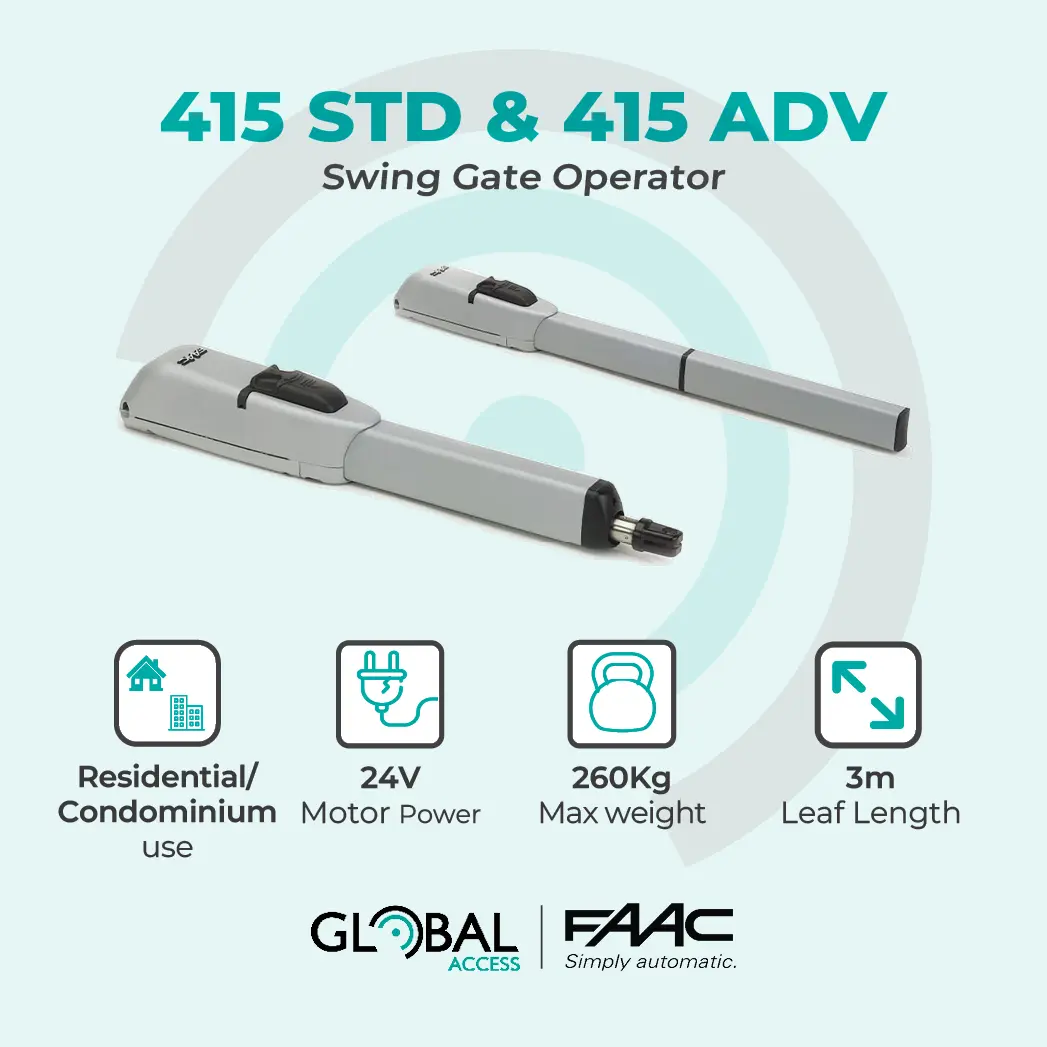

FAAC 415 24v Electric Swing Gate Motor – STANDARD & ADVANCED

The FAAC 415 Swing Gate Operator is fantastic for use on swing gates with leaves up to 3m in length

• Solar Kit Friendly for E034 Control Board, not suitable for E124s Control Board
• 290mm Stroke
• Optional Encoder / Safecoder available
• Optional ‘Protective’ cover is available for the shaft / arm
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

STANDARD VARIANTS – Up to 25% Wind Loading

DOUBLE KIT:
1656-0007 – 2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x  Transmitters, E034 Control Board in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available

SINGLE KIT:
1656-0015 1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x  Transmitters, E034 Control Board in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available

ADVANCED VARIANTS – Up to 50% Wind Loading

DOUBLE KIT:
2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x  Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available

SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x  Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plugOptional Transformer in Separate Enclosure is available

ADVANCED VARIANTS – WITH LIMIT SWITCHES – Up to 25% Wind Loading

DOUBLE KIT:
2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x  Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plugOptional Transformer in Separate Enclosure is available

SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x  Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plugOptional Transformer in Separate Enclosure is available

IMPORTANT NOTES

• Standard kits require physical ground stops in both open and closed positions!
• Advanced kits require Limit Switches OR Safecoder
