Bircher EasyLoop D

Solutions and Functions
Technical Data
Documents and Downloads
Video
Bircher EASYLOOP D - above-ground vehicle detection solution
Bircher EASYLOOP D

Bircher EasyLoop D

SKU: 5159-0021

Login to view pricing

Login

Virtual Loop Radar Sensor for Vehicle Detection

The EasyLoop is a state-of-the-art virtual loop sensor for vehicle detection, designed to efficiently manage entrances and exits in parking lots, commercial areas and beyond. Thanks to FMCW (Frequency-Modulated Continuous Wave) radar technology and compact design, it ensures reliable and accurate detection, even in the most adverse conditions.
Add to Quote
Share This Items :

Product Highlights

No Ground Works

Virtual loop technology enables fast, above-ground installation

Smart App Setup

Easy setup, adjustment, and diagnostics on mobile

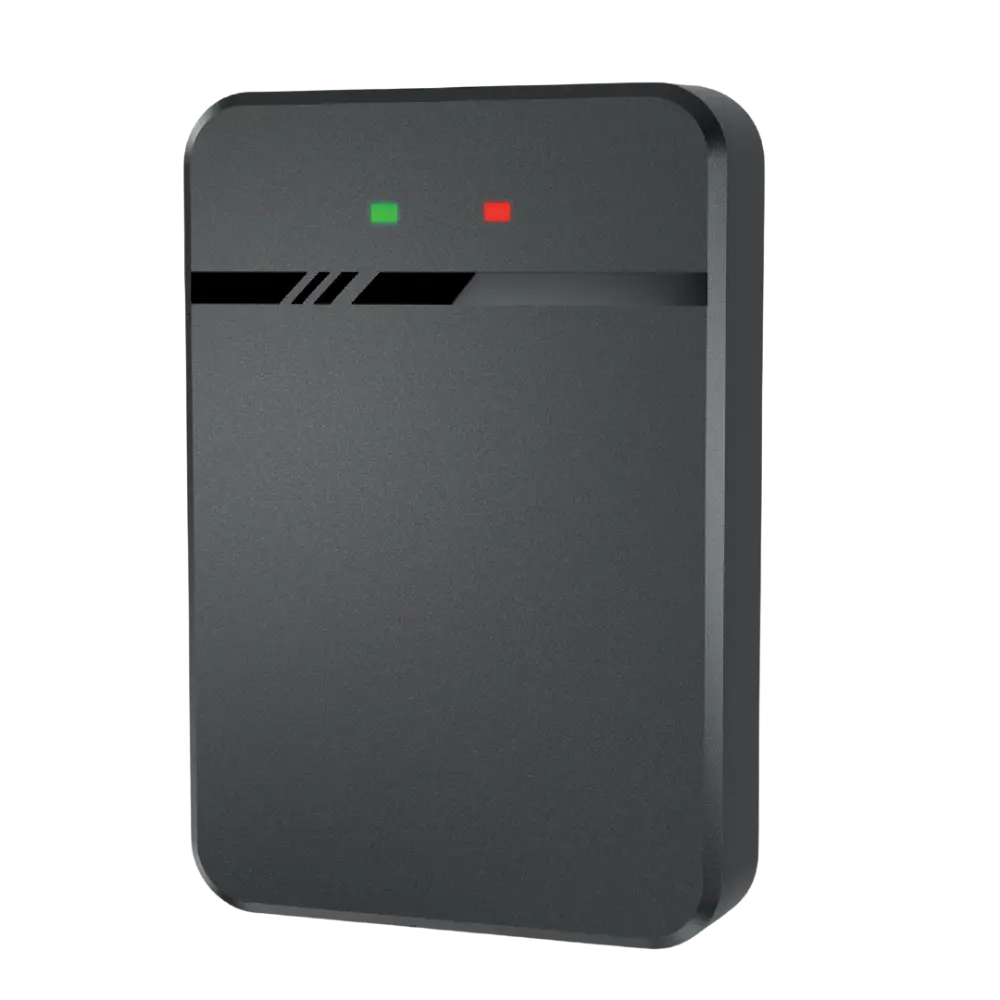

BBC Bircher Australia EasyLoop

All-Weather Reliability

Stable performance in rain, fog, snow, and dust

Accurate Detection

Filters pedestrians and reduces false triggers for safer operation

Solutions and Functions

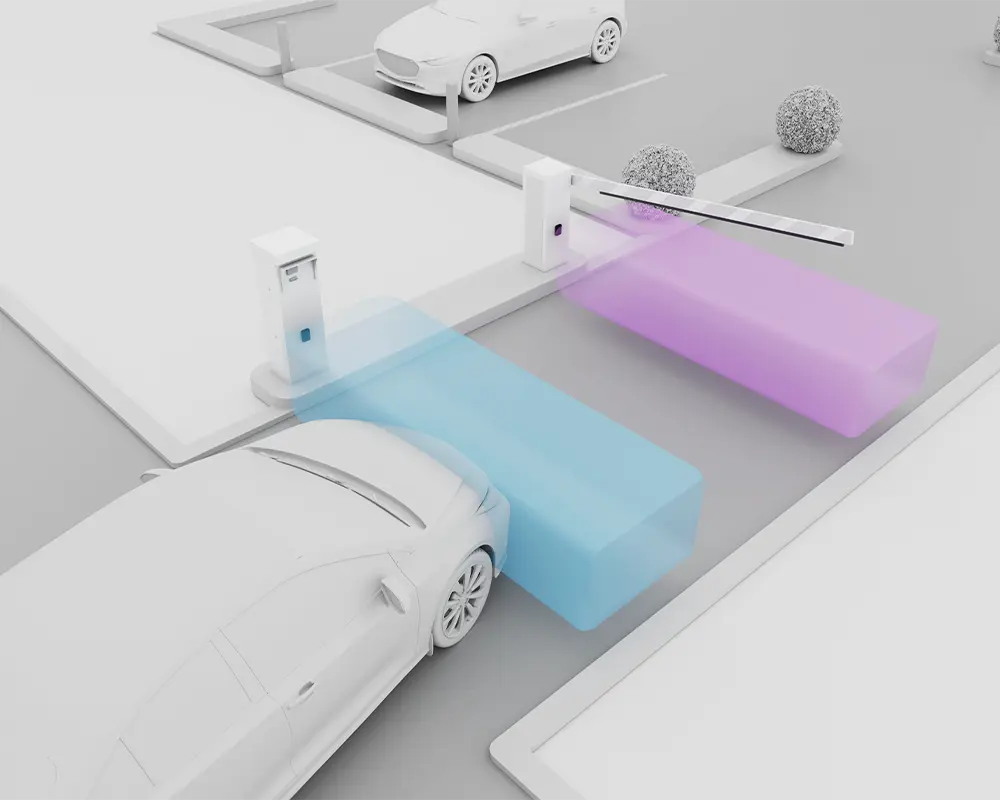

Activation & Presence Detection

EasyLoop is used as an activation sensor in ticketing, parking, toll, and sliding gate systems, with adjustable sensitivity to detect vehicles only or both vehicles and pedestrians. Its uni- and bidirectional detection helps prevent tailgating and unauthorized access. It also provides reliable presence detection for safety, protecting vehicles, pedestrians, and objects across barrier types such as simple barriers, articulated or folding boom barriers, and barriers with hanging or grid systems.

Simple Installation & Reliable Operation

EasyLoop provides stable, all-weather performance unaffected by lighting conditions, ensuring reliable activation, presence detection, and collision avoidance. It operates without physical induction loops by using a customizable radar field as a virtual loop, and can be mounted on posts or barrier housings, eliminating ground works and risks from damaged or aging loops.

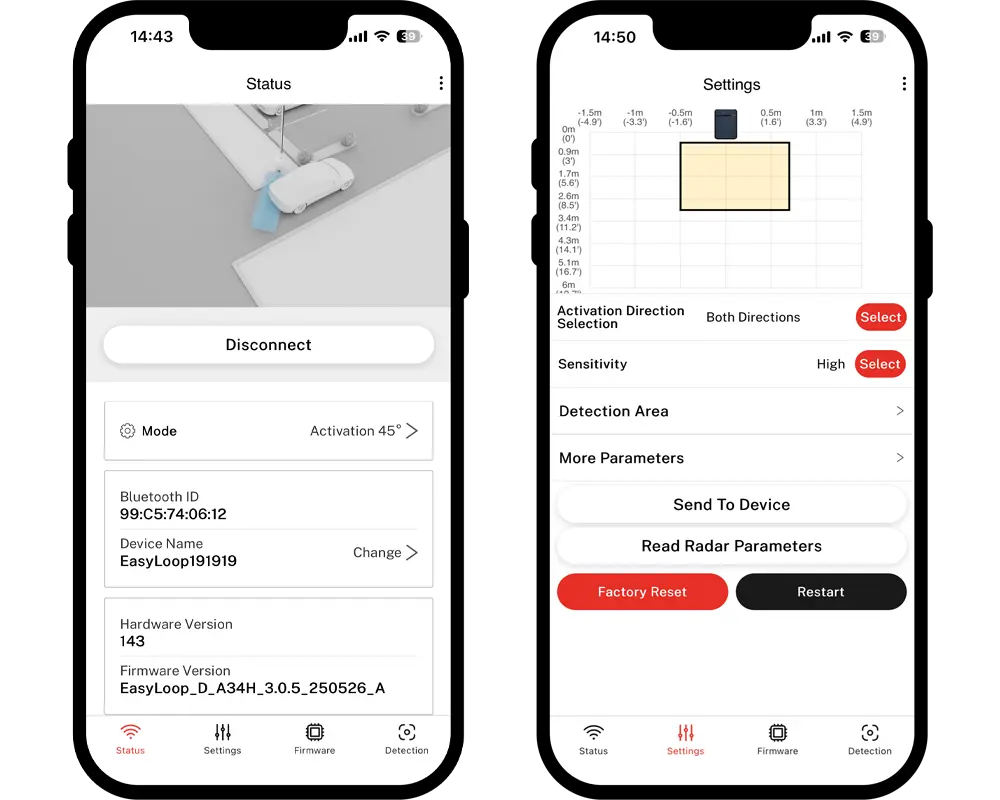

EasyLoop Mobile App

The EasyLoop Mobile app makes setting up the sensor quick and effortless, giving users full control directly from their smartphone. With an intuitive user interface, real-time adjustments and easy access to documentation and firmware updates, it ensures smooth installation and maximum flexibility in any application.

Product Video

Country: Switzerland

Dimensions: 108L × 74W × 17D mm

Use: Vehicle or Pedestrian Use

Type: Activation or Safety Sensor

Mounting Height: min. 650 mm, max. 800 mm

Material: PC, PBT, GF20, ABS

Technology: Radar FMCW

Transmission Frequency: Microwave 79 GHz

Output: NO/NC dual relay

Operating Voltage12/24v DC (12v/1amp preferred)

Temperature Range: –40 °C to + 85 °C

Eliminate ground loops. Eliminate downtime. Upgrade to intelligent vehicle detection.

The EASYLOOP D is a next-generation virtual loop radar sensor that delivers precise, reliable detection for gates, barriers, and parking systems—without the need for invasive installation. Powered by advanced FMCW radar technology, it ensures seamless traffic flow, improved safety, and reduced operational costs in any environment.

  • No Ground Works Required
    Above-ground “virtual loop” installation removes the need for cutting or wiring into surfaces—reducing installation time and cost.
  • High-Precision Radar Detection (60–79 GHz)
    Accurately detects vehicles while filtering out pedestrians, ensuring reliable activation with minimal false triggers.
  • Dual Function: Activation & Presence Detection
    Controls access points while preventing barrier closure on vehicles or obstacles for enhanced safety.
  • All-Weather Performance (IP66 Rated)
    Delivers consistent detection in rain, dust, fog, or extreme conditions—ideal for outdoor installations.
  • Smart Detection Intelligence
    Learns its environment and focuses only on relevant zones to eliminate false alarms and optimise performance.
  • Flexible Mounting & Detection Range
    Adjustable detection field and mounting options (pole or barrier-mounted) for maximum deployment flexibility.
  • Mobile App Configuration
    Configure sensitivity, range, and operation modes in real time via a user-friendly mobile app.
  • Anti-Collision & Safety Protection
    Prevents accidental barrier closure and protects vehicles, pedestrians, and infrastructure.
  • Power Failure Safety Response
    Automatically keeps barriers open if a vehicle is detected during power instability.



Smarter detection. Faster installation. Safer access control without the cost of traditional loops.

Downloads

  • Bircher EasyLoop D Manual
Download
  • Bircher EasyLoop D Brochure
Download
  • Bircher EasyLoop Rapid Guide
Download

Product FAQs

What is EasyLoop used for?
EasyLoop is a radar-based virtual loop sensor used for activation and presence detection in parking, toll, barrier, and access control systems.
No. EasyLoop replaces traditional ground loops with a virtual radar detection field, eliminating excavation and installation work.
Yes. Detection sensitivity can be adjusted to trigger either vehicles only or both vehicles and pedestrians, depending on the application.
It can be mounted on posts or directly on barrier housings, with flexible angle options including 90° and 45° installation.
