Bircher TopScan

SKU: 5159-0019

Login to view pricing

Login

Reliable Presence Detection for Safer Automatic Doors

Protect people while keeping traffic flowing efficiently with the BBC Bircher TopScan. Designed for automatic swing and revolving doors, TopScan continuously monitors the door area using active infrared technology to detect both stationary and moving objects. Its compact design blends seamlessly into modern door systems while offering simple installation, flexible adjustment and dependable safety performance in commercial and industrial environments.
Add to Quote
Share This Items :

Product Highlights

Slimline Design

Smallest in its class.

Adjustable Detection

Fine-tune the scanning field easily.

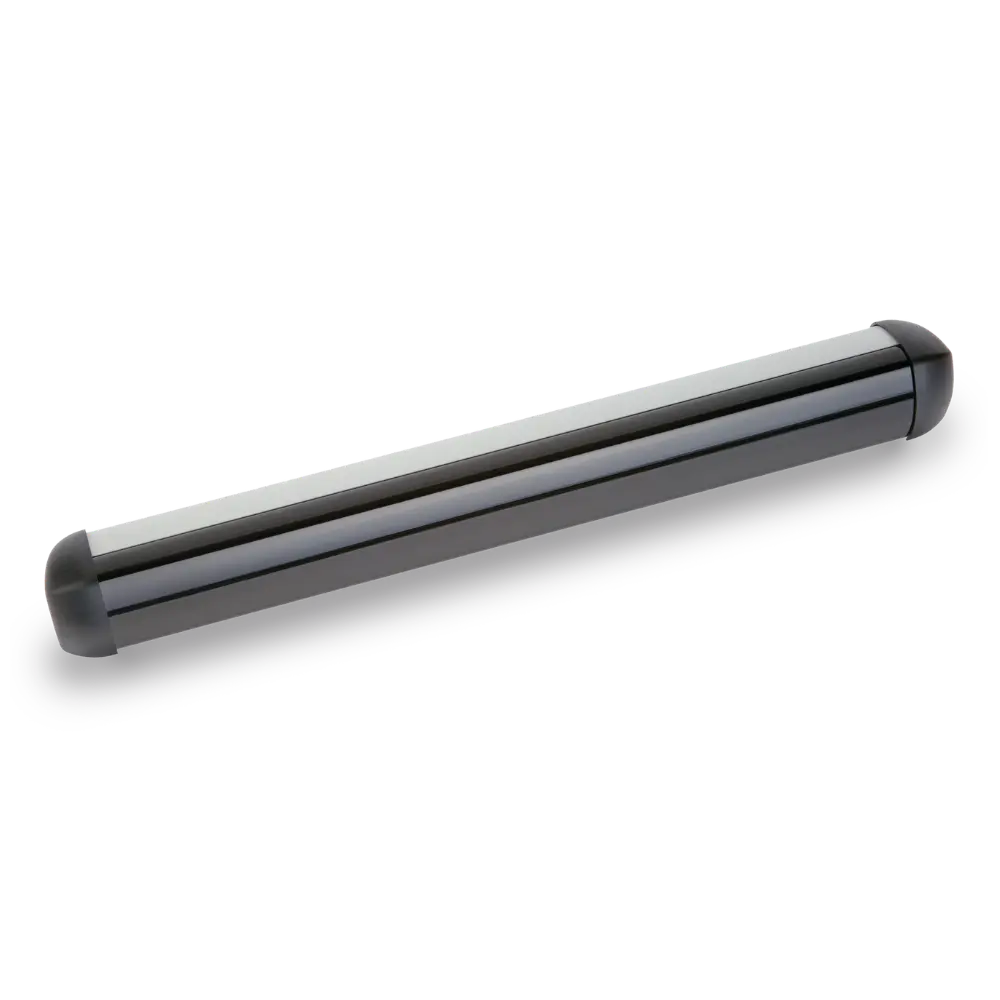

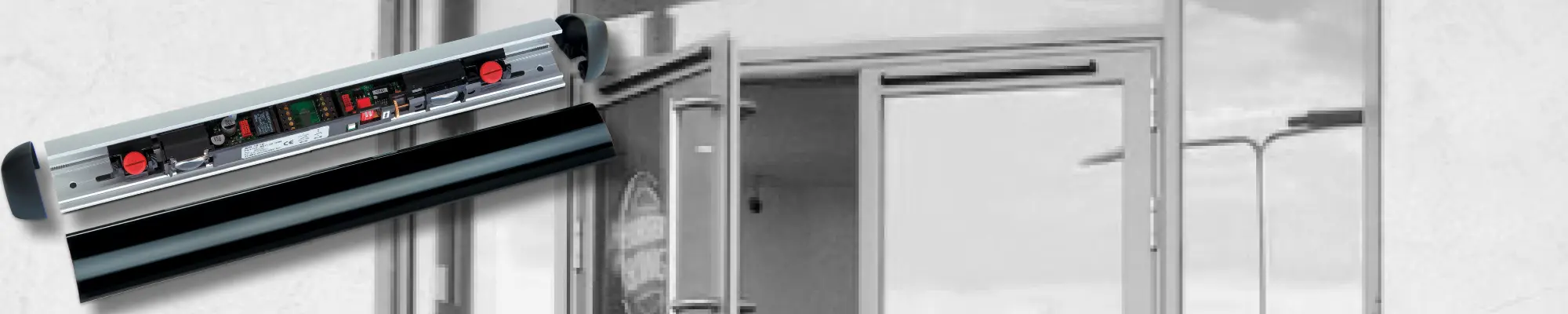

BBC Bircher TopScan

Fast Installation

Quick setup without special tools.

Reliable Protection

Detects people and objects accurately.

Solutions and Functions

Reliable Presence Detection

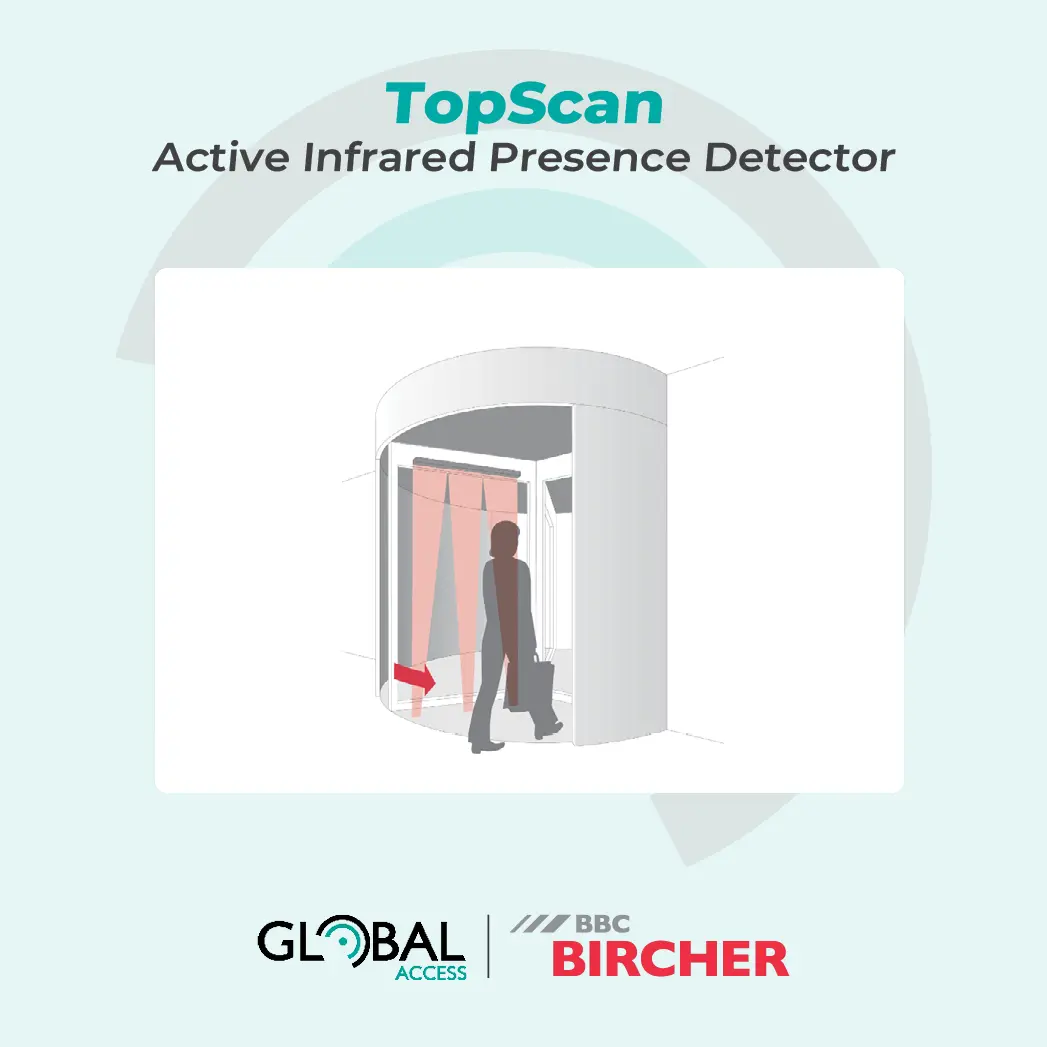

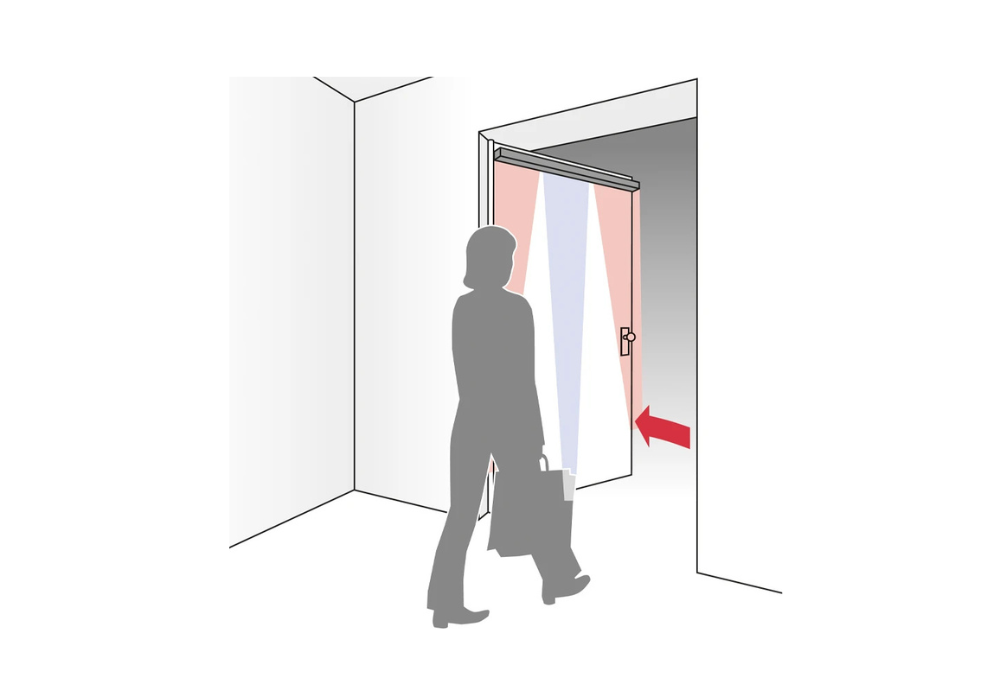

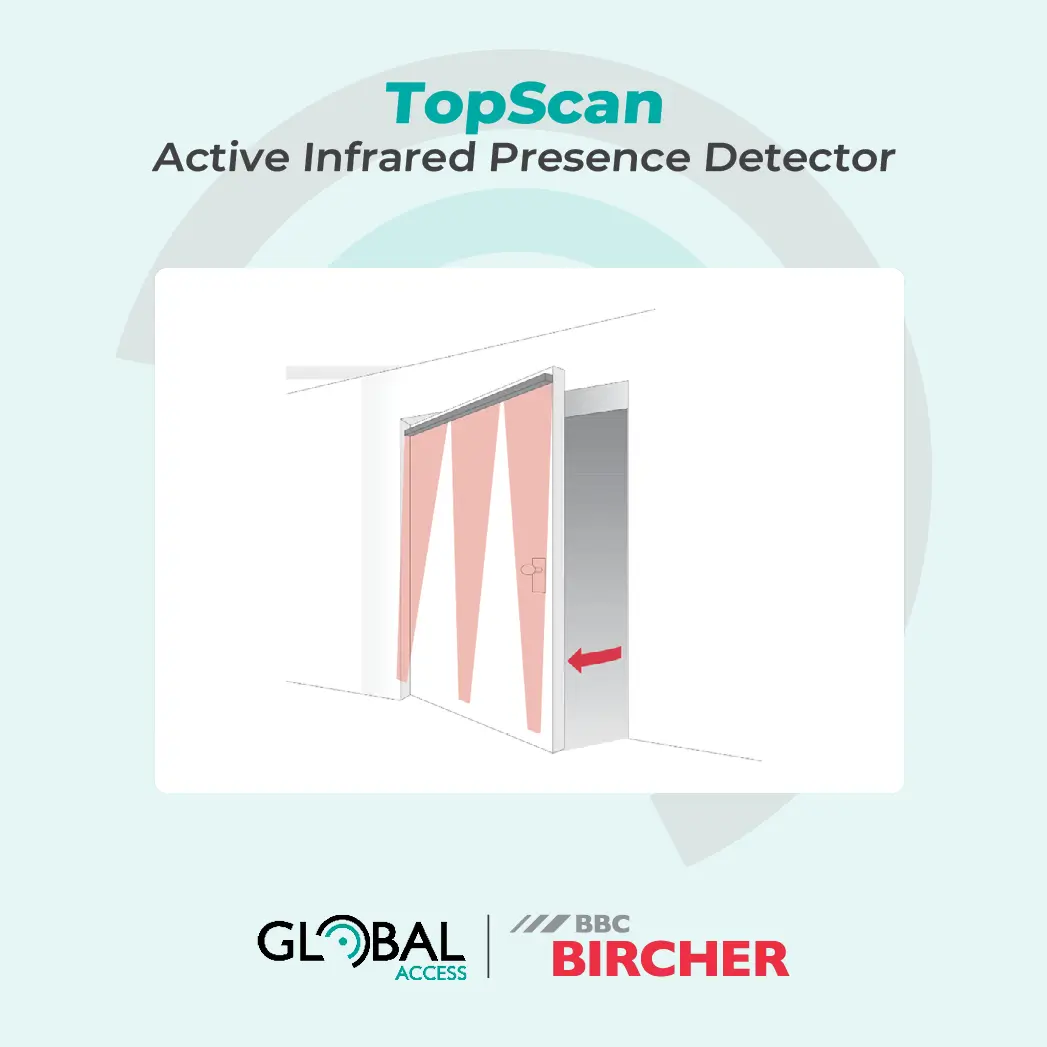

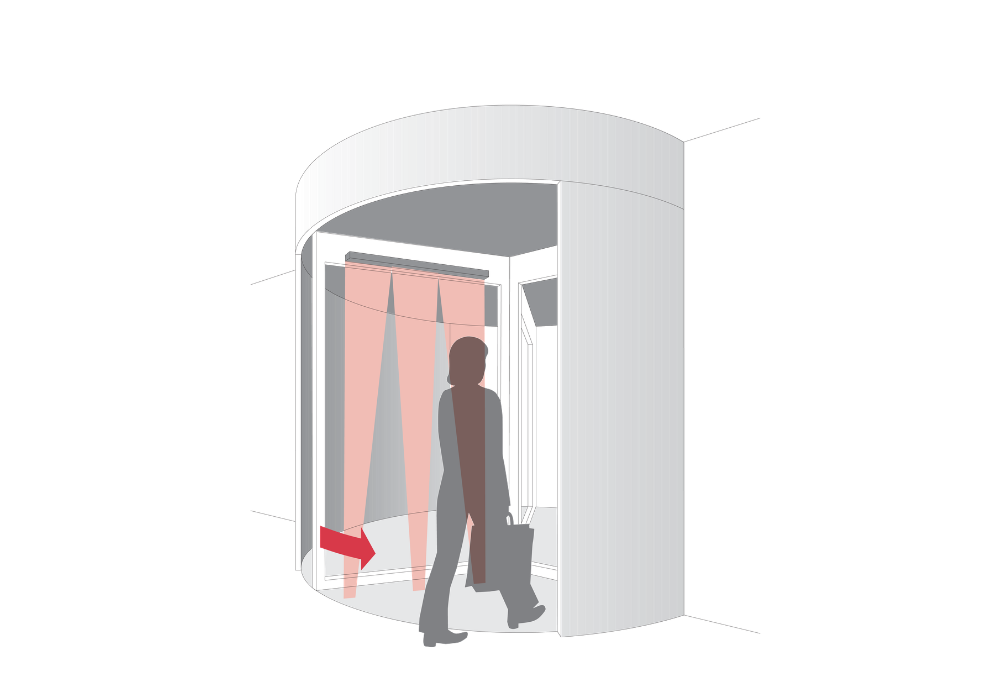

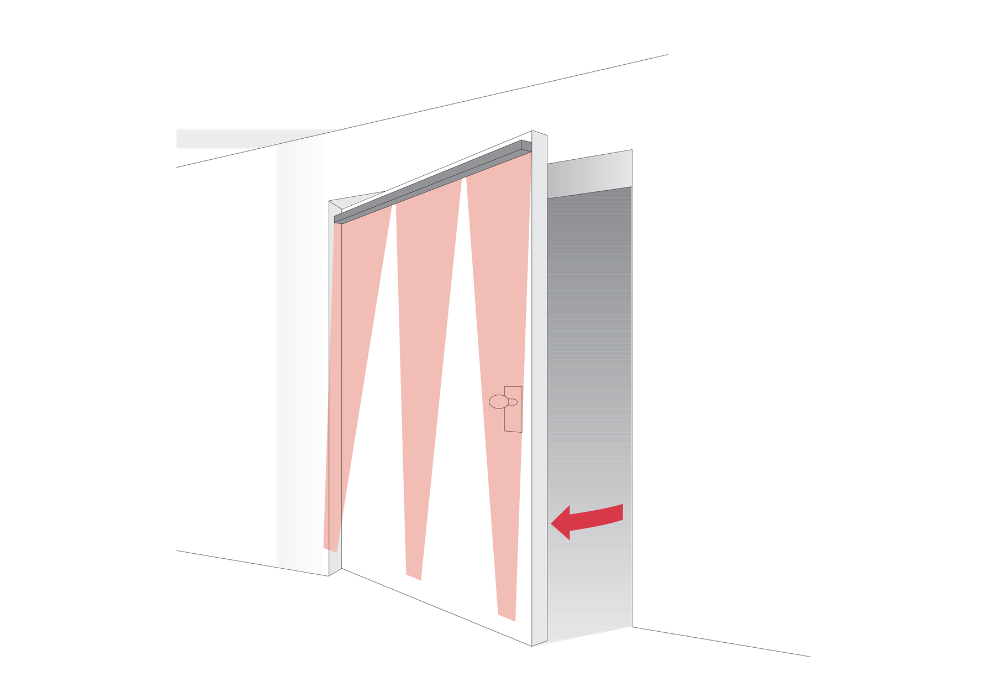

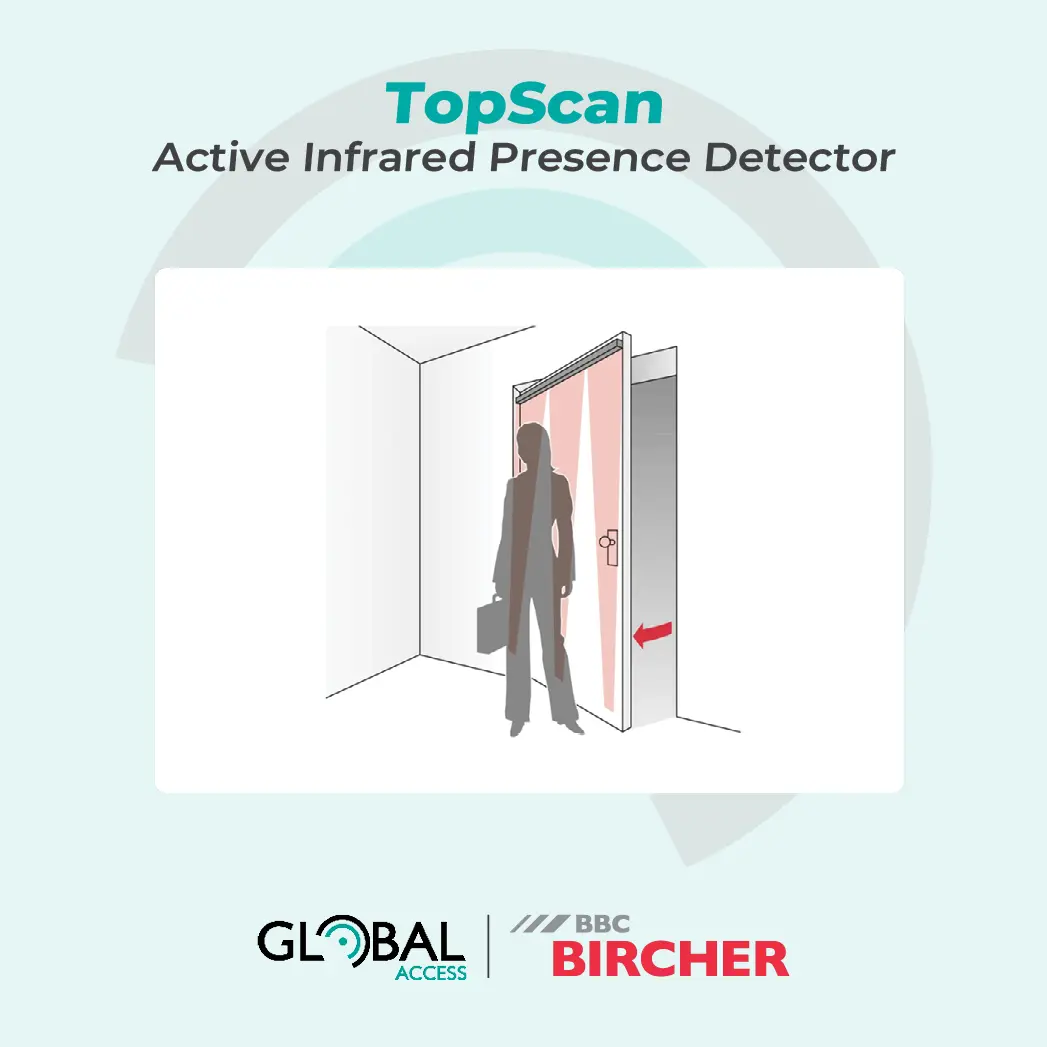

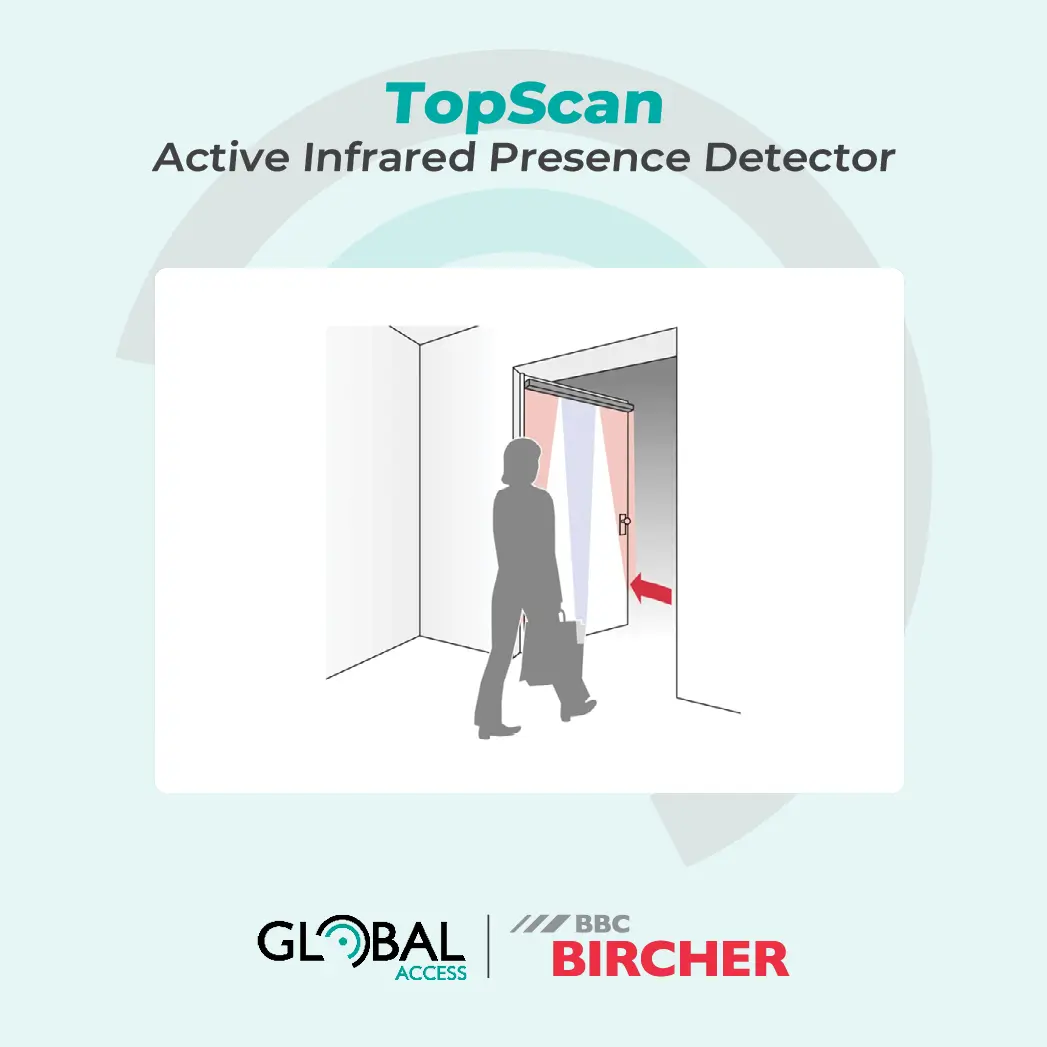

TopScan uses active infrared technology to reliably detect stationary and moving people, animals and objects within the door area. Its primary purpose is to prevent contact with moving swing and revolving doors, improving user safety while maintaining smooth pedestrian traffic. The sensor can also be configured as an opening sensor for selected applications.

Fast Installation and Easy Adjustment

Designed to minimise installation time, TopScan features tool-free scanning range adjustment, a precision angle adjustment system and a patented mounting support for secure installation. Calibration is quick, allowing installers to commission the sensor efficiently with minimal downtime.

Flexible for Every Door Application

Available in multiple profile lengths and beam configurations, TopScan can be tailored to suit a wide range of automatic swing and revolving door installations. Its robust aluminium construction, IP54 protection and resistance to environmental influences make it suitable for demanding commercial and industrial environments.

Country: Switzerland

Dimensions: Sensor Dimension: 198.5 × 31 × 20 mm

Use: Automatic door sensor

Type: Safety Sensor

Material: Aluminium / ABS

Technology: IRED (Active infrared)

Temperature Range: –20 °C to +60 °C

Air Humidity: Max. 95% relative, non-condensing

BBC Bircher TopScan Swing Door Safety Sensor

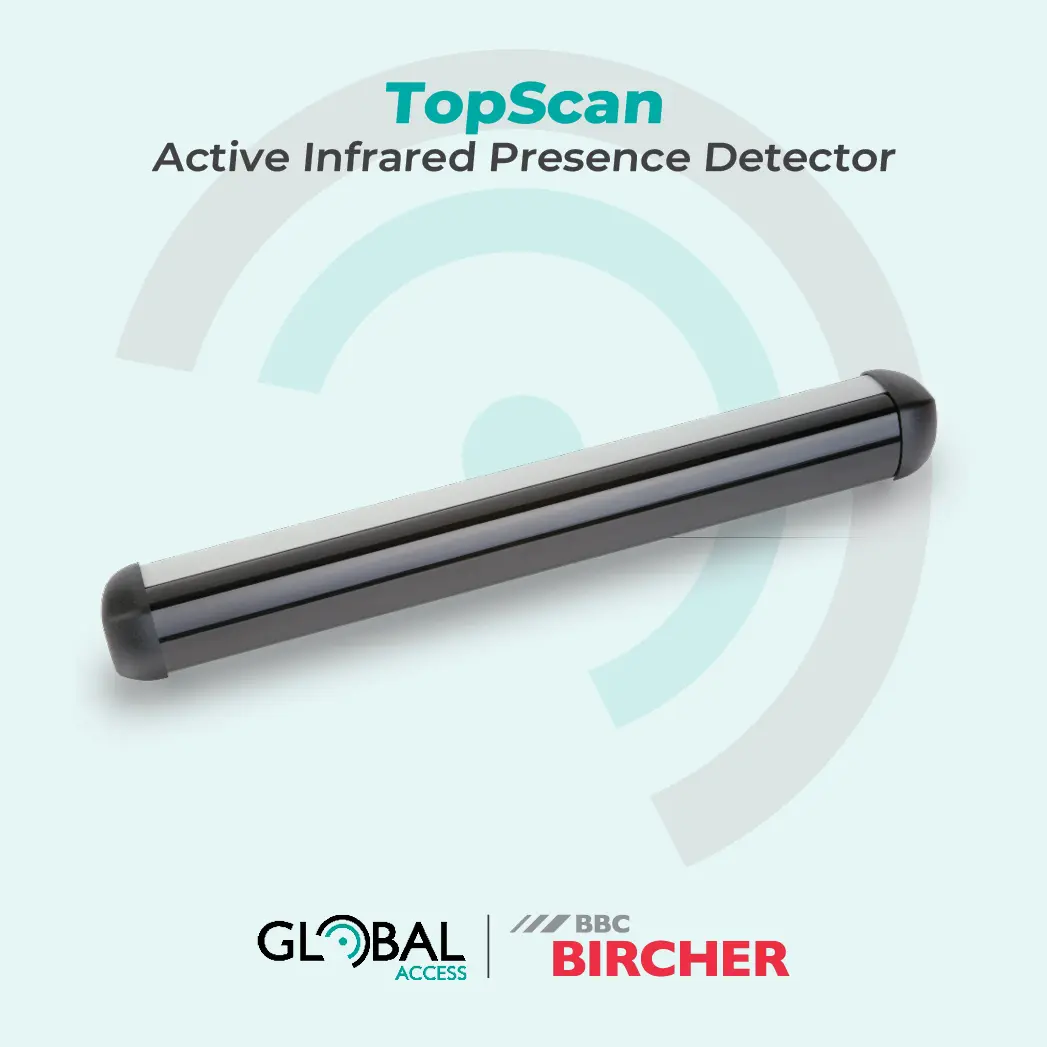

The BBC Bircher TopScan is a compact active infrared presence detector designed to provide reliable safety protection for automatic swing and revolving doors. Featuring an ultra-slim profile, adjustable detection field and fast commissioning, TopScan helps safeguard door users while blending seamlessly into modern entrances. Suitable for a wide range of commercial and industrial applications, it delivers dependable performance in demanding environments.

Key Features

  • Active infrared presence detection
  • Protects automatic swing and revolving doors
  • Ultra-slim aluminium housing
  • Tool-free adjustable detection field
  • Detects stationary and moving objects
  • Fast installation and commissioning
  • Can be configured as an opening sensor
  • Suitable for commercial and industrial applications

Technical Specifications

  • Supply Voltage: 18–28V AC/DC
  • Protection Rating: IP54
  • Recommended Mounting Height: 1.7–2.7m
  • Detection Coverage: 400 × 70mm

Downloads

  • BBC Bircher TopScan Manual
Download
  • BBC Bircher TopScan Brochure
Download

Product FAQs

What is the BBC Bircher TopScan used for?
TopScan is an active infrared presence detector designed to provide safety protection for automatic swing and revolving doors by detecting people and objects within the door area.
Yes. TopScan detects both stationary and moving people, helping prevent accidental contact with moving doors.
Yes. The scanning range and operating modes can be adjusted easily without special tools using the integrated adjustment wheel and DIP switches.
Yes. Its robust construction and IP54 protection rating make it suitable for both commercial and industrial applications.
