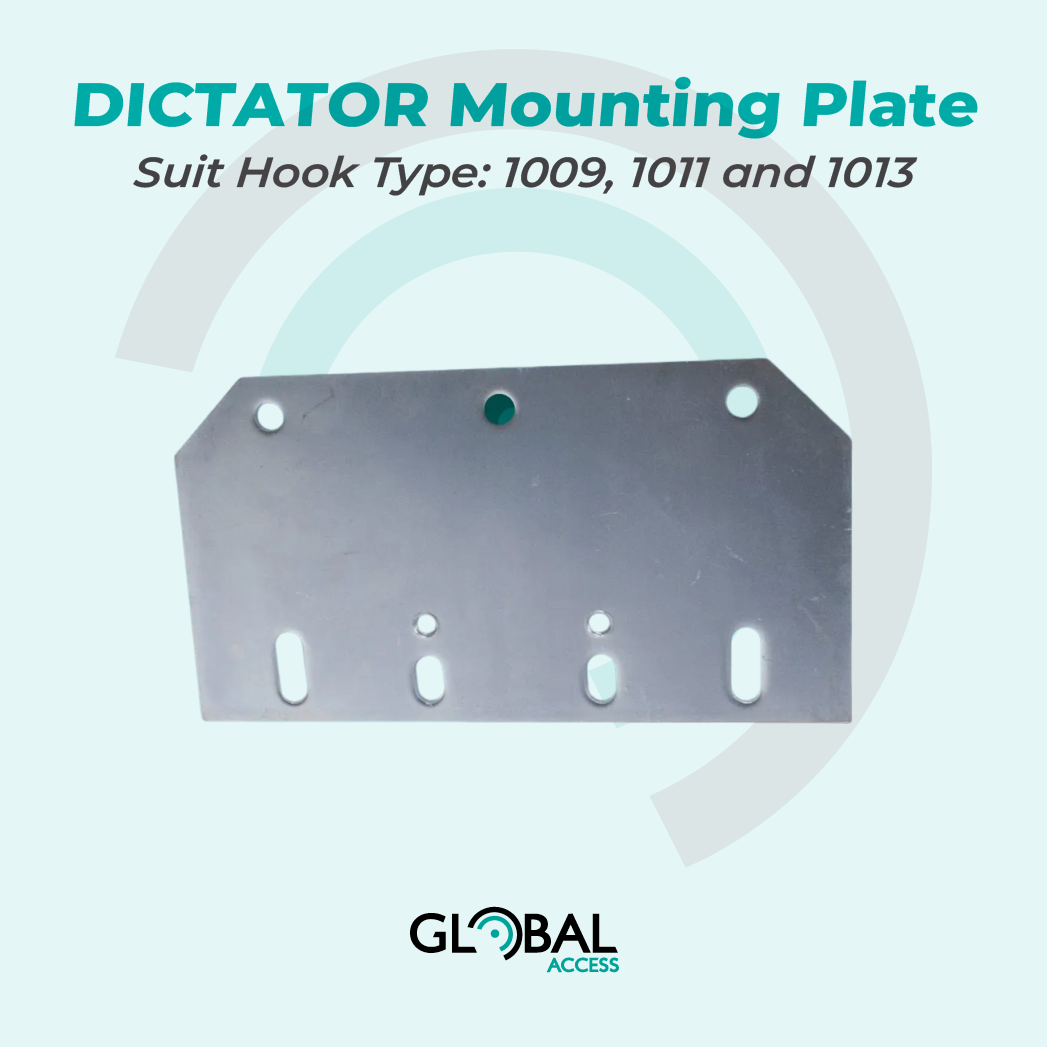

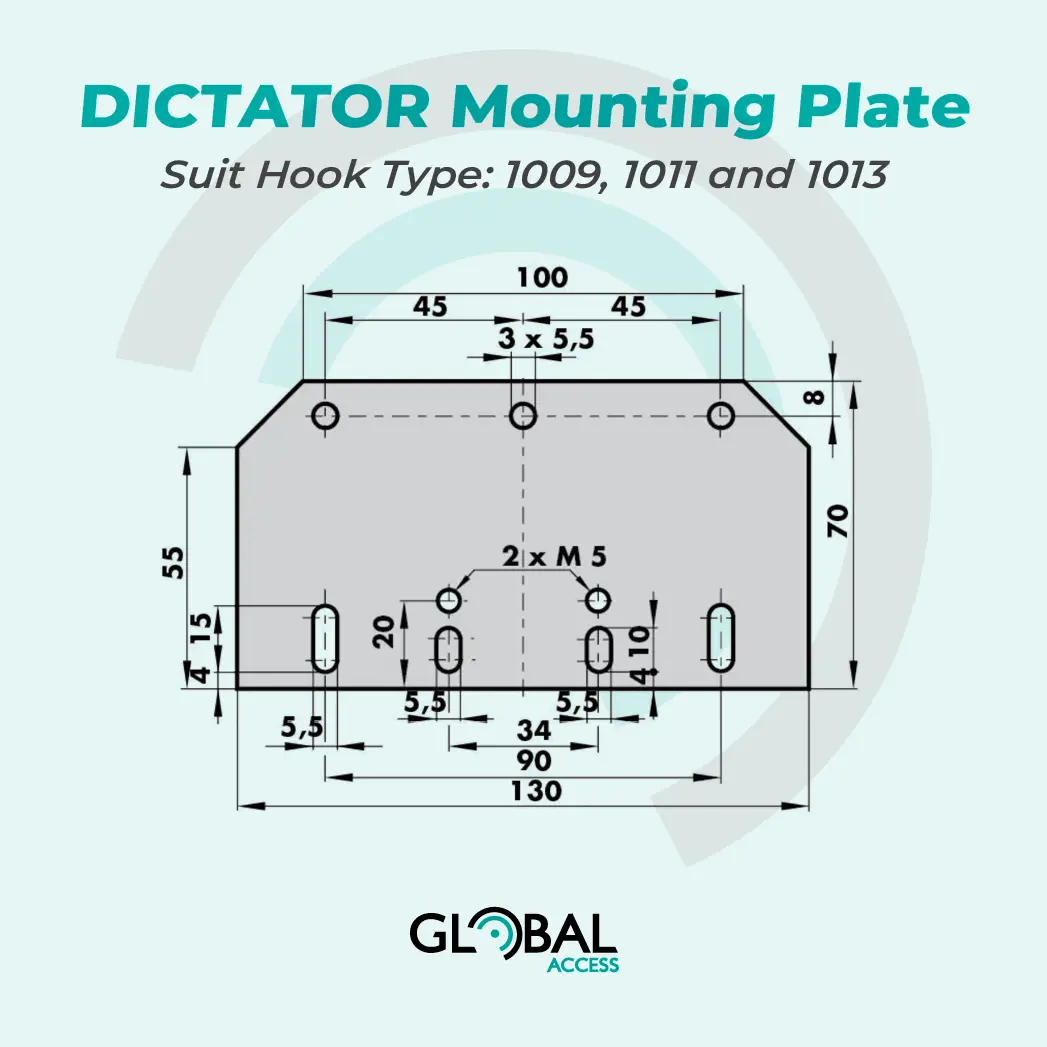

DICTATOR Mounting Plate – Suit Hook Type: 1009, 1011 and 1013

DICTATOR Mounting Brackets for Horizontal installation of DICTATOR VS 2000 Door Dampers on Aluminium OR Flush Doors!

• 3mm Thick
• Zinc Plated Steel
• For use on Aluminium + Steel Doors, Timber Doors, Fire Doors and Glass Doors

• Fixing to steel doors, use 4mm Ø x 12mm Steel Rivets using the holes provided
• Fixing to timber and fire doors, use 5mm Ø flat-head screws using the holes provided
• Fixing to glass doors, us 3M VHB (Very High Bond) Tape

Available in the following variations:
• 1018-0163 – Mounting Plate for Horizontal installation of VS 2000 Door Dampers
• 1018-0164 – Mounting Bracket for Horizontal installation of VS 2000 Door Dampers on Flush Doors
