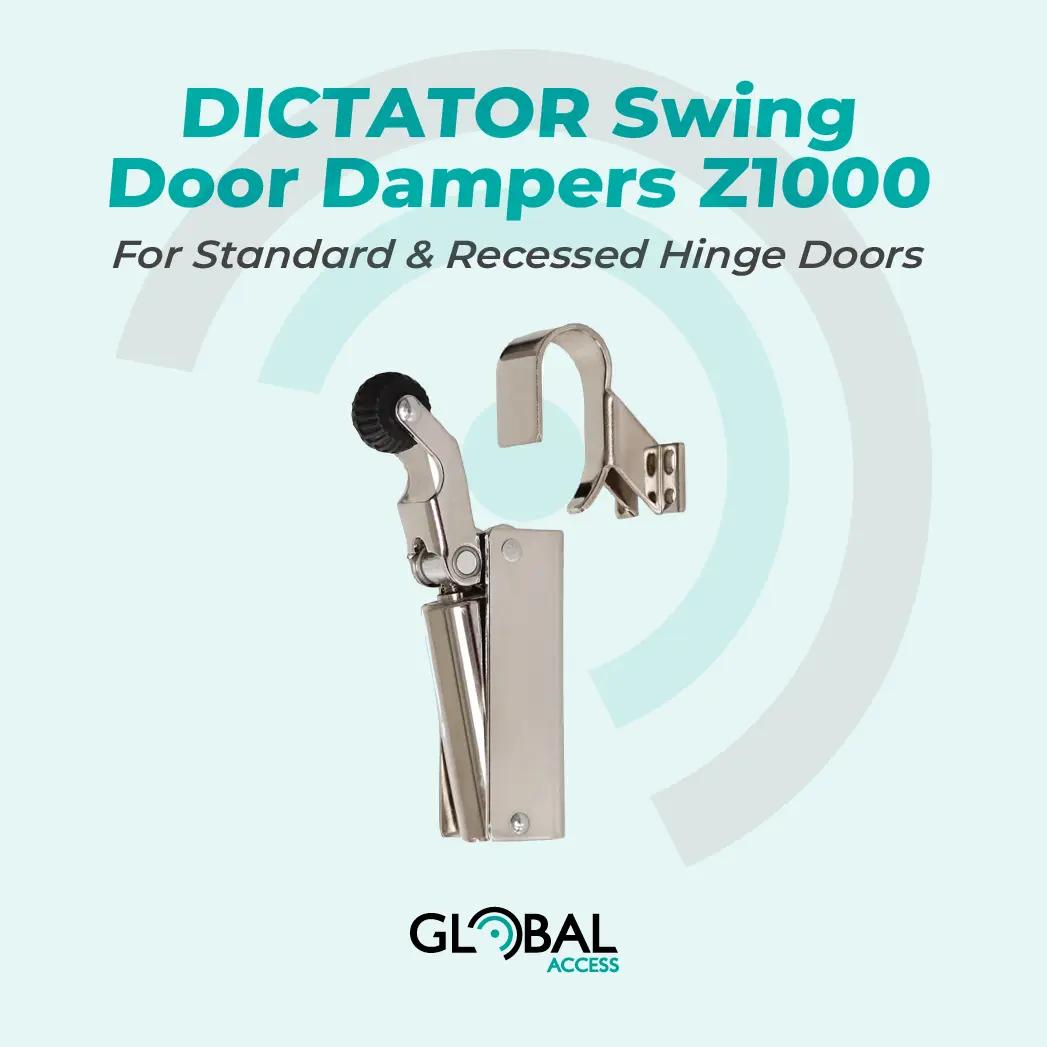

DICTATOR Swing Door Dampers for Standard & Recessed Hinge Doors (Z1000)

Inexpensive basic model for lightweight doors

DICTATOR Swing Door Dampers for Standard & Recessed Hinge Doors, with 1011 (for Recessed Doors) OR 1009 Hook (for Flush Doors).

For use on interior and exterior doors, including fire-protection doors.

• Slows down the speed of a shutting door
• Gently and Smoothly pulls the door into the closed position
• Tested for use on fire-protection doors
• Chrome plated body

Available in the following variations:
• 1018-0146 – Recessed Hinge – Z1000, Nickel Plated, Closing Force: 20N – 1011 Hook
• 1018-0147 – Recessed Hinge – Z1000, Nickel Plated, Closing Force: 50N – 1011 Hook
• 1018-0172 – Standard Hinge – Z1000 Horizontal Mount, Zinc Plated, Closing Force: 20N – 1009 Hook
• 1018-0173 – Standard Hinge – Z1000 Horizontal Mount, Nickel Plated, Closing Force: 50N – 1009 Hook

NOTES:

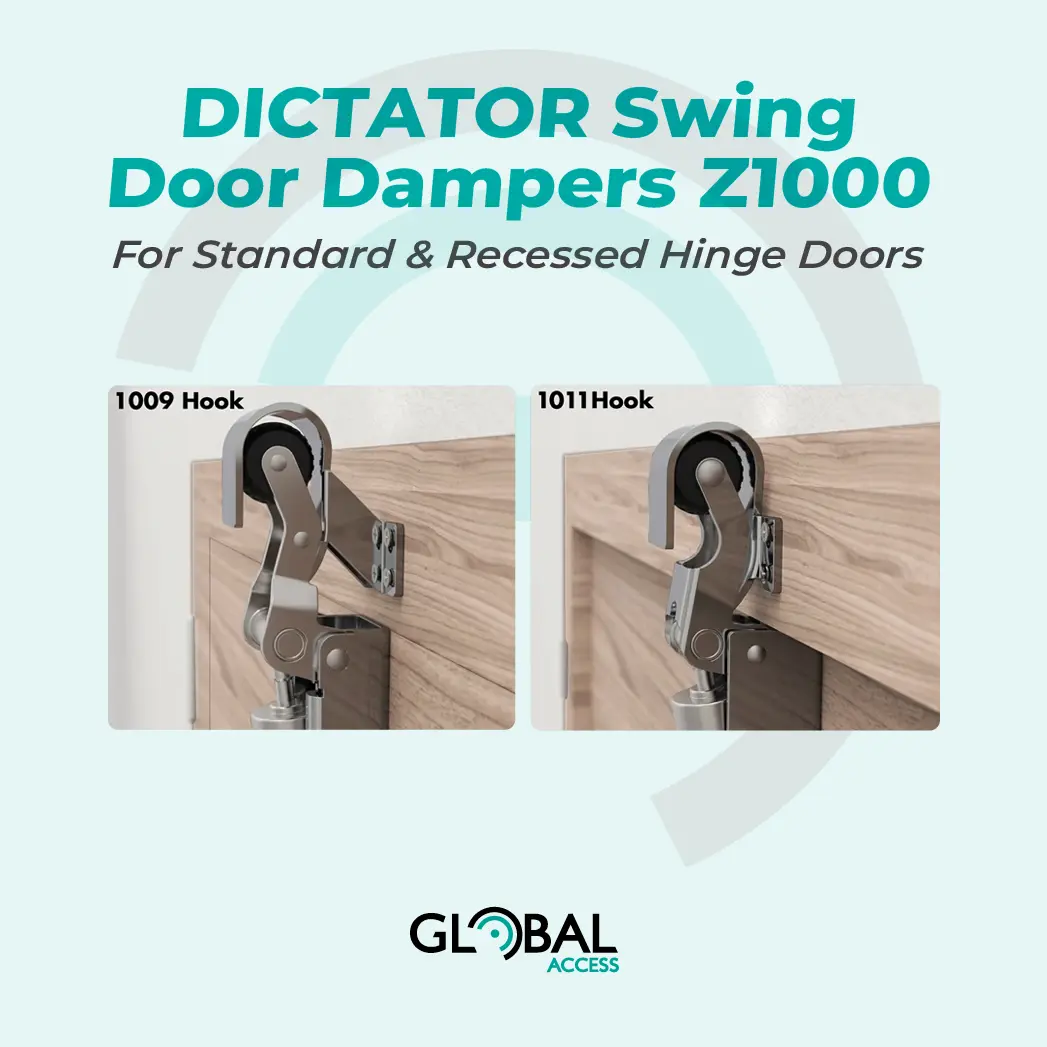

• Hook 1009 is for Flush Doors (-4 to +14mm)
• Hook 1011 is for Flush Doors (-4 to -20mm)
