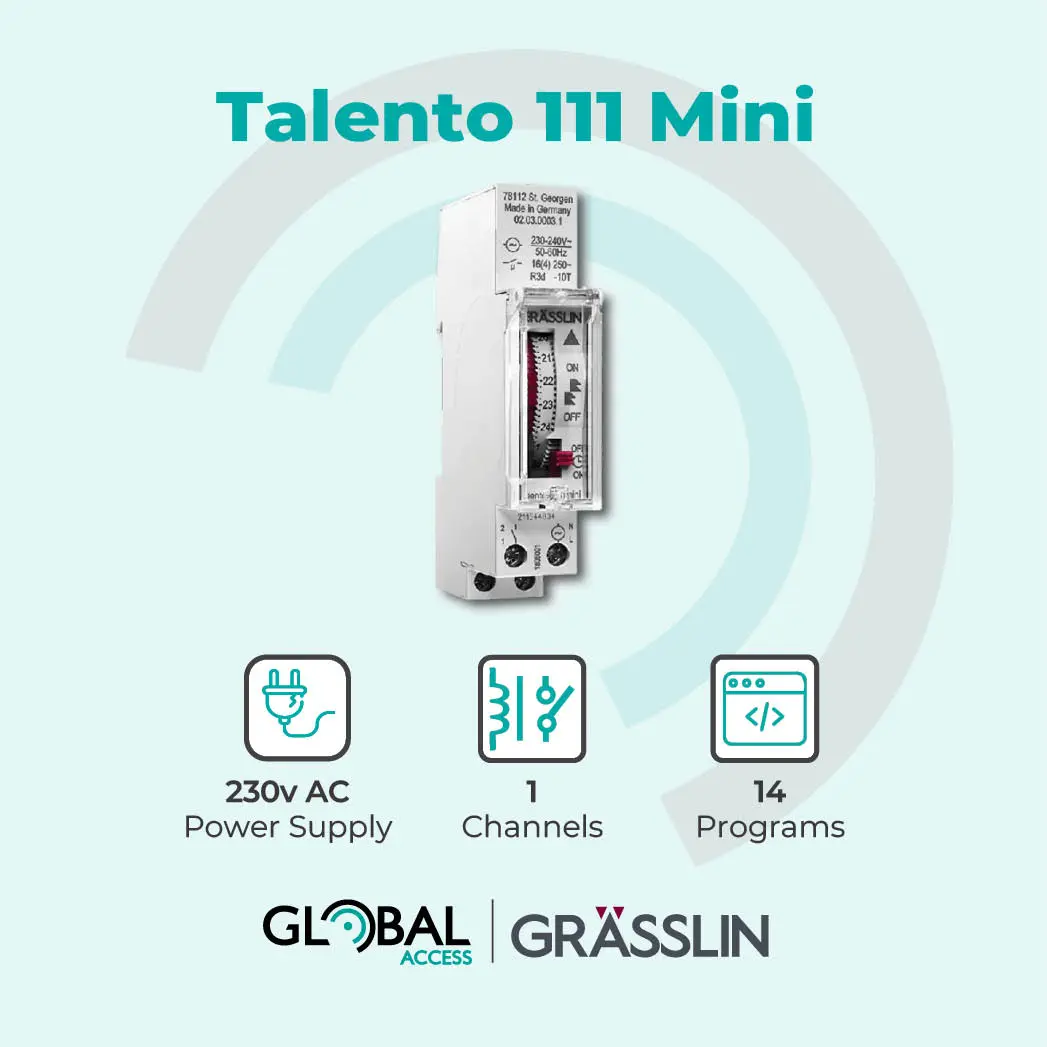

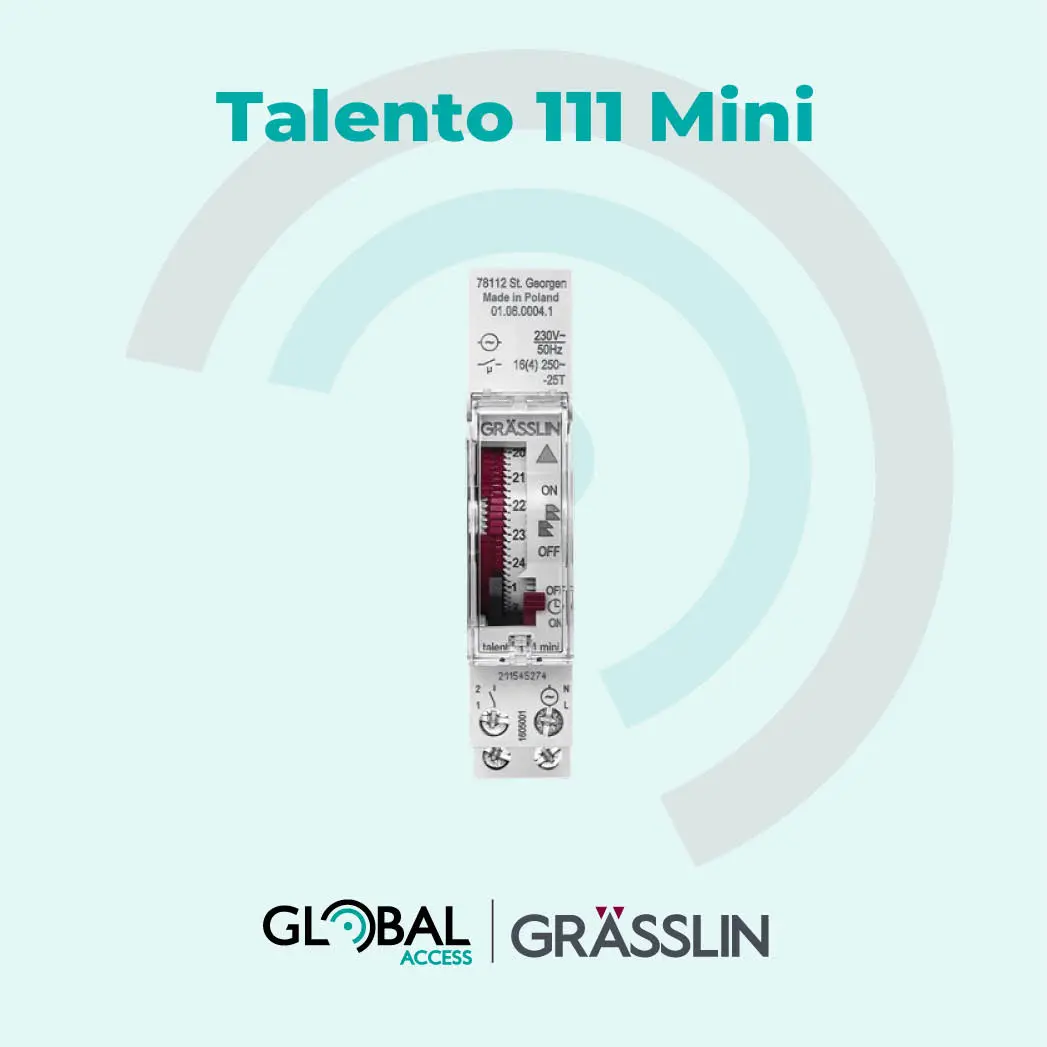

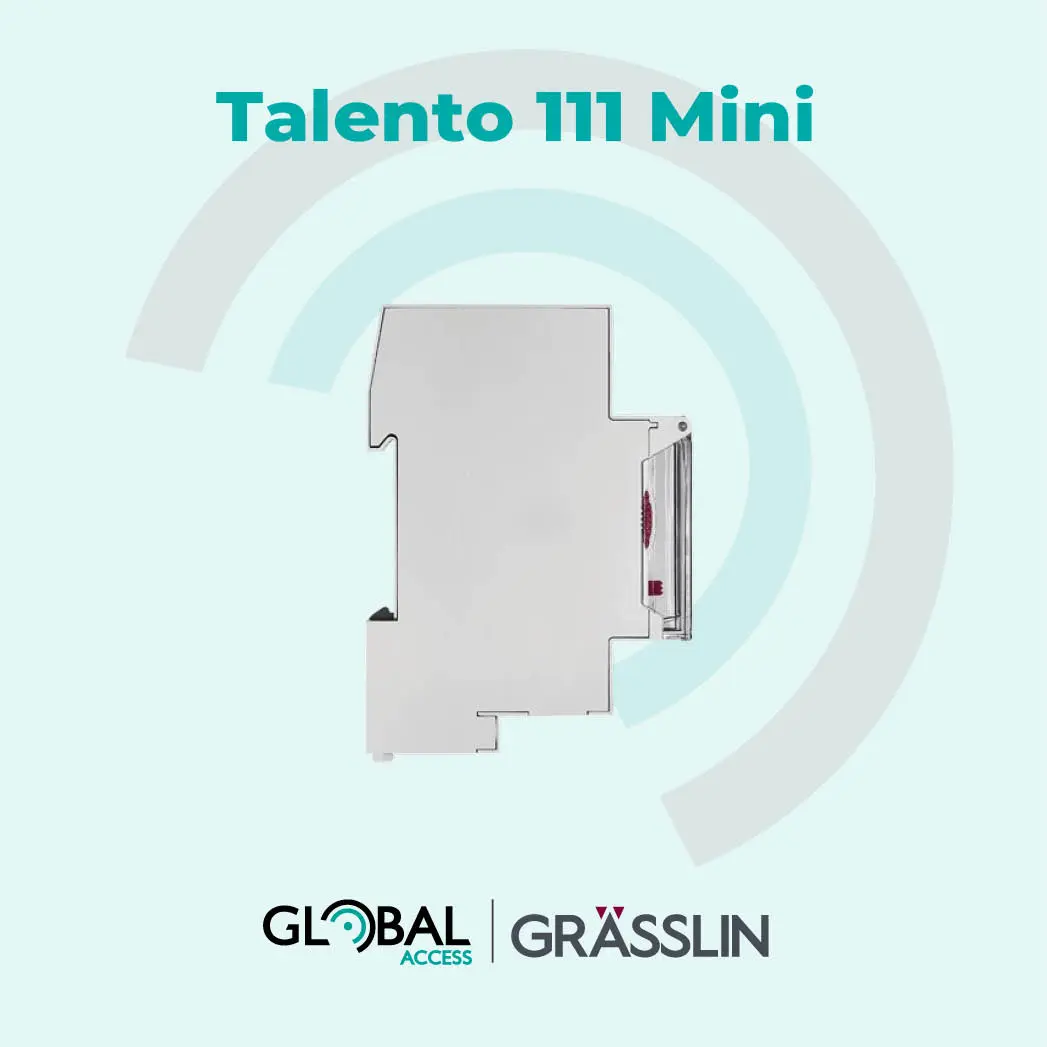

GRÄSSLIN Talento 111 Mini Analogue Timer

The GRÄSSLIN talento 111 Mini is a compact analogue DIN rail timer designed for simple and reliable daily time-controlled switching. With switching intervals programmable in 15-minute increments, operating and switching times can be quickly viewed and adjusted at a glance.

Its compact 1-module DIN rail design makes it suitable for a wide range of automated electrical applications, including lighting, pumps and other time-controlled equipment.

Technical Data

• Operating Voltage: 230V AC
• Frequency: 50Hz
• Program: Daily
• Installation: DIN rail
• Width: 1 module
• Contact: NO contact
• Switching Capacity (cos φ = 1): 16A at 250V AC
• Switching Capacity (cos φ = 0.6): 4A at 250V AC
• Shortest Switching Time: 15 minutes
• Programmable Intervals: Every 15 minutes
• Time Accuracy: Mains synchronised
• Standby Consumption: 0.9W
• Incandescent/Halogen Load: 1000W
• Energy-Saving Lamps: 150W
• LED Lamps < 2W: 30W
• LED Lamps > 2W: 300W
• Protection Rating: IP20
• Protection Class: II according to EN 60 730-1
• Operating Temperature: –20°C to +50°C
• Power Reserve: None
