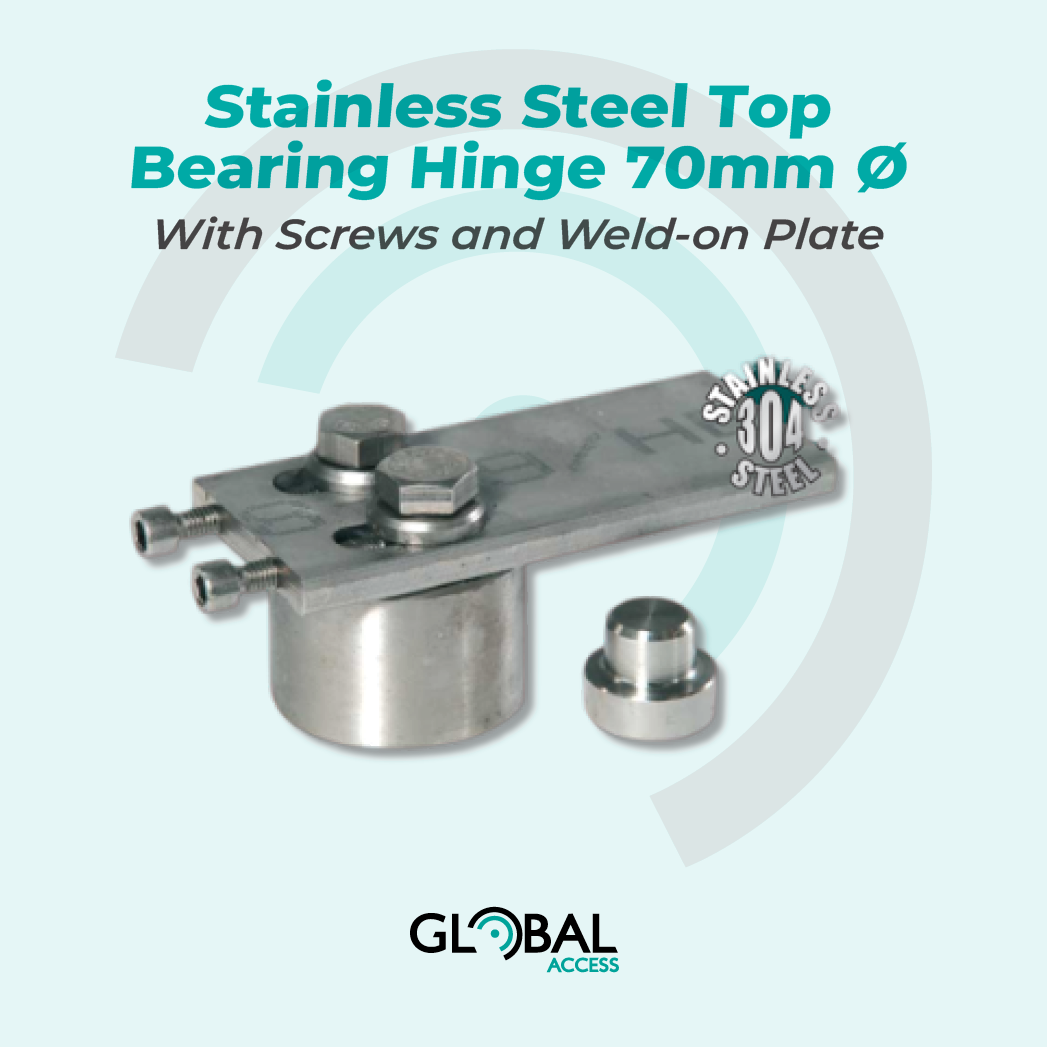

Stainless Steel Top Bearing Hinge 70mm Ø With Screws and Weld-on Plate

Stainless Steel Top Bearing Hinge 70mm Ø With Screws and Weld-on Plate
Stainless Steel Top Bearing Hinge 70mm Ø With Screws and Weld-on Plate - Image 2
Stainless Steel Top Bearing Hinge 70mm Ø With Screws and Weld-on Plate - Image 3

Stainless Steel Top Bearing Hinge 70mm Ø With Screws and Weld-on Plate

SKU: 1335-0055#

Login to view pricing

Login
Add to Quote
Related Files:
Technical Information
Share This Items :

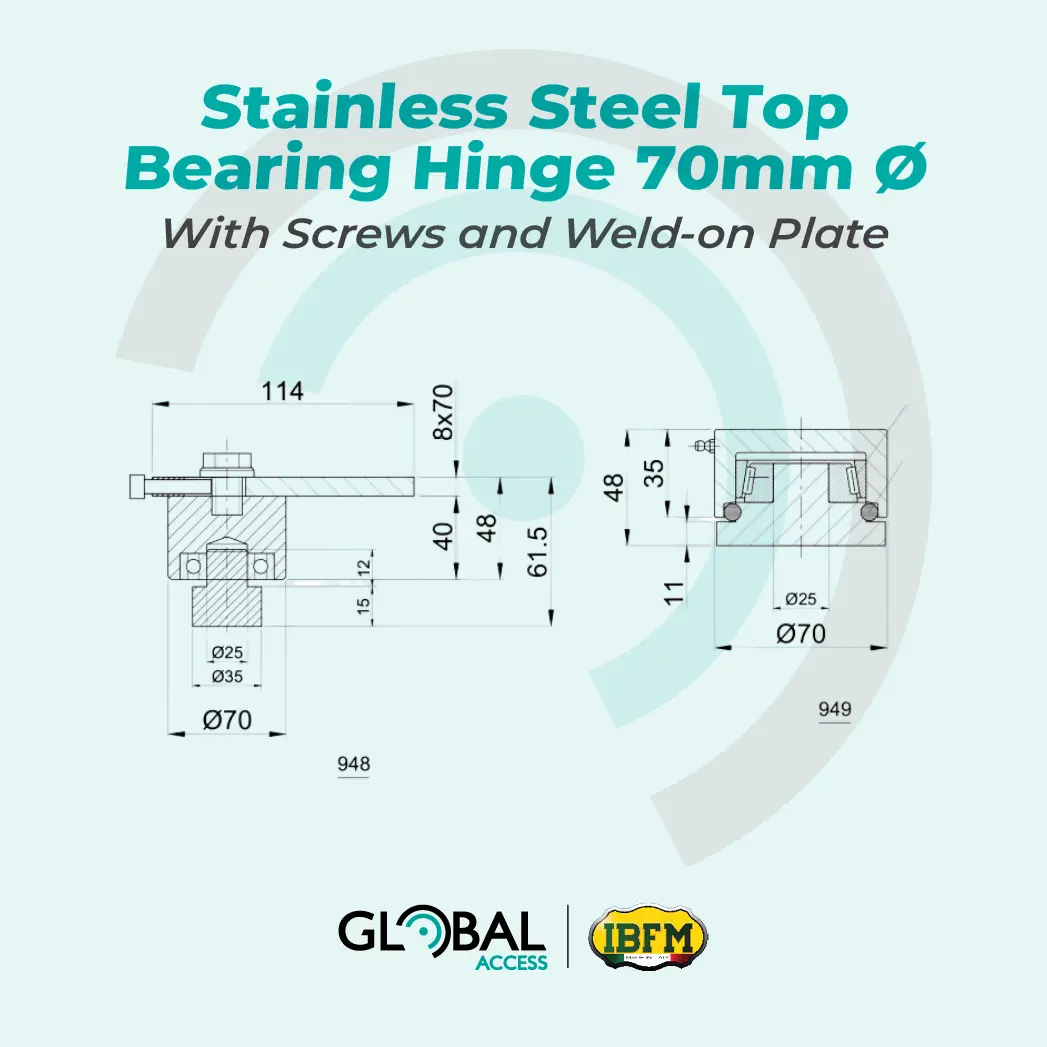

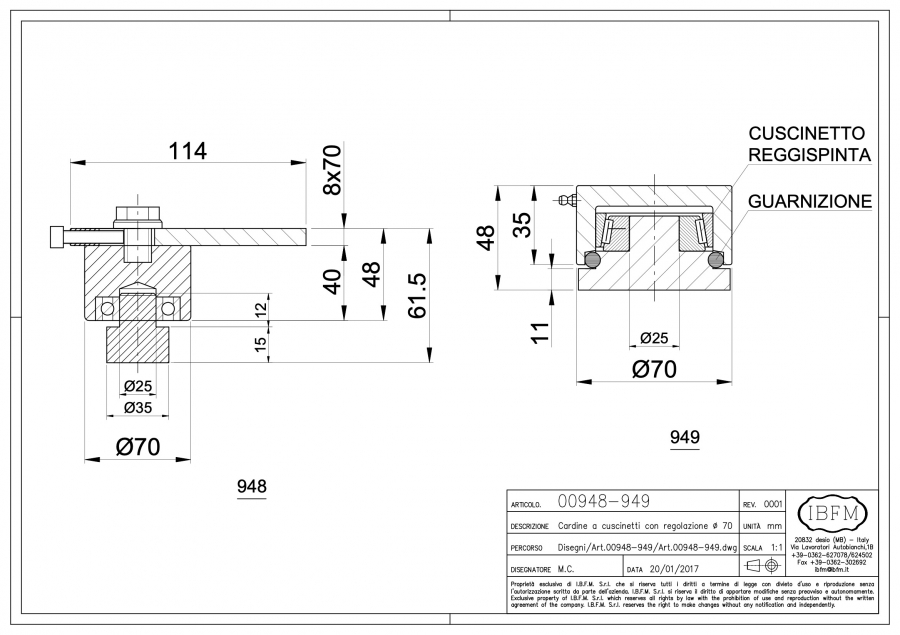

Stainless Steel Top Bearing Hinge 70mm Ø With Screws and Weld-on Plate

  • Hinge diameter: Ø70 mm
  • Pin diameter: Ø25 mm
  • Overall width: 114 mm
  • Overall height: 61.5 mm
  • Mounting plate: 70 mm wide × 8 mm thick
  • Adjustable hinge with 12 mm height adjustment
  • Bearing-supported construction with integrated sealing
  • Suitable for heavy-duty swing gates
  • Rating per/pair 1000kg

Material:

304 Grade Stainless Steel

Country:

ITALY
