Login to view pricing
Voltage:
Dimensions:
Recommended Gate Weight:
Max Gate Weight:
Recommended Leaf Length:
Max Speed:
Country:

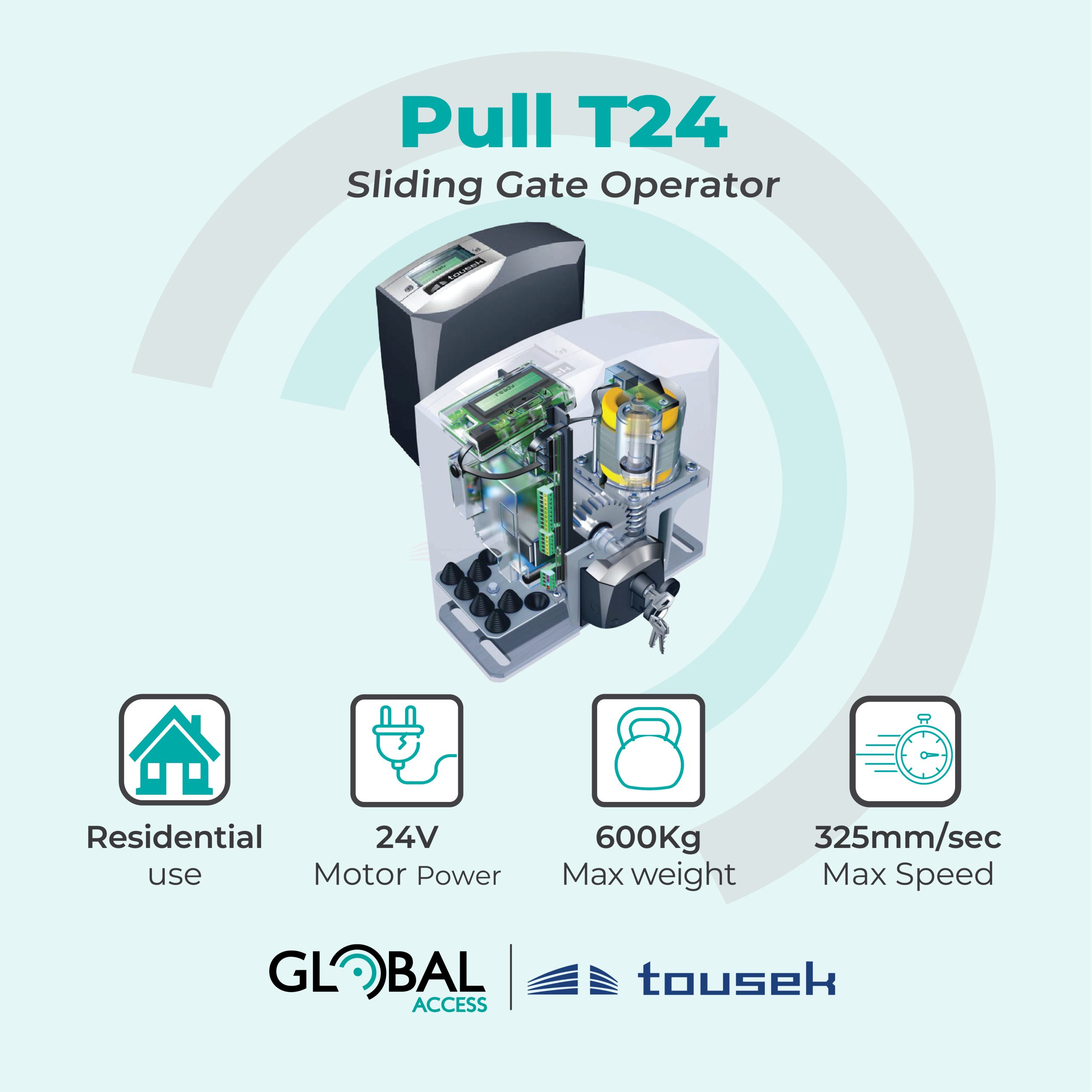

This premium quality TOUSEK Pull T24 Speed is suitable gates weighing up to 600Kg.
The Pull T24 are European (Austrian) designed and manufactured oil-bath gearbox operator like no other when it comes to design and quality of build!
• Low power consumption in idle mode (Optional)
• Backup battery (Recommended with all Standard and Separate Transformer Kits)
• Self learning limit detection
• Automatic reversal system
• Adjustable soft stops
• Modern sleek style
• Included adjustable base plate
• No limit switches
• Machine cut hardened steel gears
• Oil bath gear box
• Digital display cover
• Kit includes adjustable height base (mounting) plate
• Only suitable for very slight (small) inclines, please contact us to discuss your application!
• Incline gates MUST use an Add-On Receiver and a battery pack!
VARIATIONS AVAILABLE:
• 1555-0032 – Z16 Pinion – Max. Weight 600Kgs – Max. Speed 216mm/s
• 1555-0033 – External Transformer – Z16 Pinion – Max. Weight 600Kgs – Max. Speed 216mm/s
• 1555-0030 – Z20 Pinion – Max. Weight 400Kgs – Max. Speed 270mm/s
• 1555-0031 – External Transformer – Z20 Pinion – Max. Weight 400Kgs – Max. Speed 270mm/s
• 1555-0028 – Z24 Pinion – Max. Weight 300Kgs – Max. Speed 325mm/s
• 1555-0029 – External Transformer – Z24 Pinion – Max. Weight 300Kgs – Max. Speed 325mm/s
OPTIONAL EXTRAS:

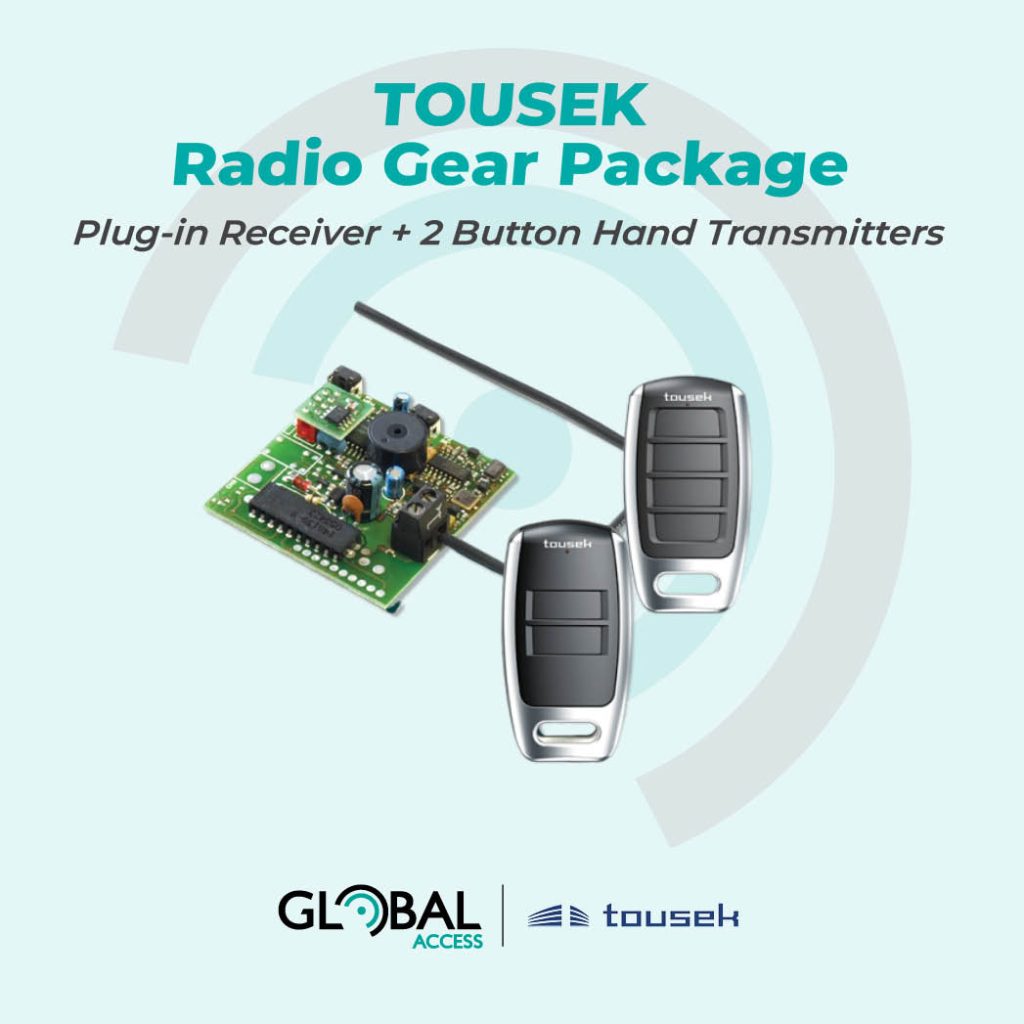

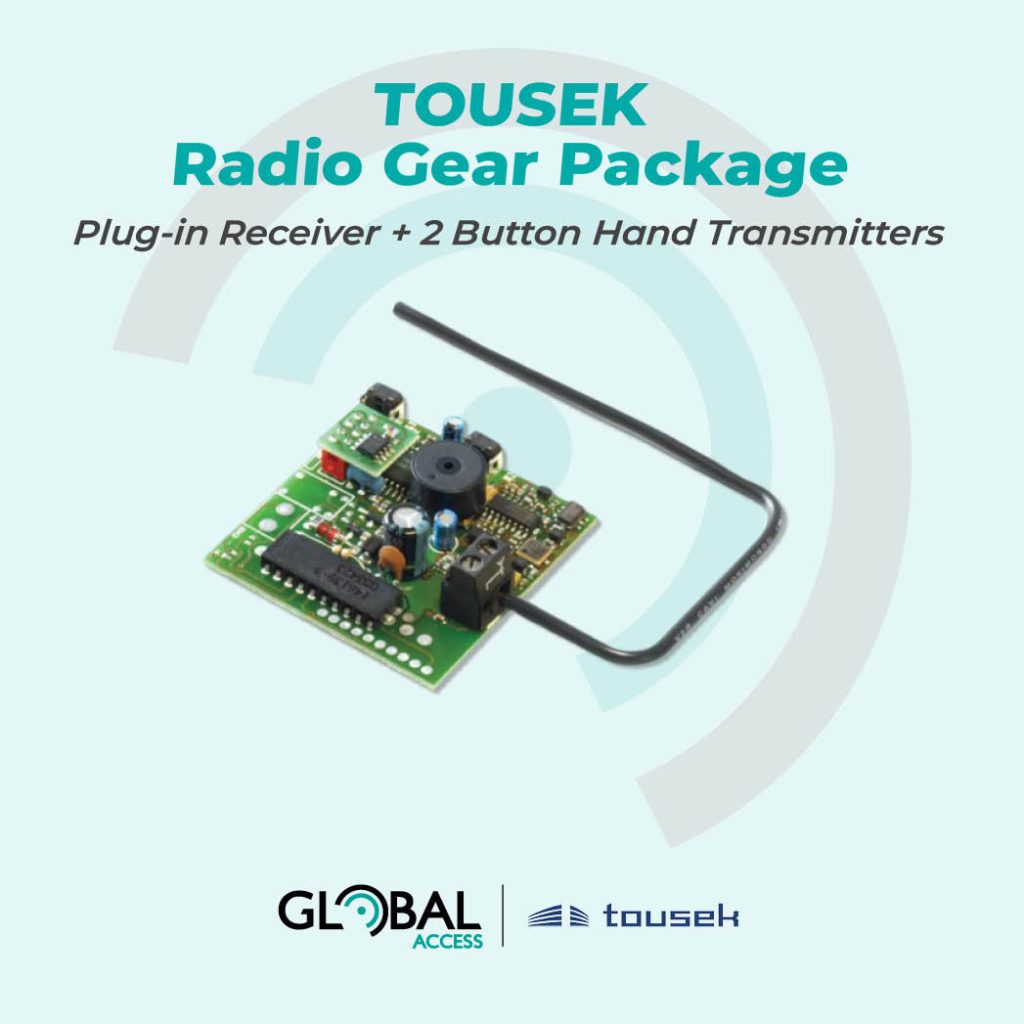

• 1018-0217 – Tousek Radio Gear Package 1 x ADD-ON Receiver and 2 x transmitters
• 5151-0010 – DIN Rail Power Supply 24V 620mA
• 1018-0102 – Plug-in Courtyard Lamp Module (230V, 100W)
• 1018-0101 – Plug-in Gate Status Module
• Pull T24 Solar Ready Connection
IMPORTANT NOTE:
• Kits do not contain radio gear or remotes
• Max. 256 Transmitters can be paired to this receiver
• Board accessory output is 24V 500mA
High-Speed Operation
Fast gate movement delivers quicker opening and closing for efficient access.
Clear Display
Integrated display keeps important settings and operating information clearly in view.
Tempered Steel Gearing
Robust tempered steel gears provide strength, durability and reliable long-term operation.
