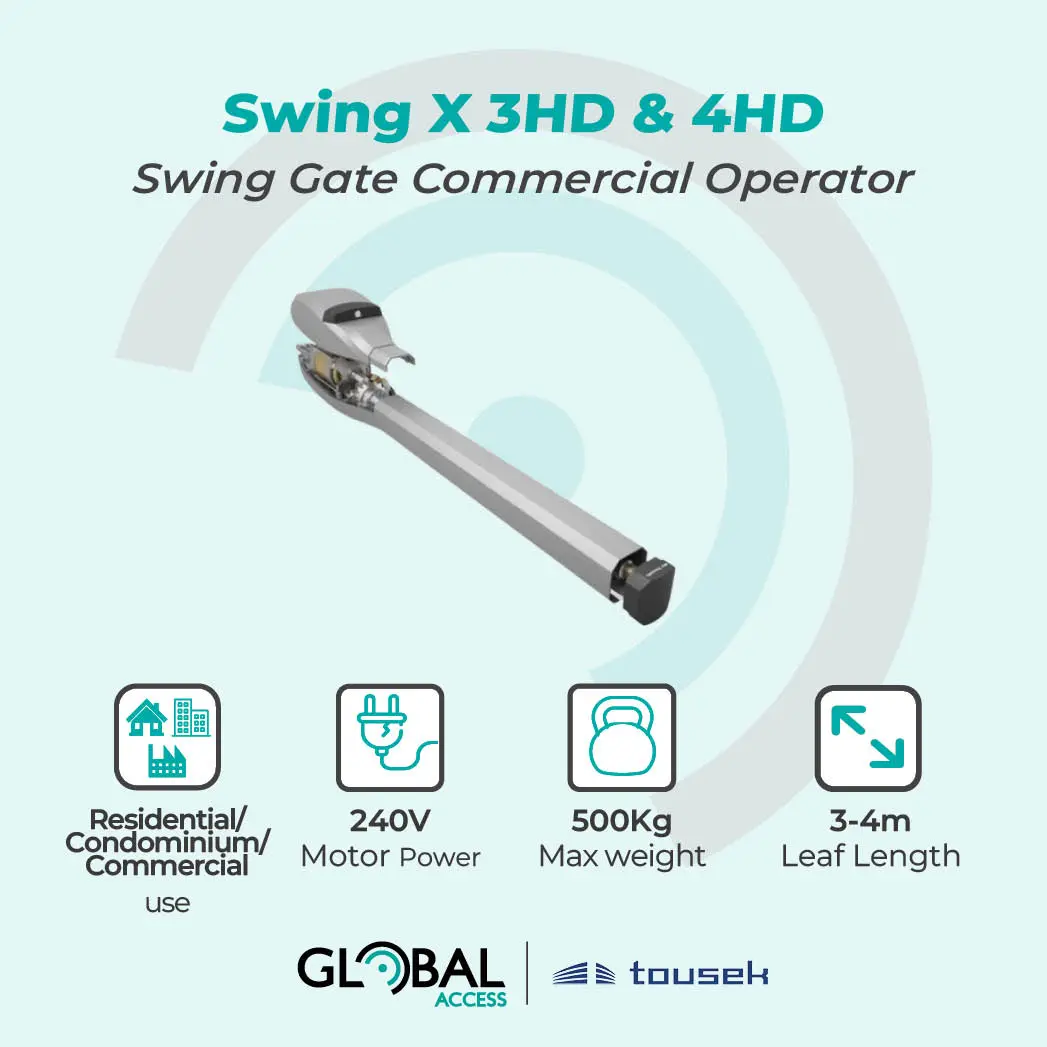

TOUSEK SWING X3 HD and X4 HD 230V Heavy Duty Swing Gate Motor Range

Name: Global Access
SKU: f1641e223665g904
Rating: 4.6 (38 reviews)

TOUSEK SWING X3 HD and X4 HD 230V Heavy Duty Swing Gate Motor Range

TOUSEK SWING X3 HD and X4 HD 230V Heavy Duty Swing Gate Motor Range - Image 2

TOUSEK SWING X3 HD and X4 HD 230V Heavy Duty Swing Gate Motor Range - Image 3

TOUSEK SWING X3 HD and X4 HD 230V Heavy Duty Swing Gate Motor Range

product variations

Clear

Add to Quote

Incline: No

Application: Condominium, Commercial

Share This Items :

Voltage:

230V

Application:

Condominium, Commercial

Wind Loading:

Light Wind Load

Solar Suitability:

Not Suitable

Backup Battery Option:

Recommended Gate Weight:

X 3HD – 500Kg @ 2.4m (per leaf) | X 4HD – 500Kg @ 3m (per leaf)

Max Gate Weight:

X 3HD – 500Kg @ 3m (per leaf) | X 4HD – 500Kg @ 4m (per leaf)

Recommended Leaf Length:

X 3HD -@ 2.4m (per leaf) | X 4HD -@ 3m (per leaf)

Max Leaf Length:

X 3HD -@ 3m (per leaf) | X 4HD -@ 4m (per leaf)

Max Speed:

Total Stoke Travel Time; Swing X 3HD = 23sec (including slow-down) | Swing X 4HD = 29sec (including slow-down)

Stroke:

320mm

Incline:

Minimum Side Room:

200mm – 260mm

Max Opening Angle:

120°

Rising Hinges:

Not suitable

Frequency (Duty Cycle):

60%

Drive Technology:

Electromechanical

Protection Class (IP):

IP44

Welding Required:

Yes | Optional Bolt On Bracket

Country:

AUSTRIA

Product Notes:

We recommend gates over 1.8m be fitted with an electric lock. We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles

The TOUSEK SWING X3 HD and X4 HD 230V range offer the ability to move gate leaves up to 4m in length (X4 HD)

The advantages at a glance:

Commercial build quality

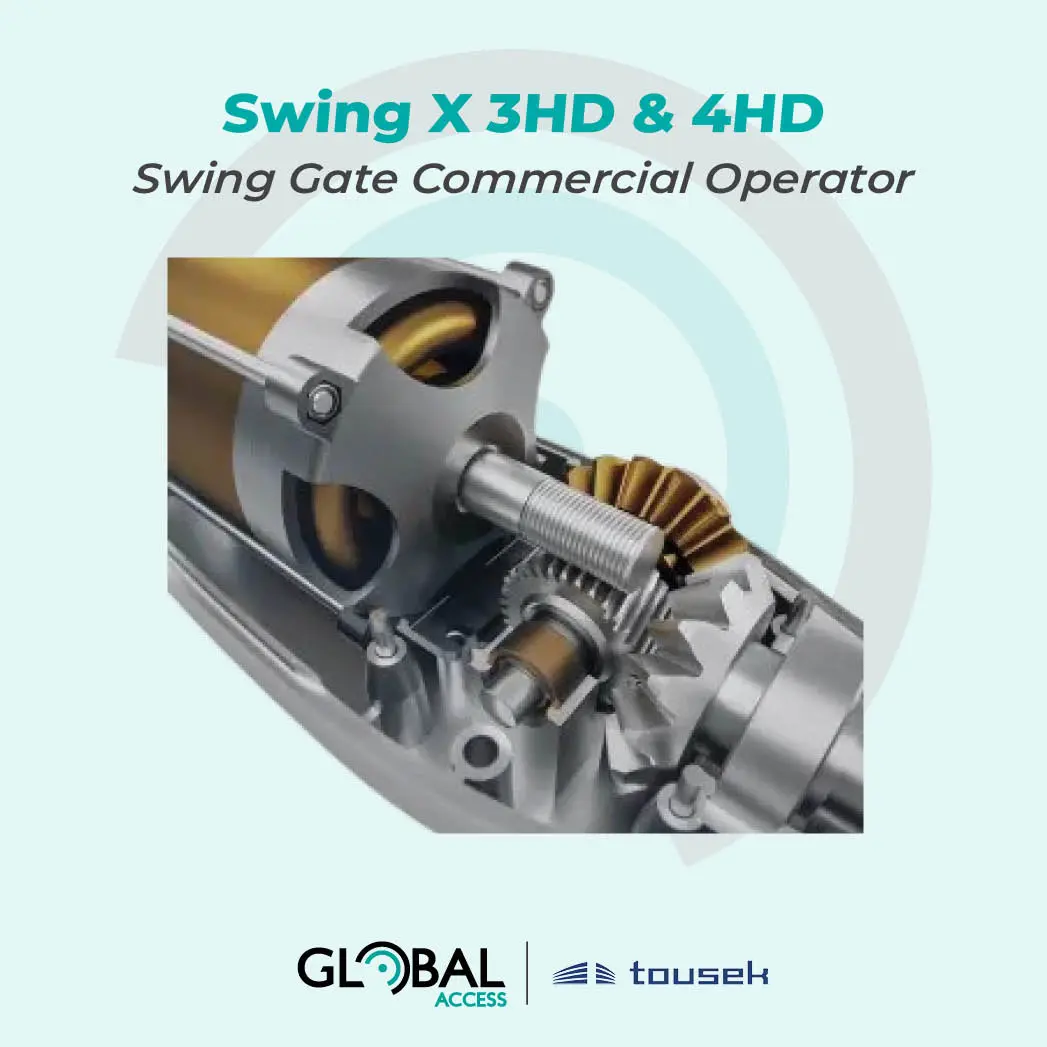

Machine cut, hardened steel gears
Standard (eurokey) for manual release – can be cut to match your house key by a locksmith
Massive motor-gear unit for reliable power transmission
Self-locking spindle for maximum stability – NO ADDITIONAL LOCKS REQUIRED!
The Control Board logs and stores the last 800 cycles

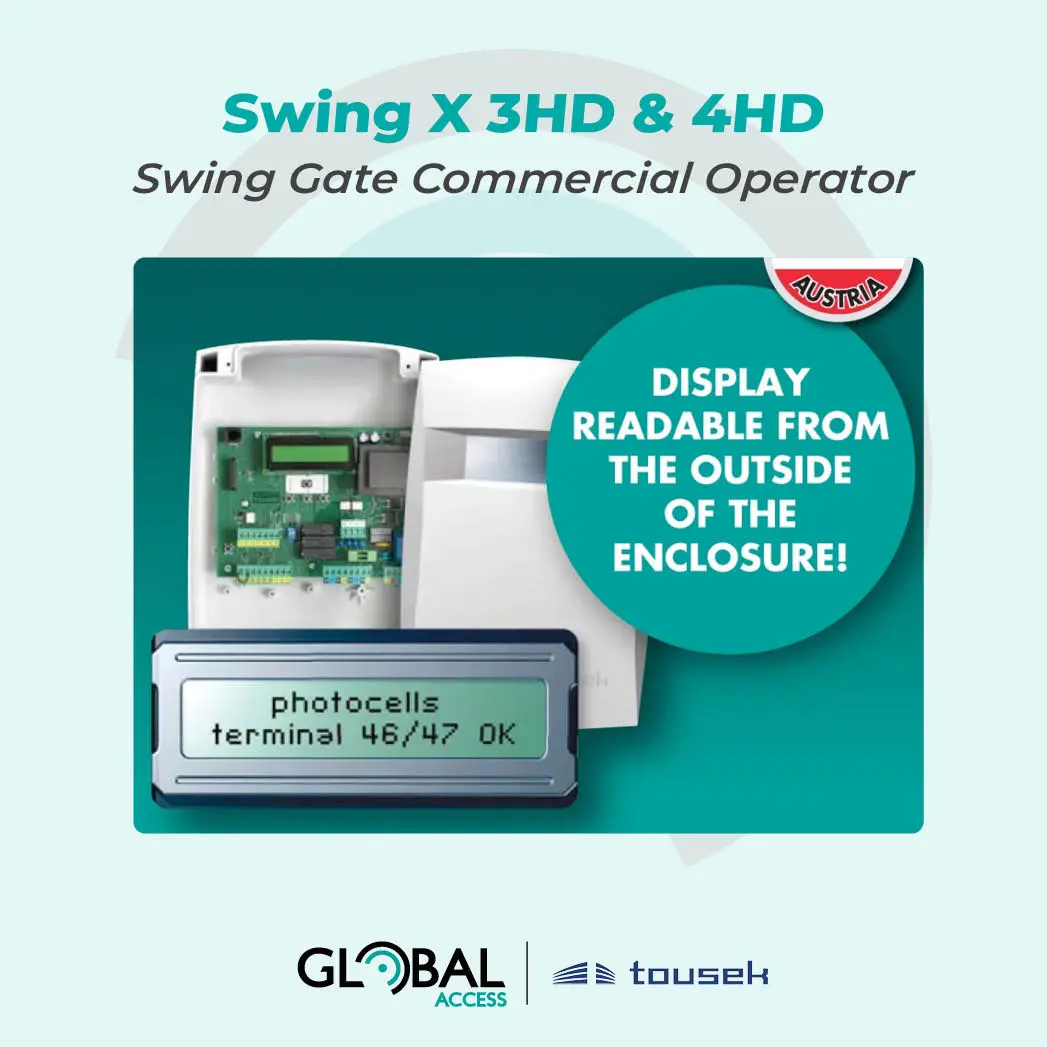

The display is readable from outside the enclosure
High quality materials for long-term operation
Integrated mechanical stops for ease of installation
Comfortable emergency release
Smart Plug & Play controls for maximum operating comfort
Standard soft stop for smooth gate movement
ARS Automatic Reversal System for maximum safety
Clever mounting design for smooth motion
Automatic reversing if an obstacle is encountered

IMPORTANT NOTE:
• Kits do not contain radio gear or remotes
• MANDATORY use of safety items such as photo-beams (vehicle safety) and appropriate safety-sensors or edge-sensors (pedestrian safety) MUST BE USED!
