TOUSEK TPS 20 230v Electric Sliding Gate Motors

The premium quality TOUSEK TPS 20 range of sliding gate motor are suitable for gates weighing up to 2000Kg. These European (Austrian) designed and manufactured oil-bath gearbox operator are like no other when it comes to design and quality of build!

• Large illuminated LC-Display
• Clear text menu programmable via four buttons
• Distance measurement with speed sensor
• Adjustable soft stop
• Automatic reversal system
• Mechanical brake for safe gate stop
• Permanent self-regulating force with boost function
• Electronic monitoring of emergency release
• Input for gate back area surveillance
• Suitable for traffic control operation
• Status display for safety and buttons/switches inputs
• Mechanical brake for safe gate stop
• 1.5 amp accessory power supply
• Ask us about TPS 20 Master/Slave combination for bi-parting gates
• Included DIN Rail 30W 24V 1.5Amp Power Supply

SPEED / WEIGHT SPECIFICATIONS:
• Z15 Pinion – Max. 2000Kg – 233mm/sec
• Z20 Pinion – Max. 1400Kg – 300mm/sec
• Z24 Pinion – Max. 1000Kg – 360mm/sec
• Z28 Pinion – Max. 600Kg – 420mm/sec

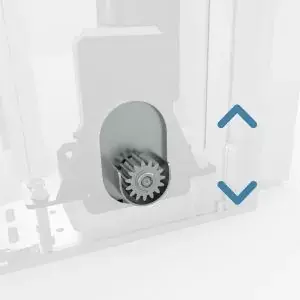

PINION HEIGHT [Ground to top of pinion]:
• TPS 20 – Z15 = Adjustable from 144 – 219mm (75mm of adjustment)

IMPORTANT NOTE:
• Kits do not contain radio gear or remotes
• Only One (1) optional genuine Tousek module can be fitted to the control board
