DICTATOR Radial Dampers For Sliding Gates – Heavy Duty OR Extra Heavy Duty – Z16 Mod 4 | Z12 Mod 6

DICTATOR hydraulic gate damper (or brake) is used for continuous damping (speed control or limiting) of sliding gates on an incline (slope or hill), even when there is no power available as it is a mechanical device.

These radial dampers have been designed for use with sliding gates fitted with an electric gate motor.

For safety reasons a radial damper should be fitted to all sliding gates on an incline to control the closing speed over the complete distance in the event of power failure to stop the gate rolling away and potentially injuring someone or causing property damage!

• Machined aluminium body (suitable for outdoor use)
• Machined stainless steel pinion
• Adjustable pressure/speed
• Sealed against dust and water ingress and requires no servicing
• Operates in a ‘free’ wheel function and ‘dampening’ function depending on the direction the gate is moving

-> OPTIONAL Spring Tensioned Mount is available

Available in 4 x variations:

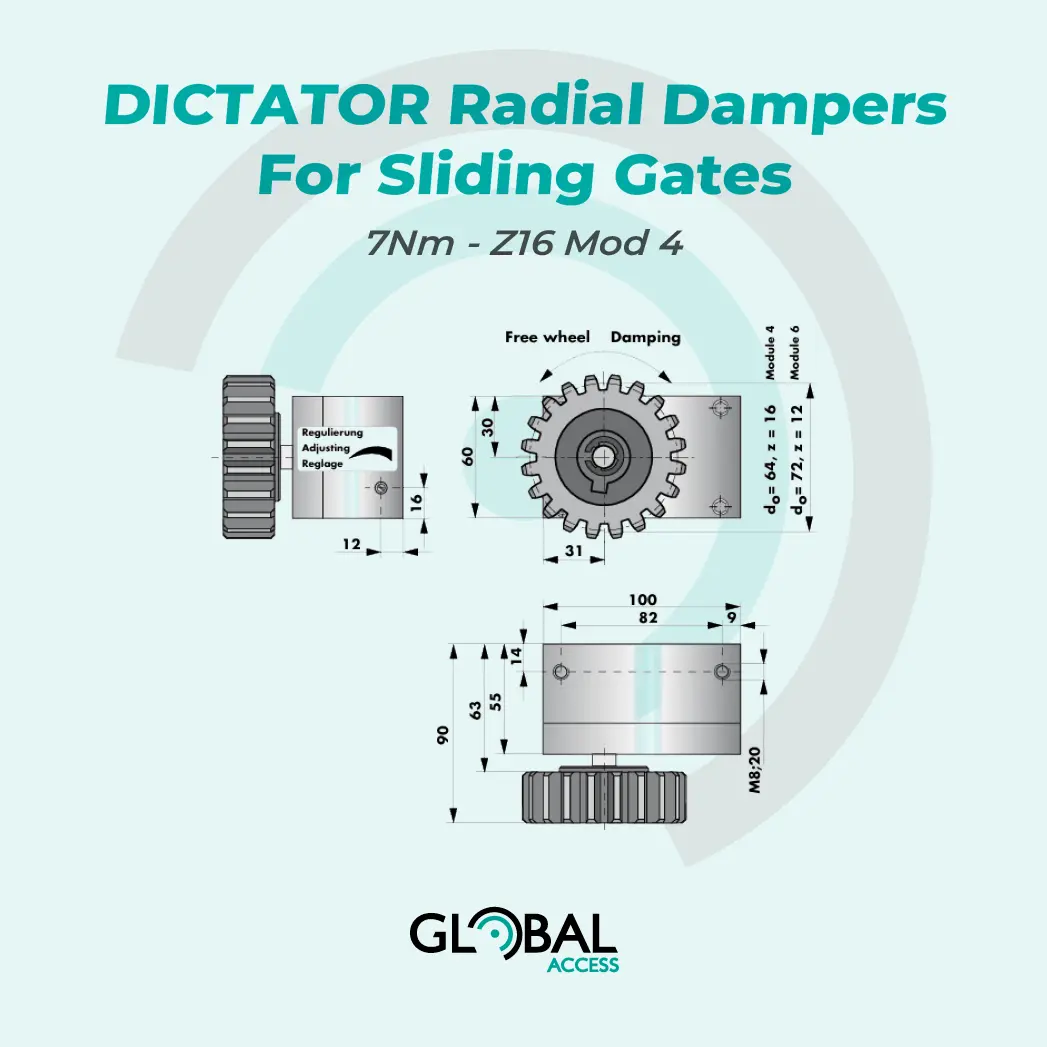

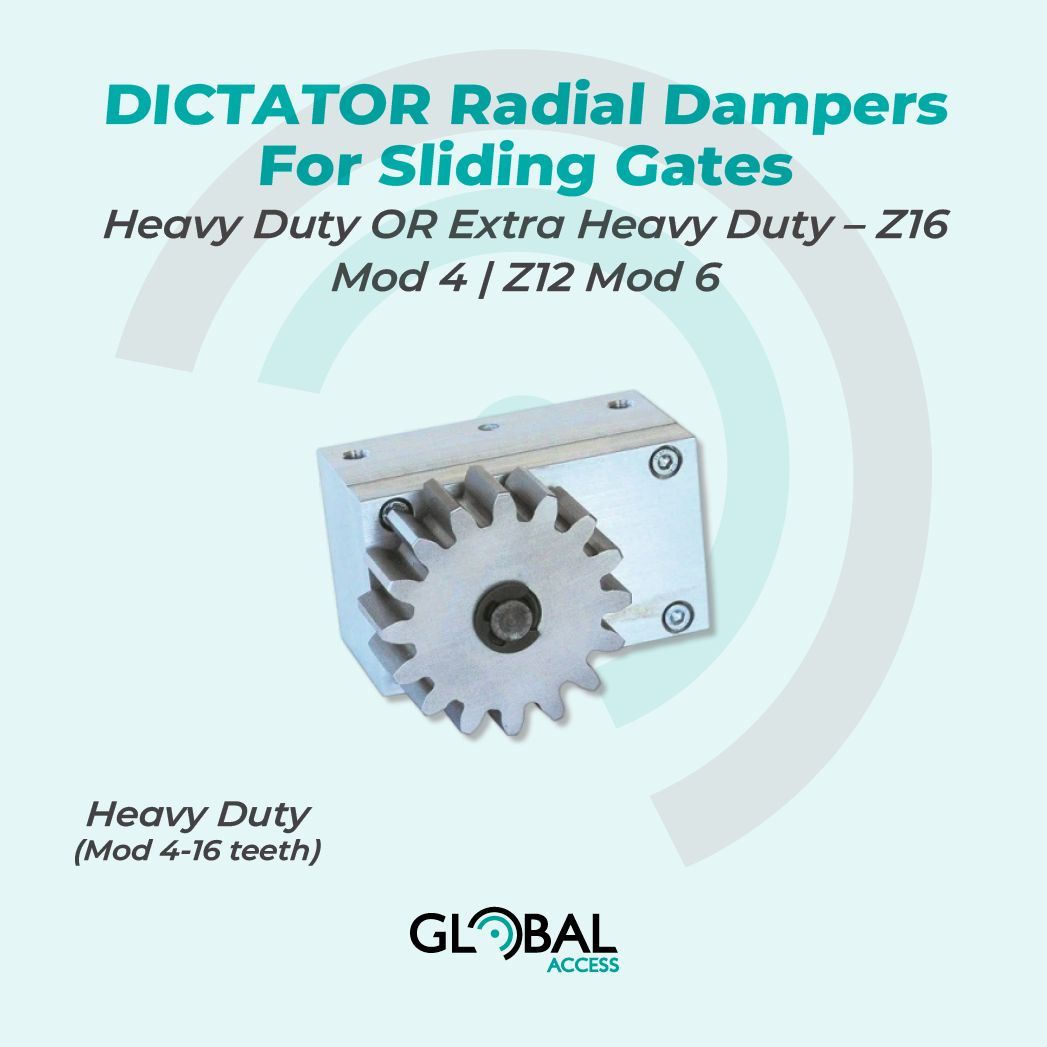

– #1018-0069 – Z16 Mod 4 (16 teeth) – 7Nm – Up to 600Kg max @ 4% Max. Incline

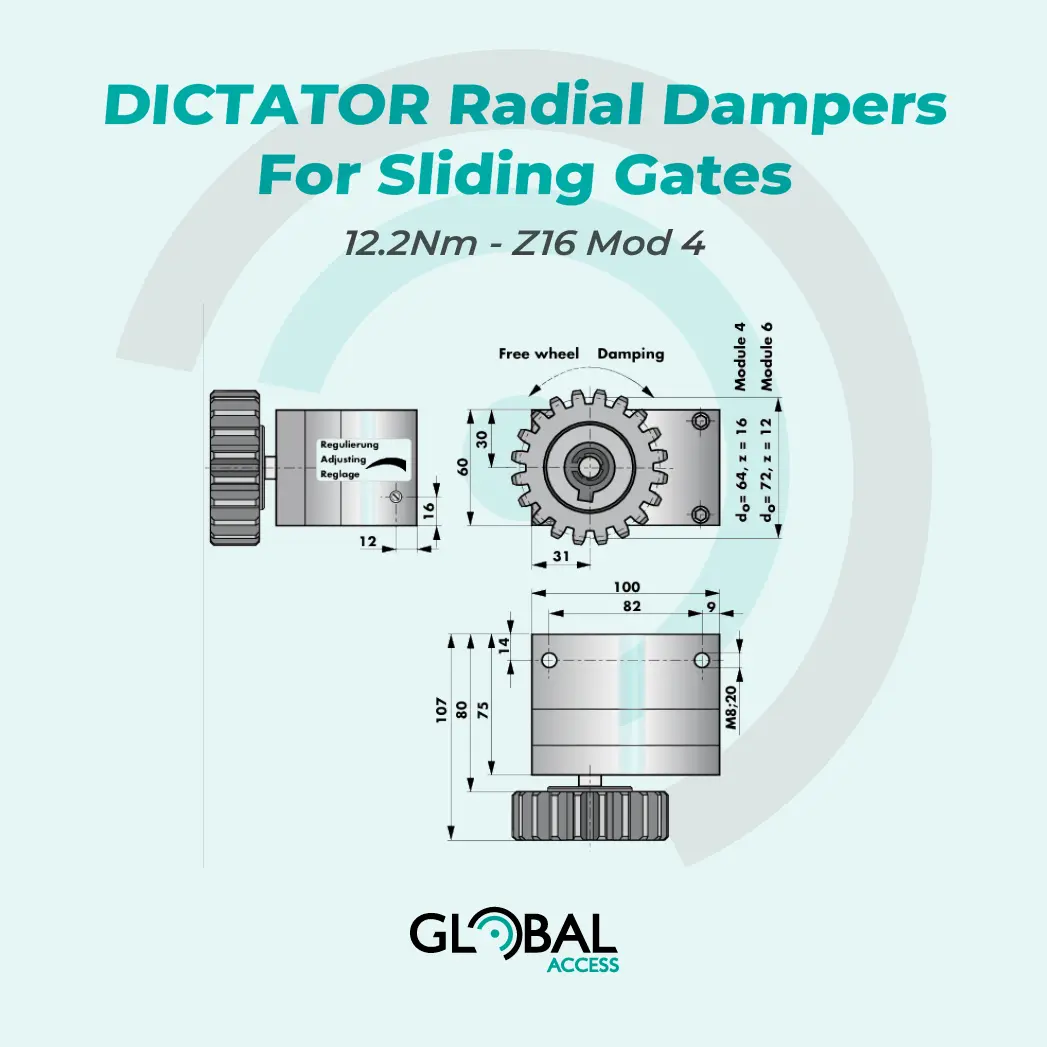

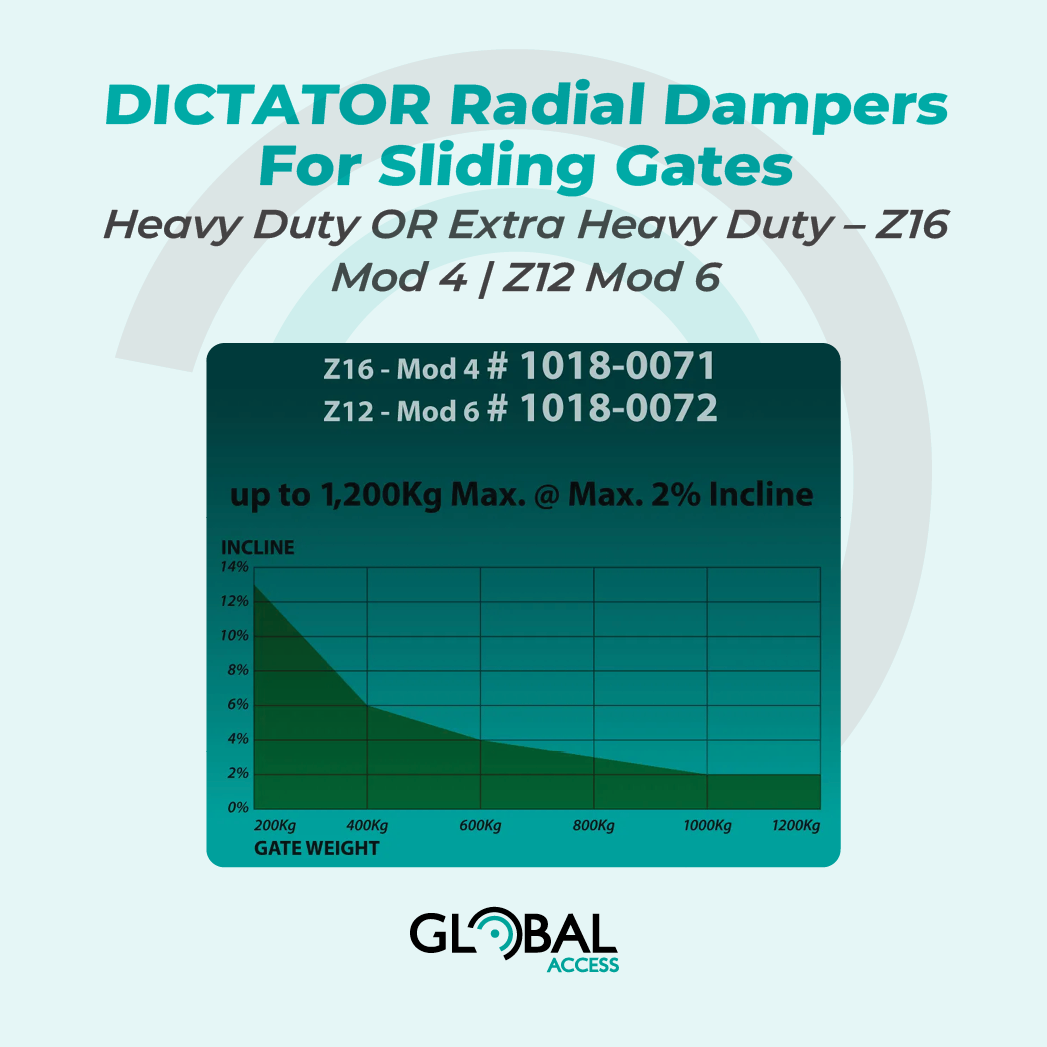

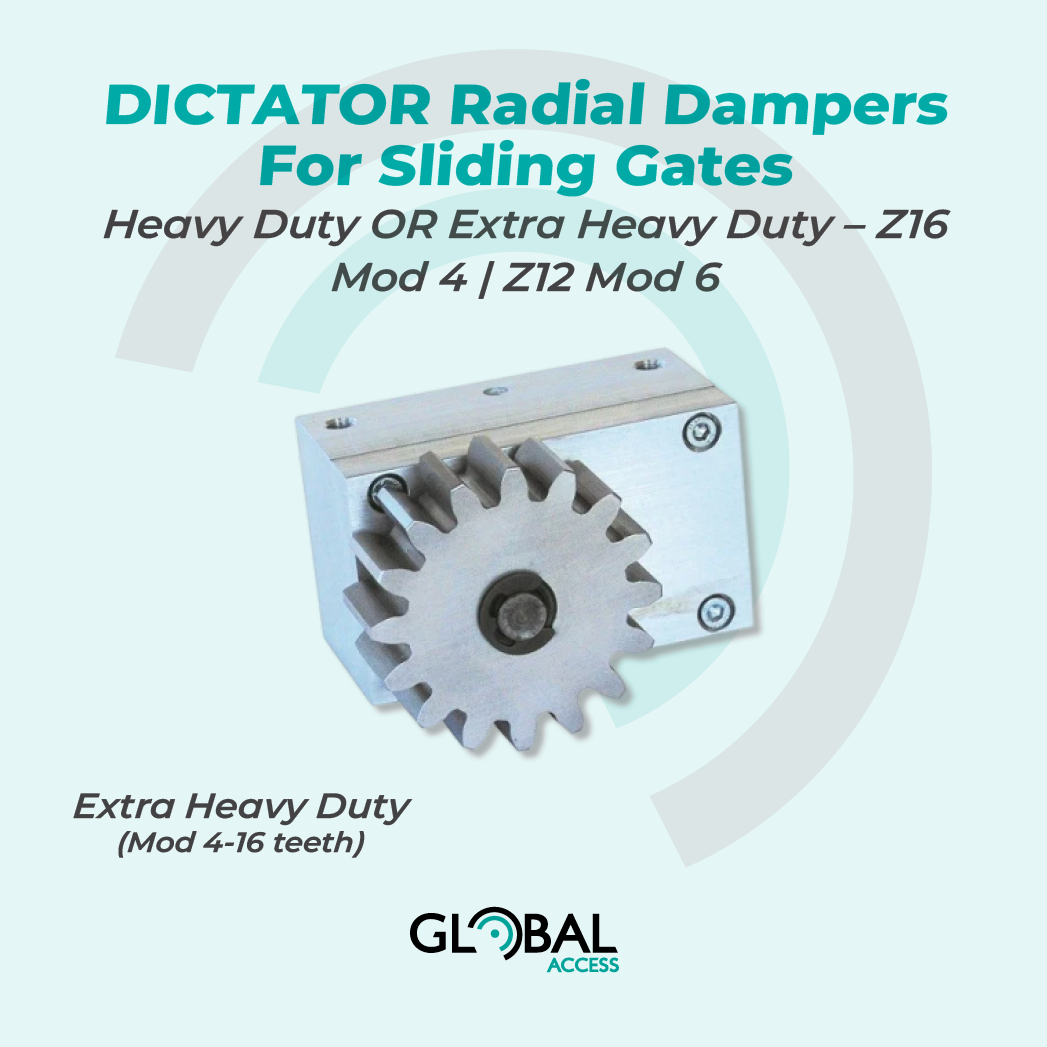

– #1018-0071 – Z16 Mod 4 (16 teeth) – 12.2Nm – Up to 1,200Kg max @ 2% Max. Incline

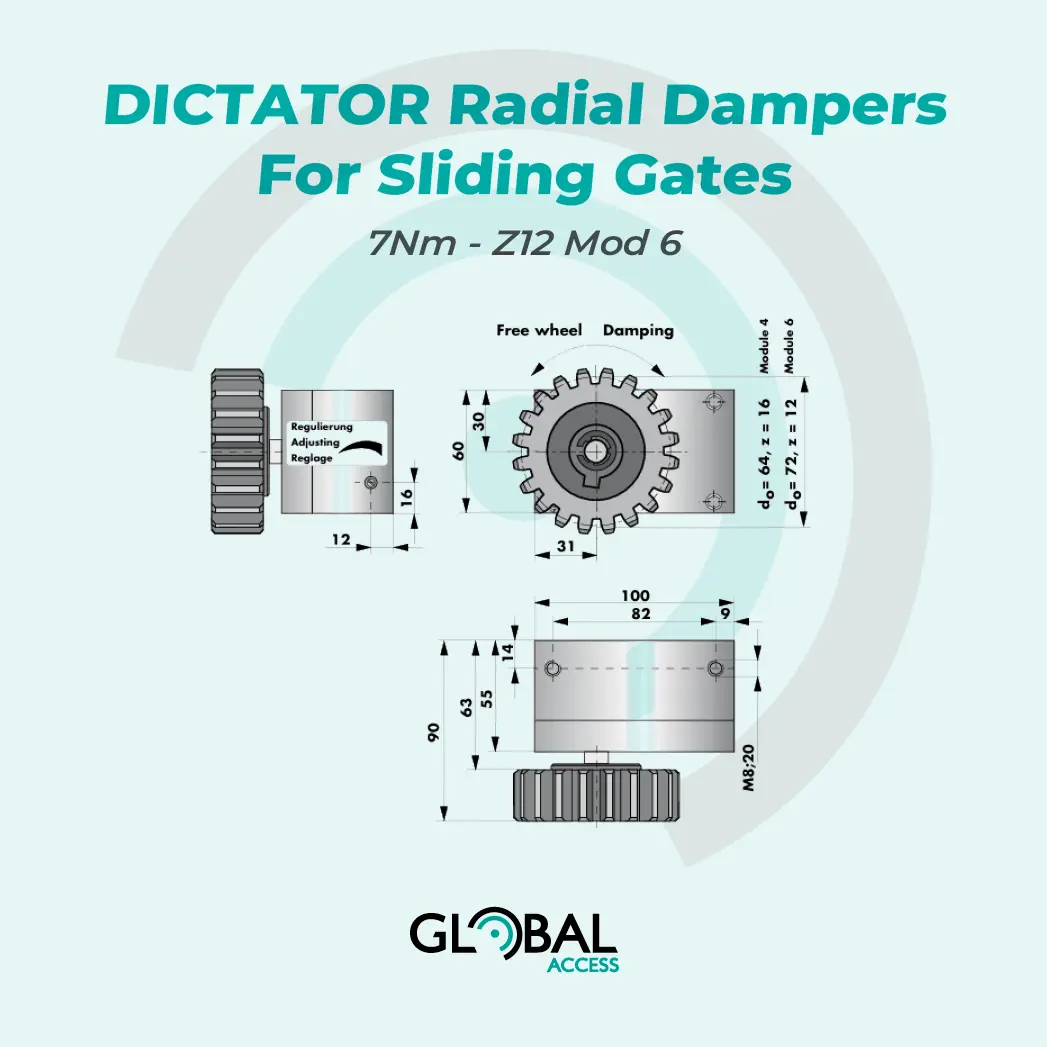

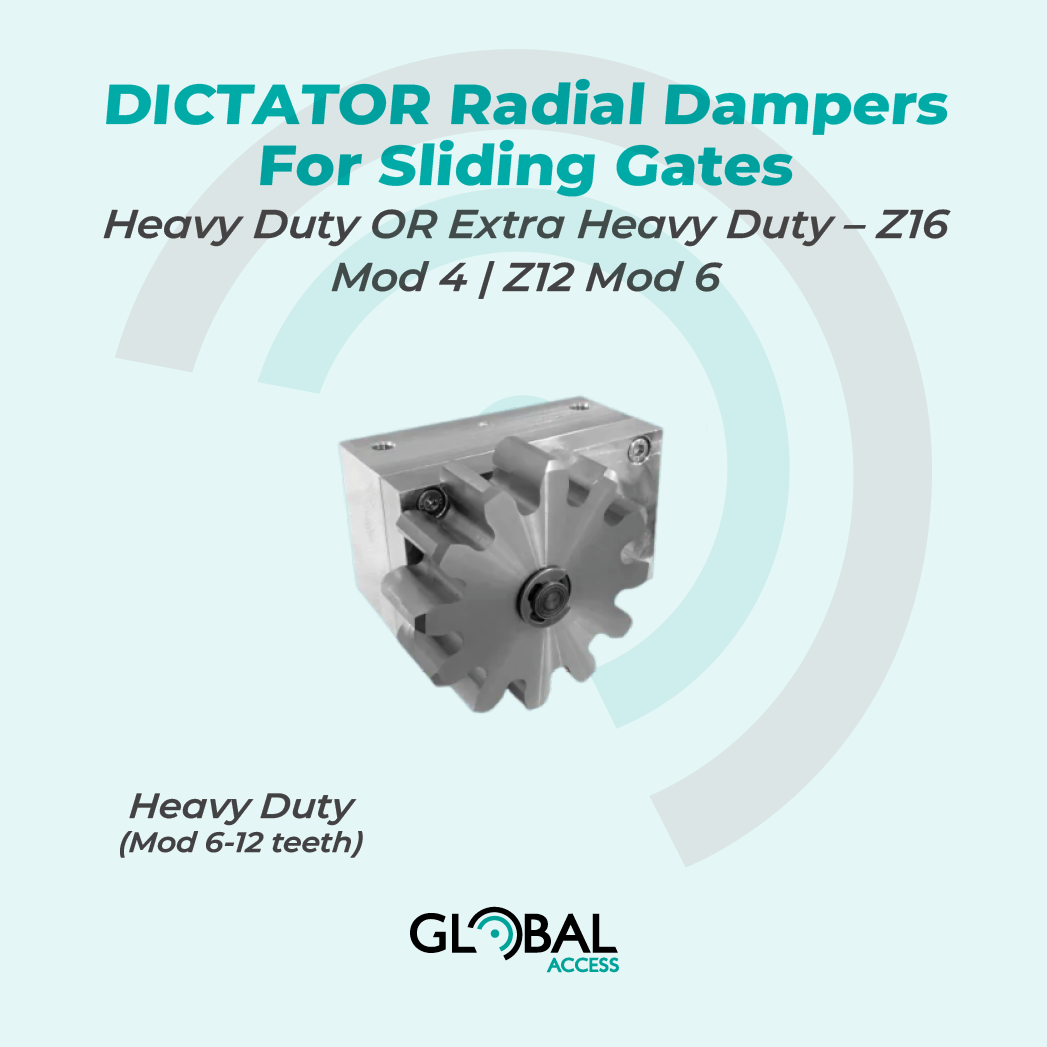

– #1018-0070 – Z12 Mod 6 (12 teeth) – 7Nm – Up to 600Kg max @ 4% Max. Incline

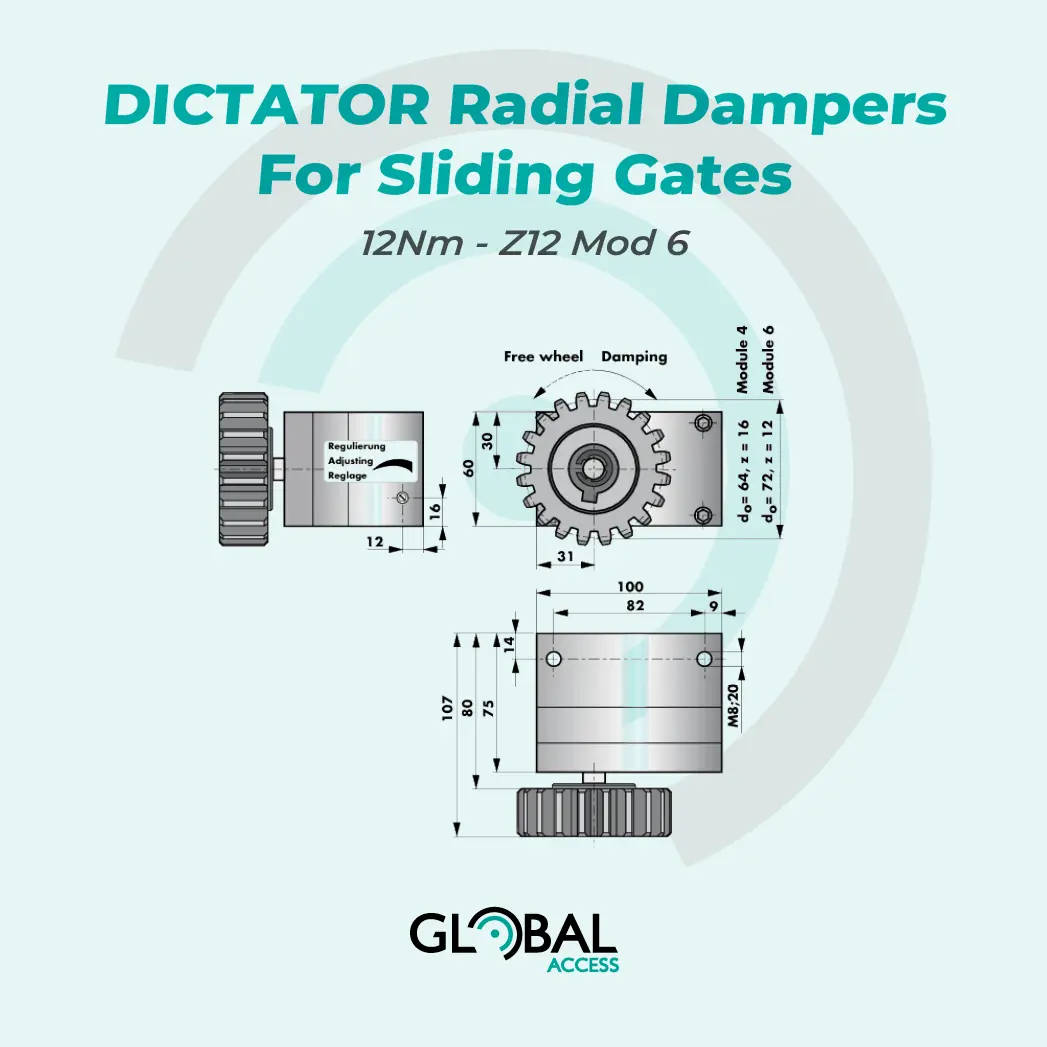

– #1018-0072 – Z12 Mod 6 (12 teeth – 12.2Nm – Up to 1,200Kg max @ 2% Max. Incline

Examples of incline calculations:
– A 4m wide gate opening with 70mm of fall = 2% incline
– A 4m wide gate opening with 150mm of fall = 4% incline
