VIRO V09 Electric Lock Kit for Installation on Sliding gates

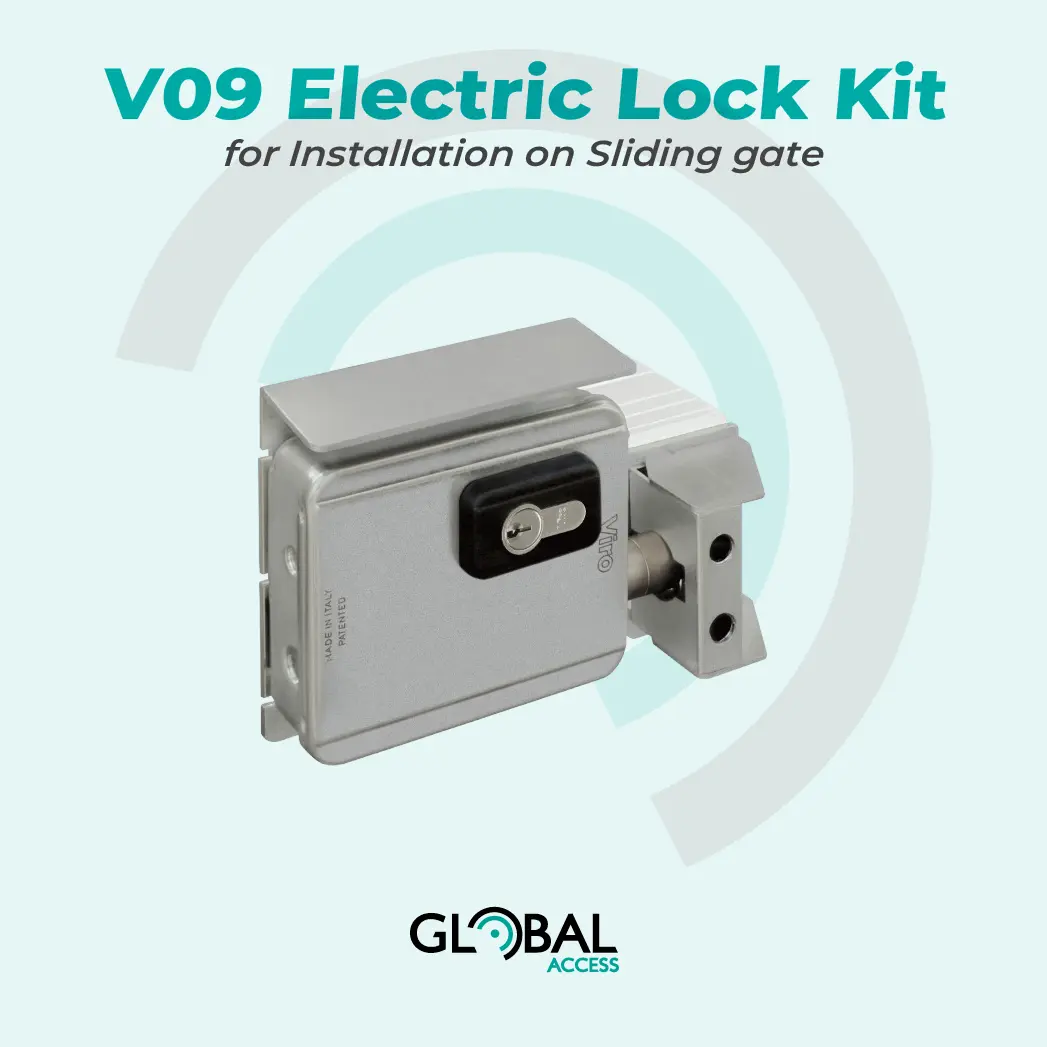

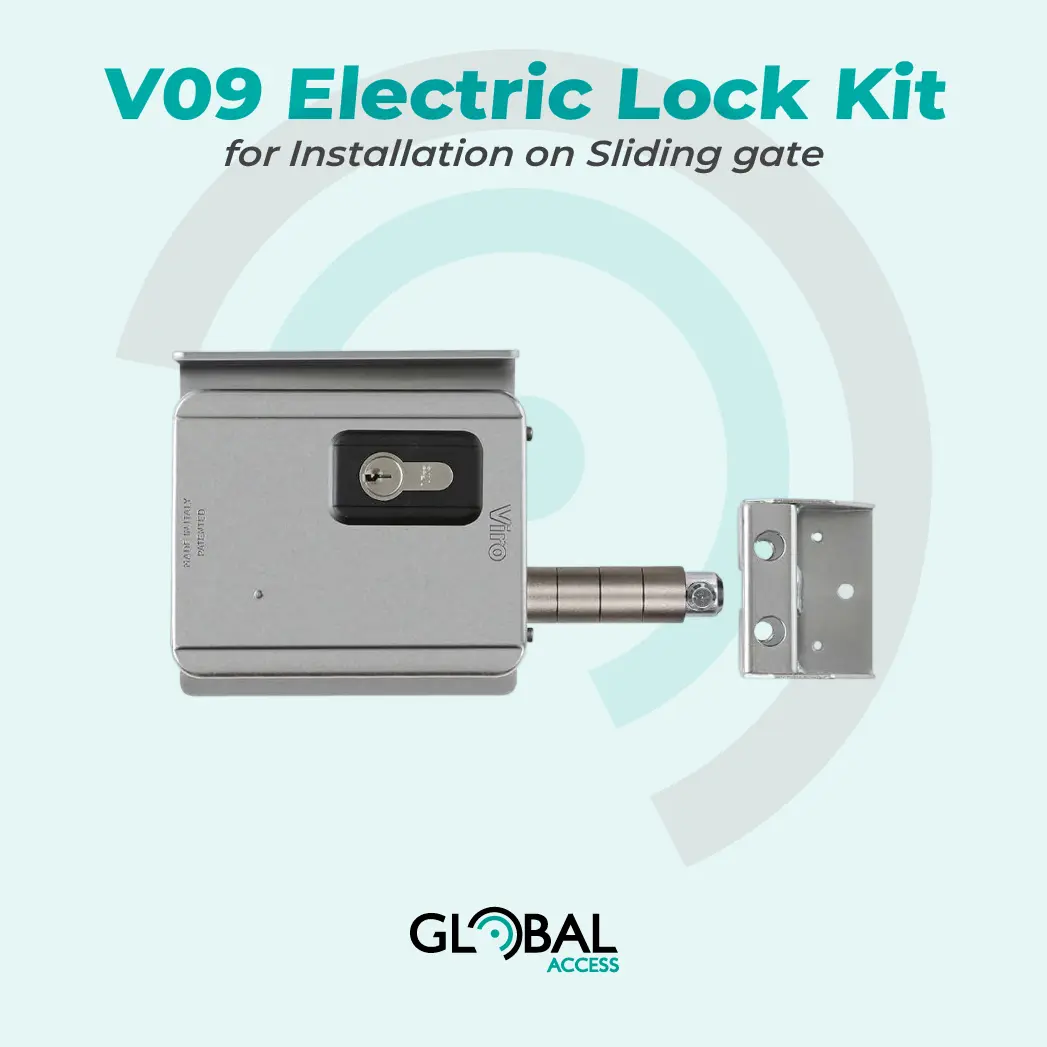

Viro V09 Rotating Spike Electric Lock

The Viro V09 is a high-reliability, weatherproof electric lock designed for outdoor manual and automated sliding gates. Its rotating spike mechanism accommodates movement caused by thermal expansion, while providing secure locking that is resistant to external attack. With optional accessories, the V09 can also be used on sectional doors and motorised shutters.

Technical Data

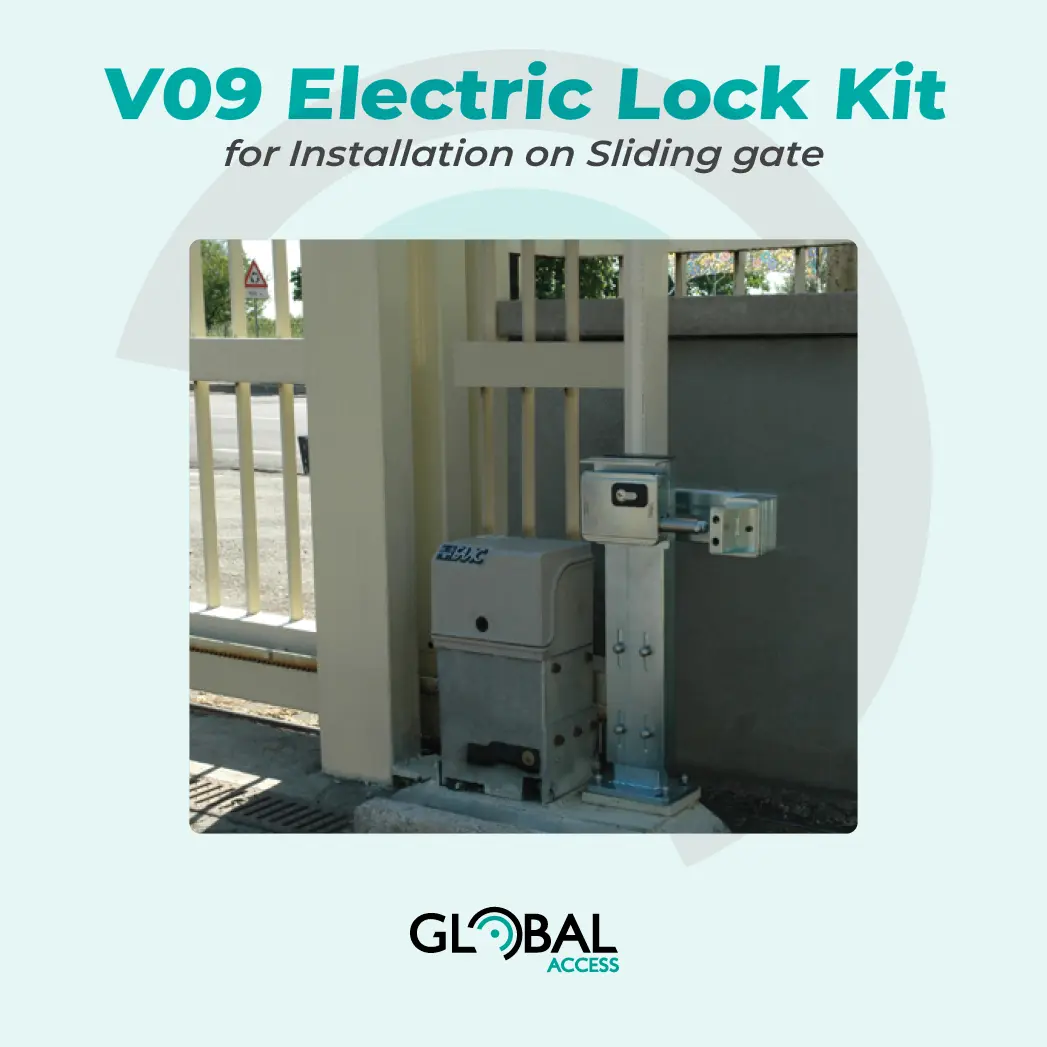

• Application: Manual and automated sliding gates
• Locking system: Rotating spike
• Thermal expansion tolerance: Up to 9.6 mm
• Power supply: 12 Vac
• Current draw: 1.25 A
• Backset: 50 mm
• Operation: Electrical or key-operated
• Installation: Horizontal or vertical
• Construction: Weather-resistant for outdoor installation
• Additional applications: Sectional doors and motorised shutters with optional installation accessories
