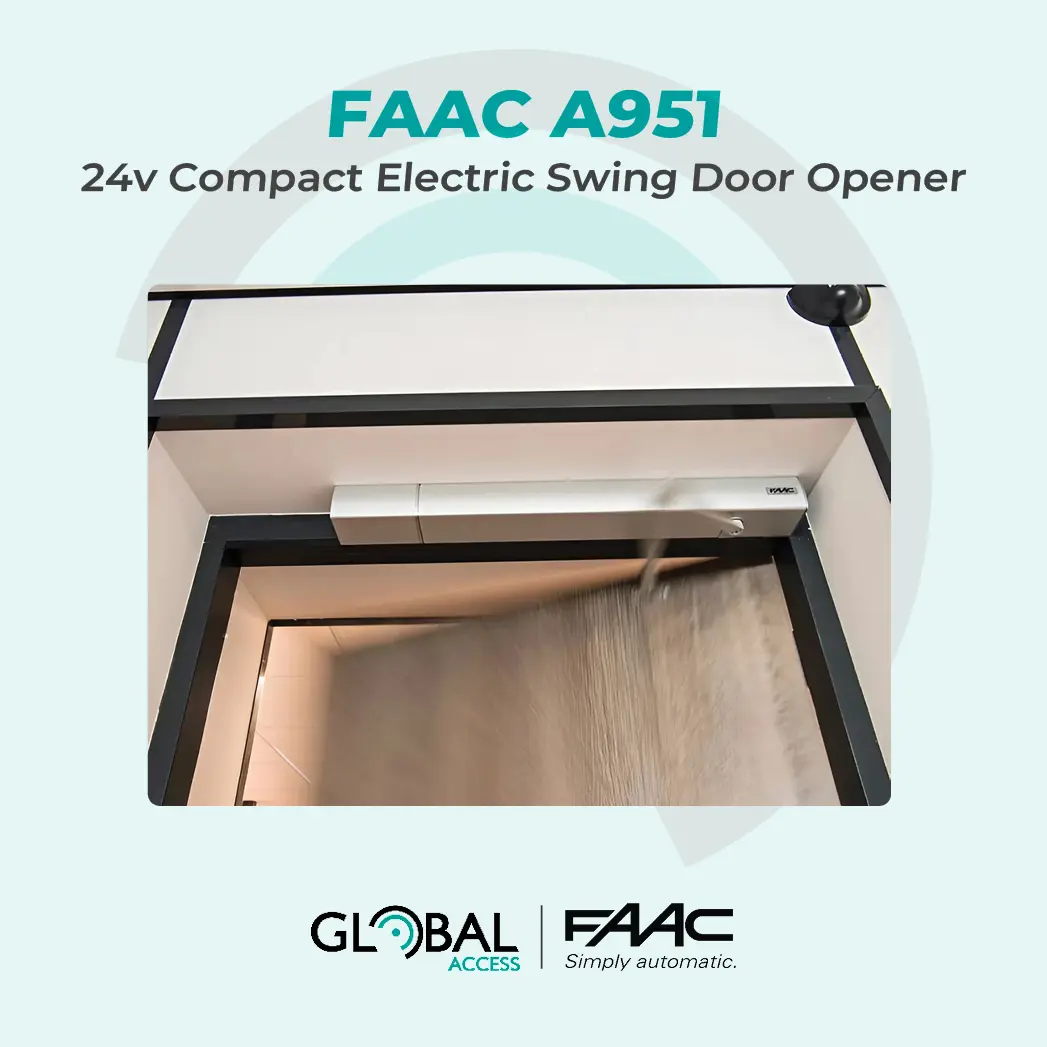

FAAC A951 24v Compact Electric Swing Door Opener

The FAAC A951 24V Door Opener is for use on internal doors only, and offers Silent and smooth operation.

• Versatile and Stylish for indoor use only
• Operating Logics: Automatic, Manual and Night Mode
• Self learning of open & closed positions
• Optional Backup Battery available (1006-0006)
• Anti-crushing safety device for opening and closing
• Manual operation in case of power failure
• Anti-Vandal System to protect the motor if the leaf movement is forced
• Adjustment trimmer for opening, closing speed and pause time
• IP23 (for internal use only)
• 100% Duty Cycle
• Max. 100W Power, 25NM, 5W Standby
• 4 to 10s (Adjustable) opening/closing 0-30s pause time
• Built-in encoder standard

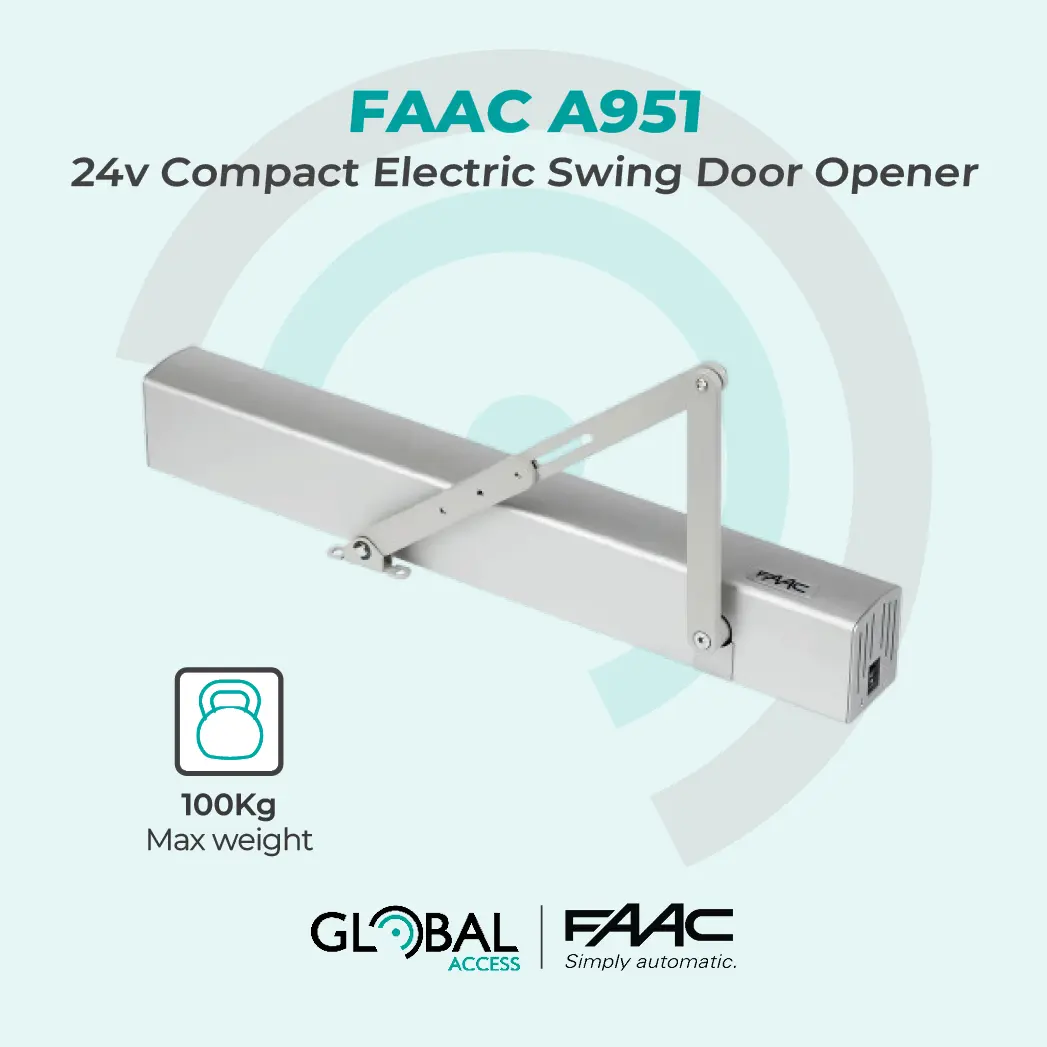

• Max. 100Kg 1.1m Wide Leaf (articulated Arm)
• Max. leaf opening: 100°-125°
• Allows users to easily open doors with the push of a button
• The A951 can be installed onto lintels and directly onto a door frame, offering fantastic flexibility and ease of installation
• Double-door entrances can be automated via a master and slave configuration!
• Manufactured in compliance with standard: EN160005
• Operator weights 7Kg

KITS INCLUDE:
A951 Motor, Control board, Integrated magnetic encoder, Articulated arm

OPTIONAL EXTRAS:
• Backup Battery for emergency egress
• Articulated Pushing Arm
• Standard Sliding Gate Arm
• 80mm H Shaft Extension Arm
• LK EVO Function Selector
