Vehicle Detector Exit Puck – Available in a Wired or Wireless Variation, a fantastic alternative to the traditional loop detector!

Please read the corresponding information for each item below.

WIRED PUCK SOLUTION:-

Simple exit system to automatically open your gate, no need to use a remote or pushty-button!

• One model, less confusion

• Works with ALL operators
• Self-contained system
• Conduit-ready housing
• IP68 Enclosure
• Low standby current (30-70 Microamps)
• Alarm current (30-40 Microamps)
• 5-wire electrical connection system, with a 3-wire solution as standard

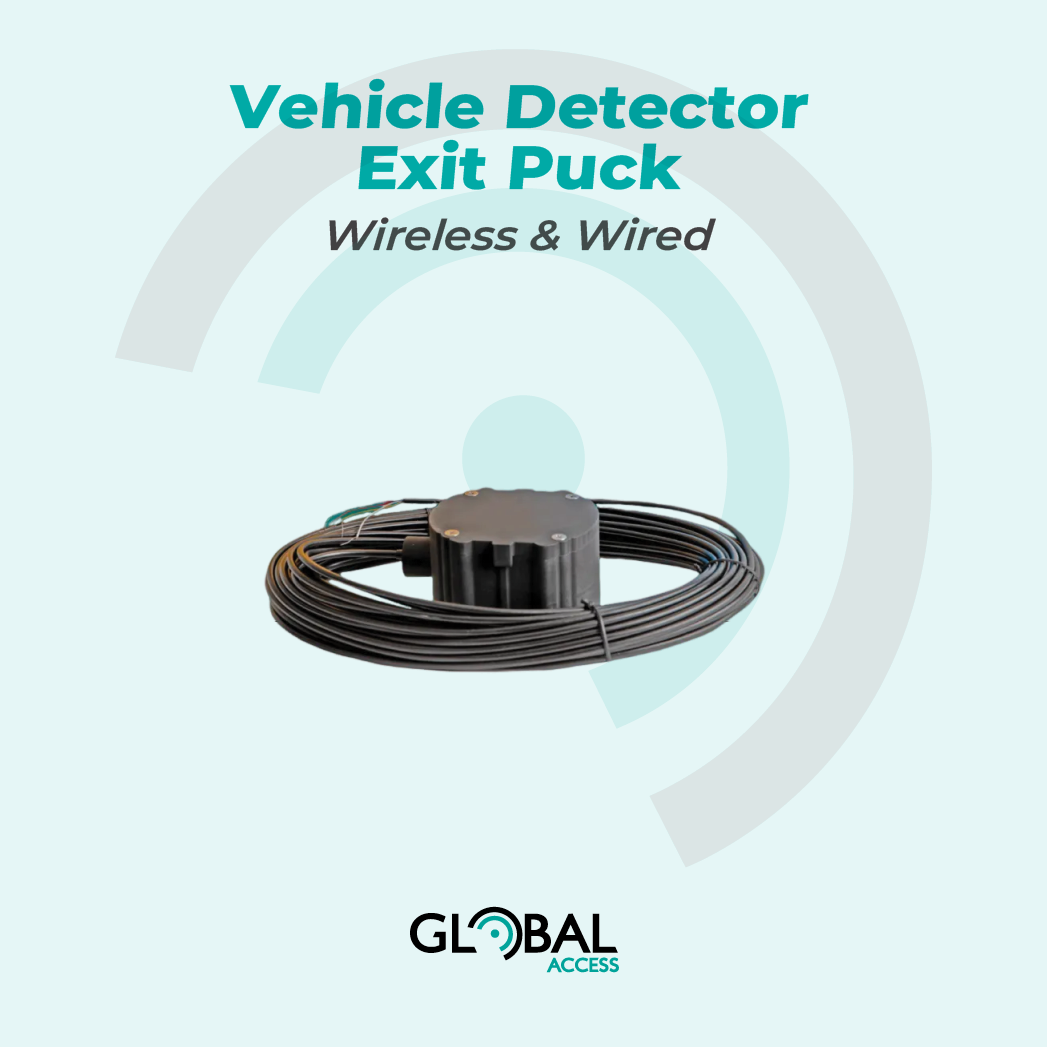

• Comes with 100 feet (approx. 30m) of pre-wired cable

FEATURES:
• When buried, the ‘Puck’ is hidden and vandal proof
• Self-contained with no output board to install
• Lowest stand-by current on market
• Ideal for Solar applications
• AC and DC voltage capable
• Electronics fully encased in polyurethane
• Works with any and all gate operators
• RFI/EMF protection

QUICK OVERVIEW:
• Global Access Puck vehicle detectors are fully enclosed units
• All the electronics are sealed in the sensor probe housing
• There is no external output board to install
• Bury Puck 75-125mm underground at least, 8-10m from gate operator
• Connect up directly to the auxiliary power and exit terminals on the gate operator… easy!

IMPORTANT NOTES:
• Warranty voided if cable is not run in conduit!
• Detector ‘Puck’ is to be buried 75mm – 125mm below surface
• Gate logic needs to be set to auto-close
• Vehicle Speed Must Exceed 8Km/ph
• Relay time; 2-3 seconds

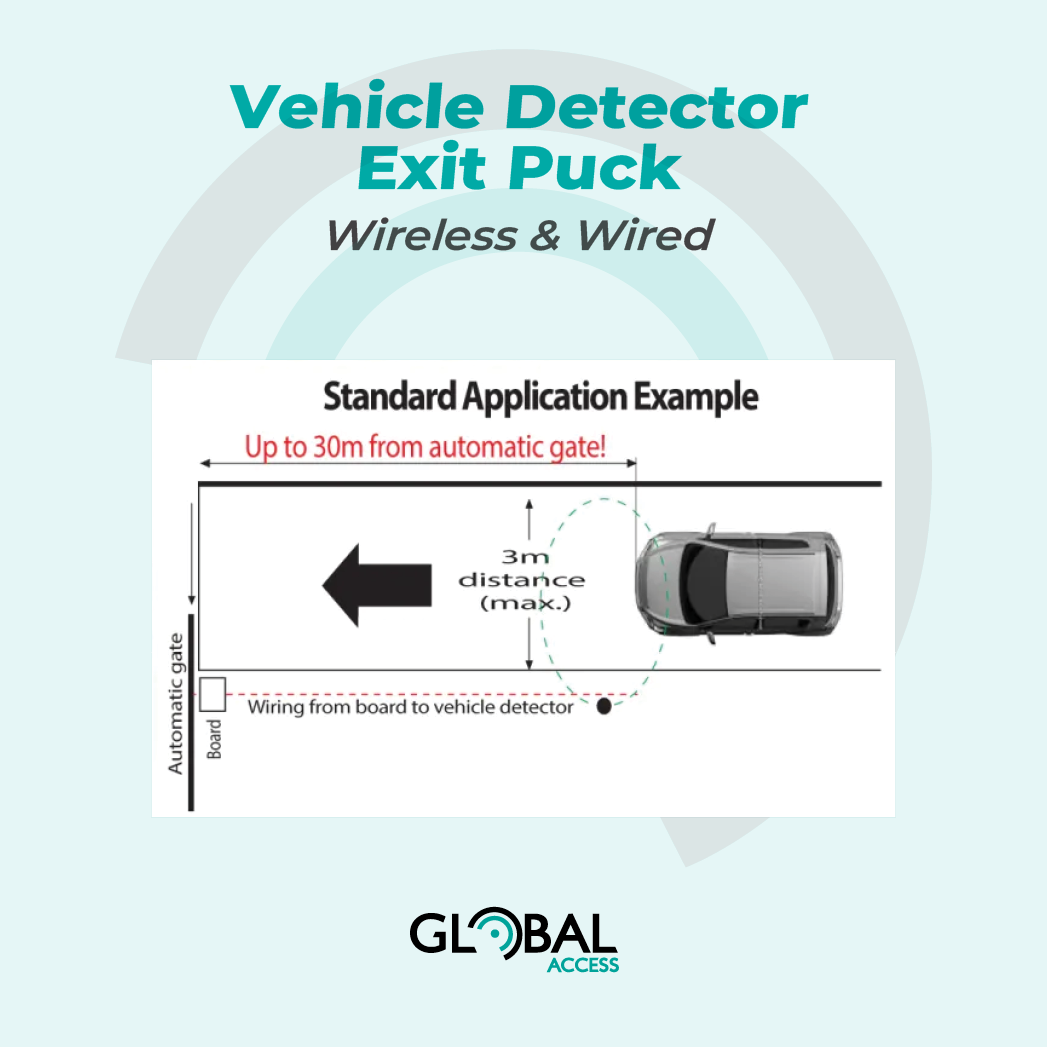

• Install the puck 15-30m from gate operator (ideally no closer than 15m)
• You MUST use a set of photo beams in addition to the Puck for safety reasons
• A Puck MUST NOT BE USED AS A SAFETY DEVICE, is to be used as a trigger only!

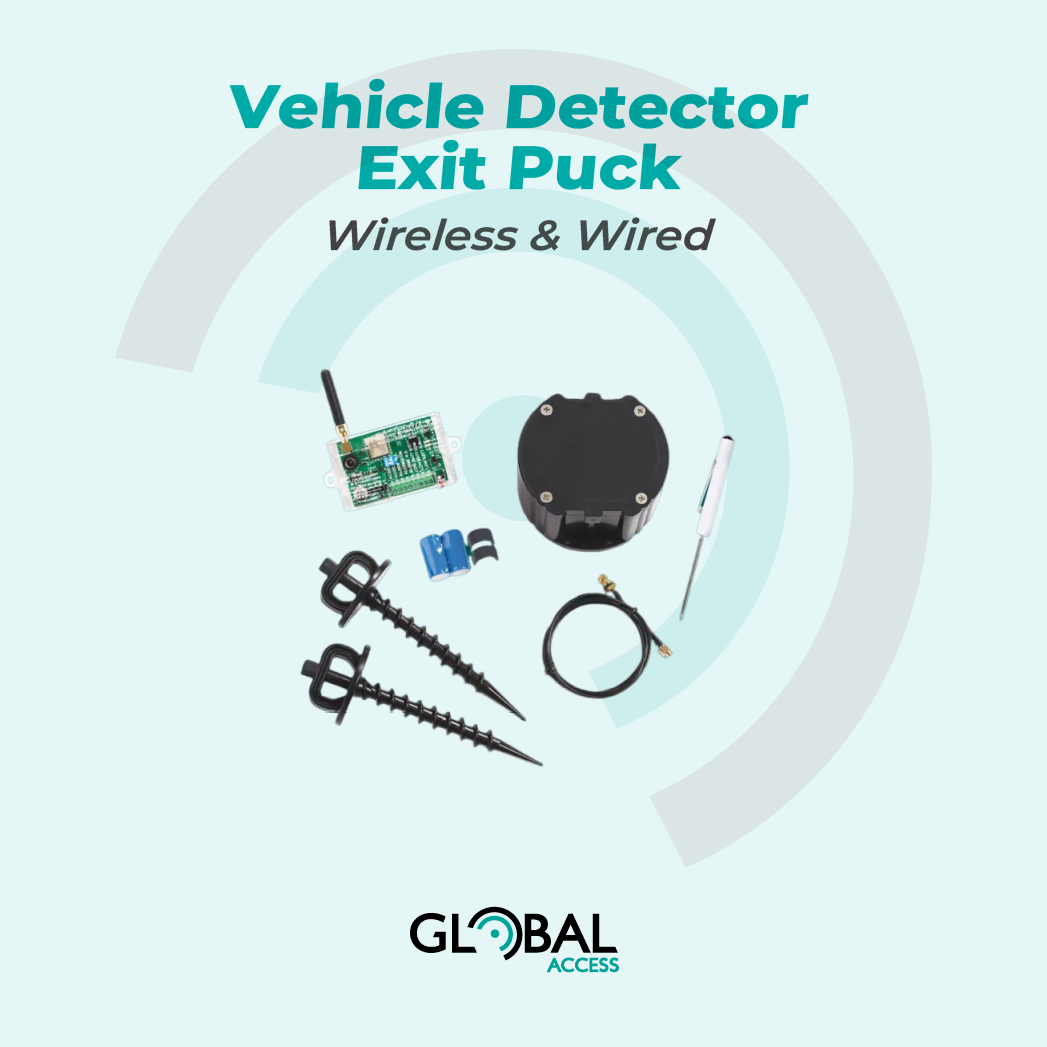

WIRELESS PUCK SOLUTION:-

Simple exit system to automatically open your gate, no need to use a remote or push-button!

• One model, less confusion
• Works with ALL operators
• Self-contained system
• Conduit-ready housing
• IP68 Enclosure
• ‘Integrator’ Low standby current (25 Milliamps)
• ‘Integrator’ Alarm current (40-80 MilliampsA)

FEATURES:
• Being wireless, it makes for a super easy installation!
• The Puck itself is battery powered, and can last around 1-3 years
• Receiver is AC and DC voltage capable
• Electronics fully encased in polyurethane
• Works with any and all gate operators
• RFI/EMF protection

QUICK OVERVIEW:
• Global Access Puck vehicle detectors are fully enclosed units
• All the electronics are sealed in the sensor probe housing
• The wireless receiver must be wired to the motor control board for the puck to work
• Install the wireless puck 15-30m from gate operator (ideally no closer than 15m)
• Connect the wireless receiver directly to the control board exit terminals on the gate operator… easy!

IMPORTANT NOTES:
• Detector ‘Puck’ top casing must not be buried so as to allow for battery replacement
• Gate logic needs to be set to auto-close
• Vehicle Speed Must Exceed 8Km/ph
• Relay time; 2-3 seconds
• You MUST use a set of photo beams in addition to the Puck for safety reasons
• A Puck MUST NOT BE USED AS A SAFETY DEVICE, is to be used as a trigger only!
