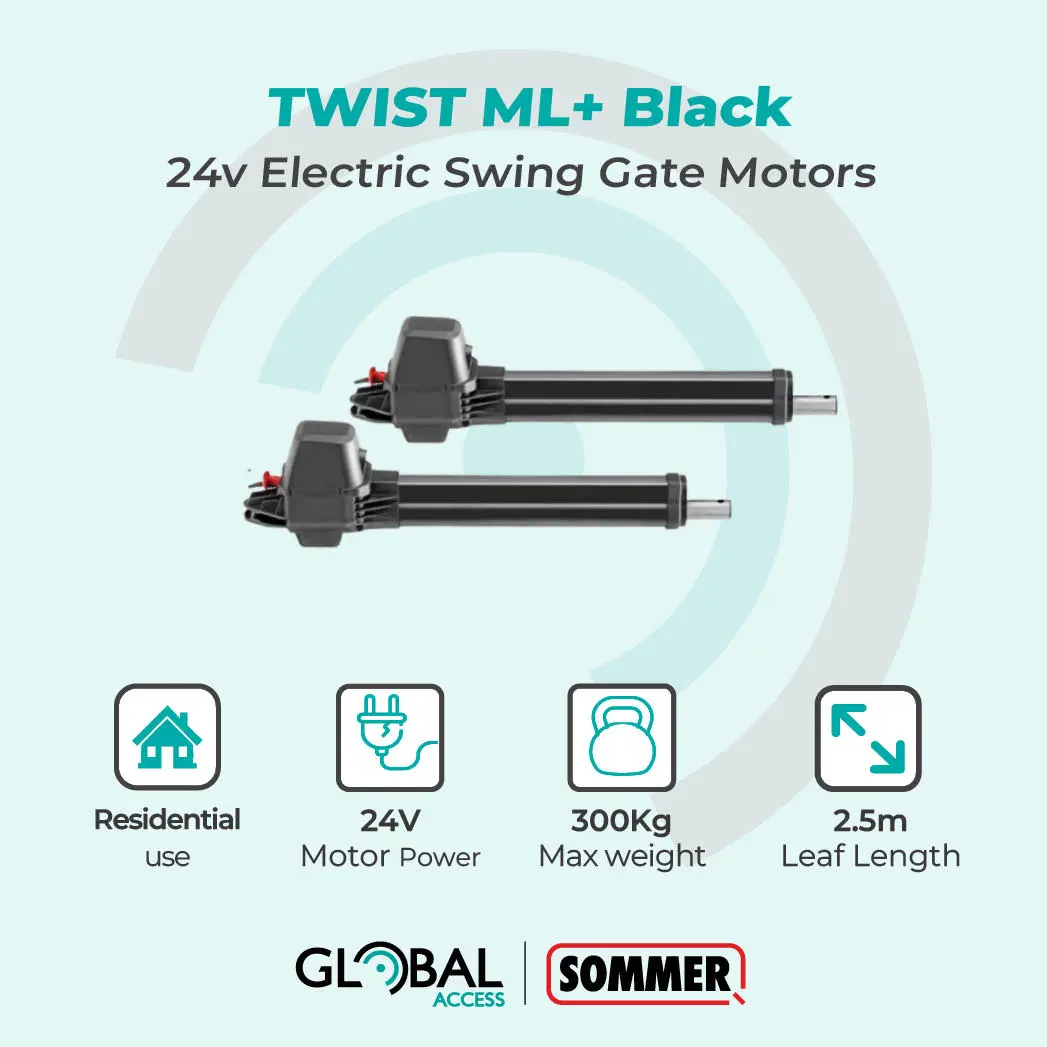

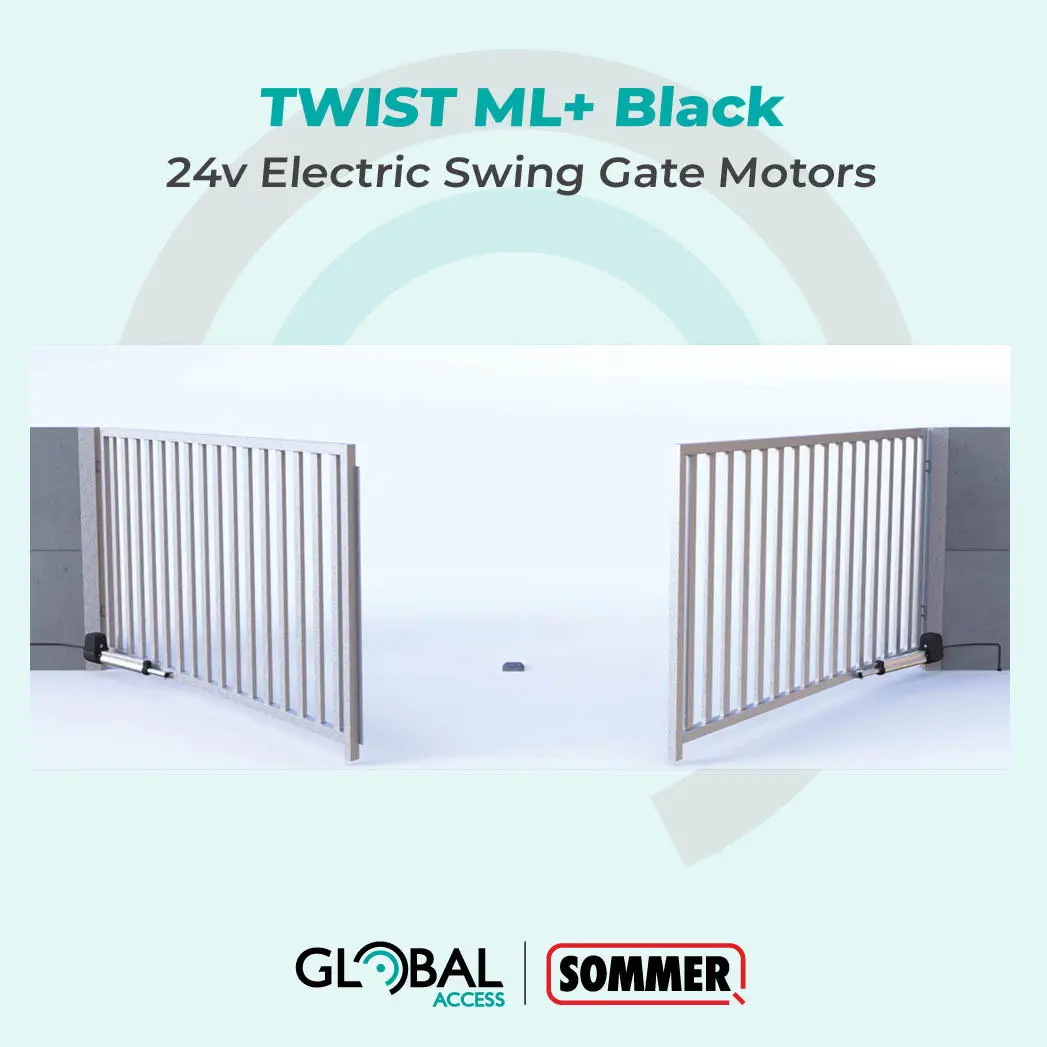

SOMMER TWIST ML+ Black 24v Electric Swing Gate Motors

The SOMMER Twist ML+ Swing Gate Operator is fantastic for use on swing gates with leaves up to 2.5m in length.

• Simple installation and setup
• Powerful, Premium German Quality
• Suitable for low side room, brick piers and out swing applications
• Strong tubular operator with  300-550mm stroke on the ML+
• 1Amp accessory power supply
• Maximum of 130° Opening (ML+)
• Suitable for rising gates (Max. 100Kg @ 2m on a 10% incline)
• Ideal for heavy or wind-loaded gates when sized within the operator’s rated capacity
• Maglock OR Sommer electric lock are the required locking options
• OPTIONAL Backup Battery

IMPORTANT NOTES:
– A physical ground stop is required in the OPEN + CLOSED position

TWIST ML+ (LONG) VARIANTS – Max. 250Kg @ 2m

SINGLE KIT: 1 x 24v TWIST ML+ articulated actuator, 1 x Receiver, 2 x Transmitters, Control Box
SINGLE KIT: 1 x 24v TWIST ML+ articulated actuator, 1 x Receiver, 2 x Transmitters, Control Box, External Transformer
DOUBLE KIT: 2 x 24v TWIST ML+ articulated actuators, 1 x Receiver, 2 x Transmitters, Control Box
DOUBLE KIT: 2 x 24v TWIST ML+ articulated actuators, 1 x Receiver, 2 x Transmitters, Control Box, External Transformer

OPTIONAL ACCESSORIES

5825-0030: 25mm Rear Bracket Spacer for Twist Range
5825-0019: 50mm Rear Bracket Spacer for Twist Range
5825-0020: 100mm Rear Bracket Spacer for Twist Range
5825-0034: 150mm Rear Bracket Spacer for Twist Range
5812-0003: Post Mounting Bracket for Raised Hinges – LEFT
5812-0004: Post Mounting Bracket for Raised Hinges – RIGHT
1612-0010: Extended Adjustable Gate Post Fitting – LEFT

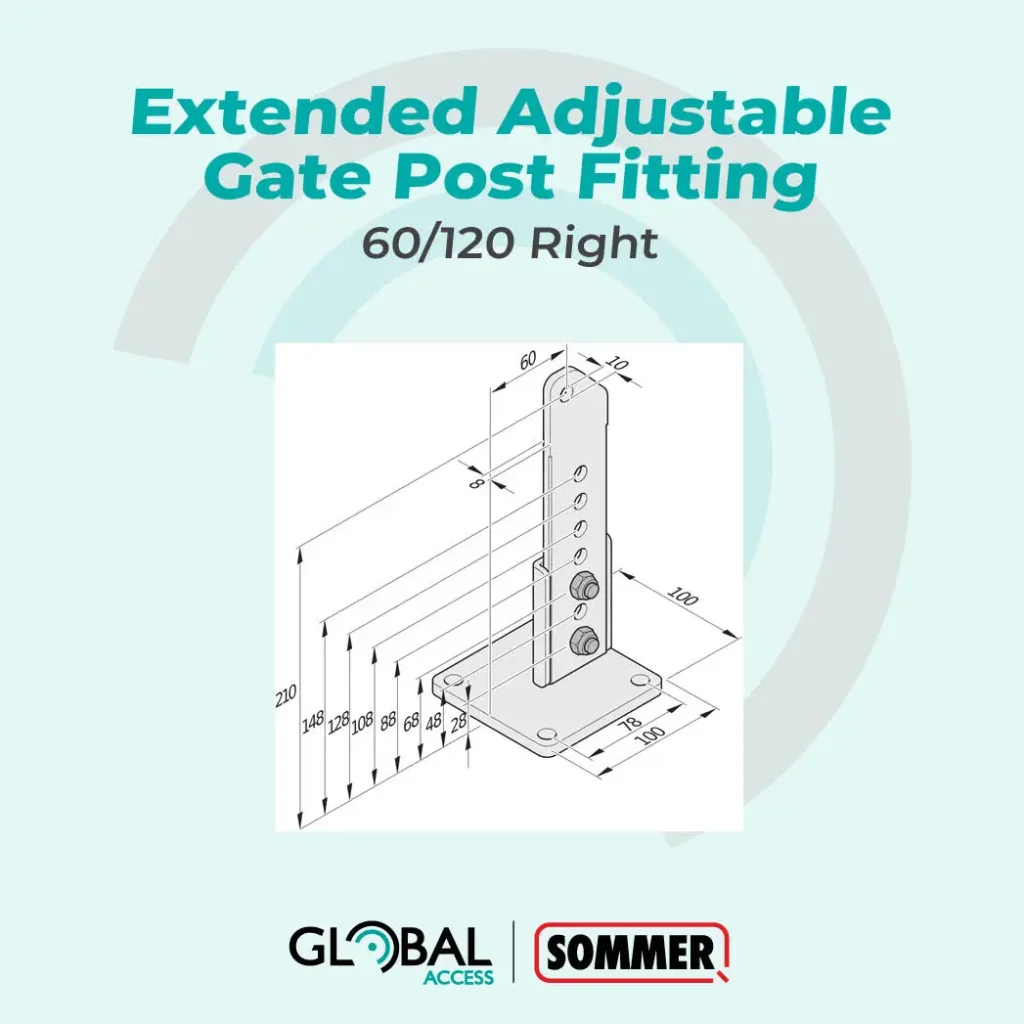

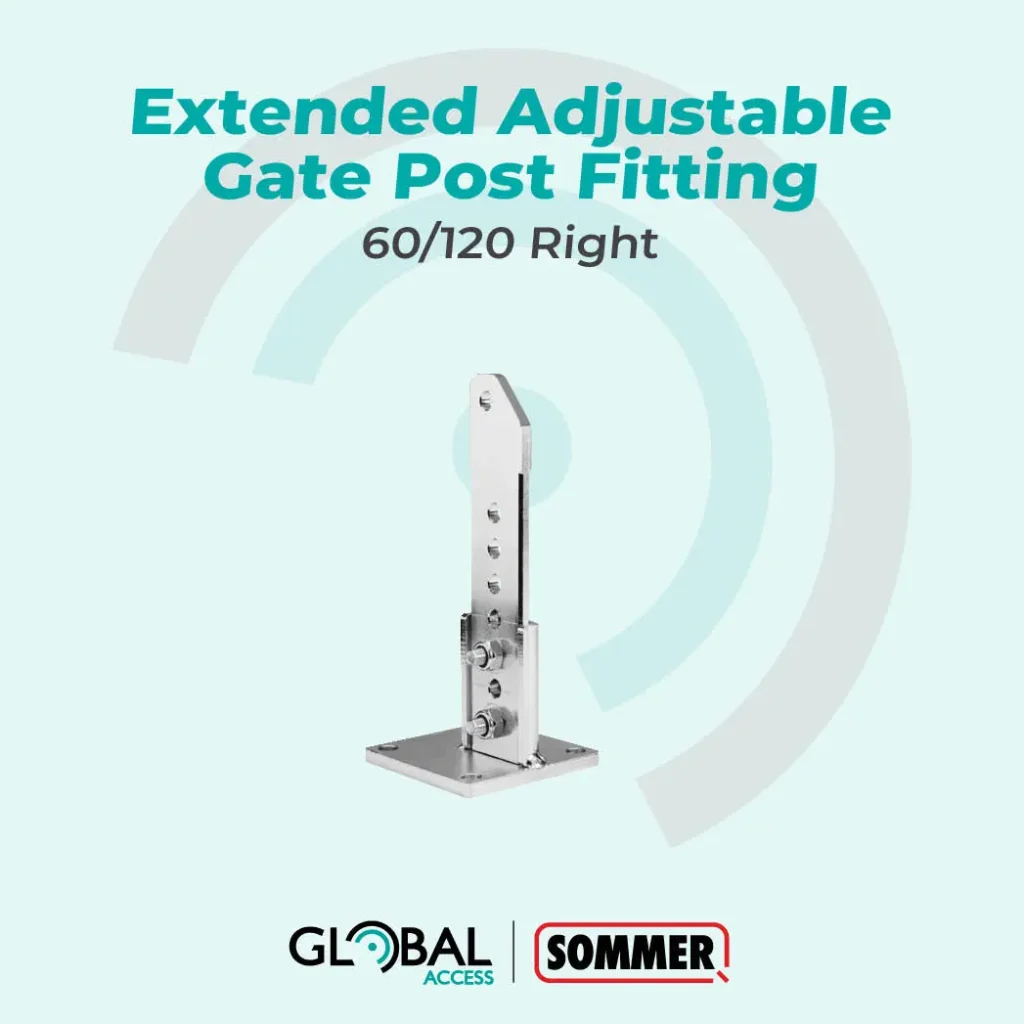

1612-0009: Extended Adjustable Gate Post Fitting – RIGHT
1045-0032: Sommer Electric Lock Kit (24V) with Cylinder + 3 Keys, Side & Floor Mount Incl.
6066-0021: Lumi LED Stick for Twist M+ ML+- Mounts to bottom of Operator
