Voltage:
Application:
Wind Loading:
Solar Suitability:
Backup Battery Option:
Dimensions:
Max Gate Weight:
Max Leaf Length:
Max Speed:
Incline:
Frequency (Duty Cycle):
Welding Required:
Country:

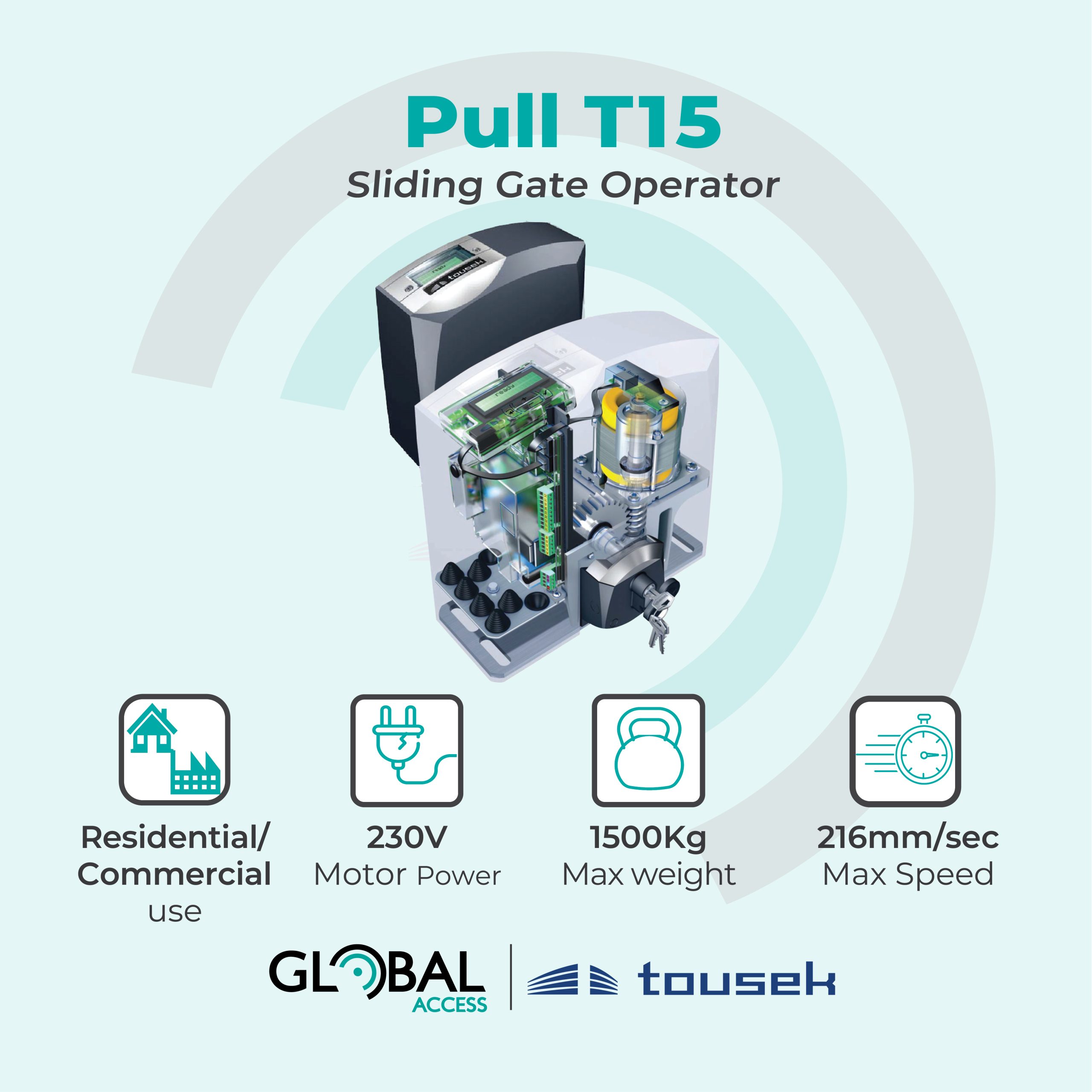

The TOUSEK Pull T15 230V is a premium European-engineered sliding gate operator designed for demanding residential, commercial and industrial applications. Manufactured in Austria, the Pull T15 combines intelligent control technology, precision engineering and an exceptionally robust oil-bath gearbox to deliver outstanding reliability and long-term performance.
Designed for gates weighing up to 1,500 kg, the Pull T15 maintains exceptional torque throughout operation, providing smooth and consistent gate movement without sacrificing power at lower operating speeds.
The Pull T series has been developed with both installers and end users in mind. Advanced self-learning technology automatically determines the gate’s travel limits, eliminating the need for mechanical limit switches while simplifying installation and reducing maintenance requirements.
A large illuminated LCD display allows quick access to programming and diagnostic functions, while adjustable soft-start and soft-stop functions, obstacle detection and automatic reversal provide enhanced safety and smooth operation.
The Pull T15 range is also available in a belt-drive configuration, providing installers with an additional solution for applications where quieter operation or alternative drive arrangements are preferred.
The Pull T15 has been designed to withstand demanding operating conditions while delivering smooth and dependable performance. Its precision-machined steel gears operate within a sealed oil-bath gearbox, reducing friction, minimising wear and extending the life of critical components.
Unlike conventional gate operators, the Pull T15 retains excellent torque characteristics even when operating at lower speeds, ensuring reliable performance across a broad range of gate sizes and applications.

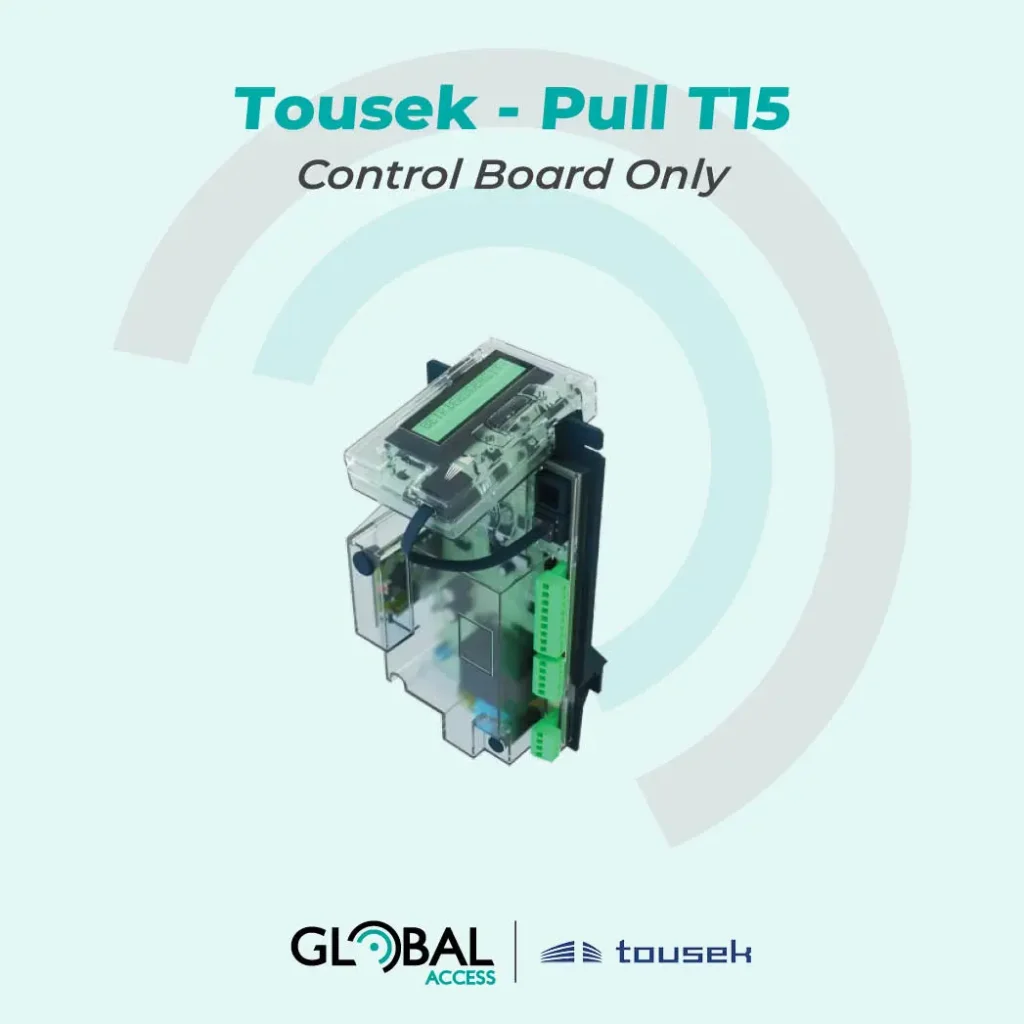

Programming and commissioning are simplified through the integrated control system and illuminated LCD display. The operator continuously monitors gate movement while the automatic reversal system helps protect the gate, operator and surrounding area.

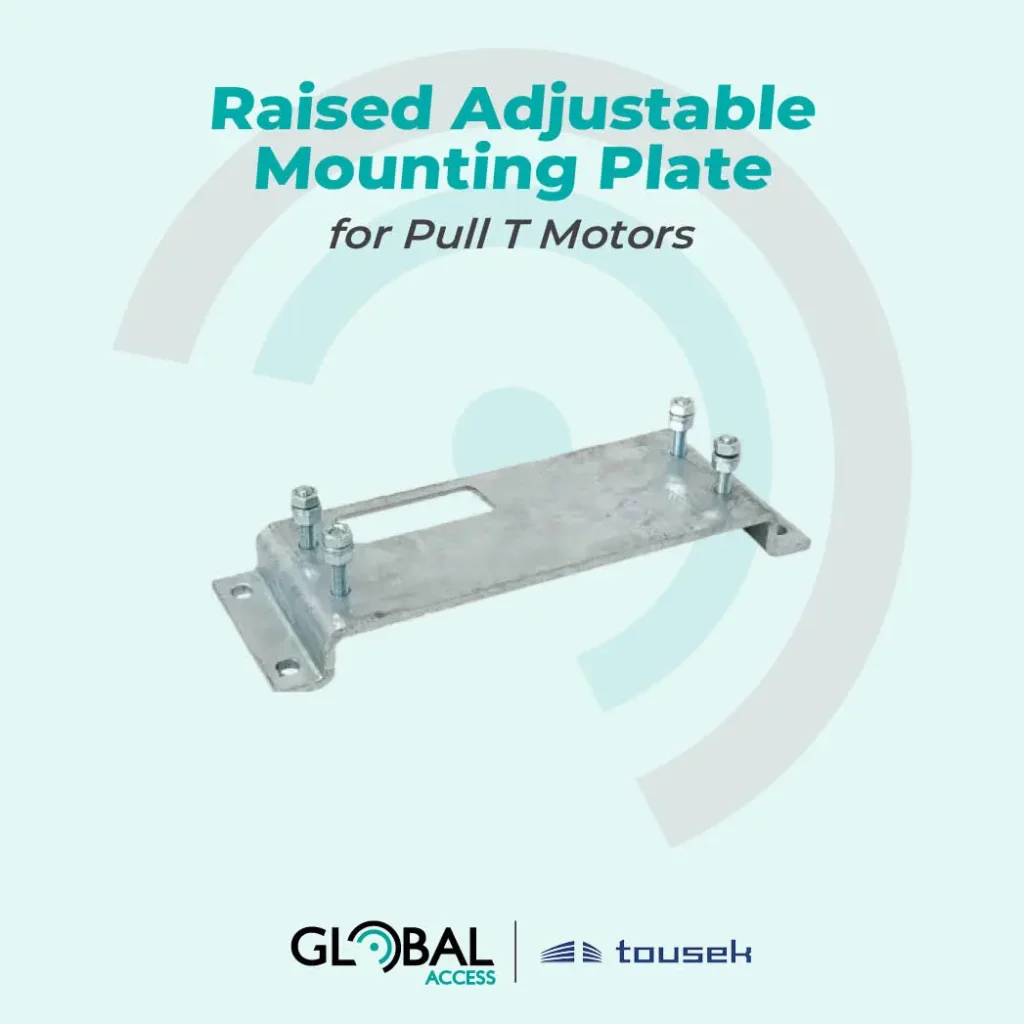

The included adjustable mounting base plate provides greater installation flexibility and allows installers to achieve accurate alignment quickly and efficiently.
| Part Number | Configuration | Maximum Gate Weight | Maximum Speed |
|---|---|---|---|
| 1556-0027 | Z16 pinion | 1,500 kg | 150 mm/s |
| 1556-0018 | Z20 pinion | 1,200 kg | 183 mm/s |
| 1556-0014 | Master (Z20) | 1,200 kg | 183 mm/s |
| 1556-0015 | Slave (Z20) | 1,200 kg | 183 mm/s |
| 1556-0023 | Z24 pinion | 1,000 kg | 216 mm/s |
| 1556-0024 | Master (Z24) | 1,000 kg | 216 mm/s |
| 1556-0025 | Slave (Z24) | 1,000 kg | 216 mm/s |
| 1556-0028 | Belt-drive configuration | 1,200 kg | 183 mm/s |
| 1556-0029 | Z16 master and slave kit | 1,500 kg | 150 mm/s |
| 1556-0034 | Z20 master and slave kit | 1,200 kg | 183 mm/s |
| 1556-0035 | Z24 master and slave kit | 1,000 kg | 216 mm/s |
High-Speed Operation
Fast gate movement delivers quicker opening and closing for efficient access.
Clear Display
Integrated display keeps important settings and operating information clearly in view.
Tempered Steel Gearing
Robust tempered steel gears provide strength, durability and reliable long-term operation.
